Toyota Lexus SC430
2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States
Discontinued model
Data version 2011-01
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

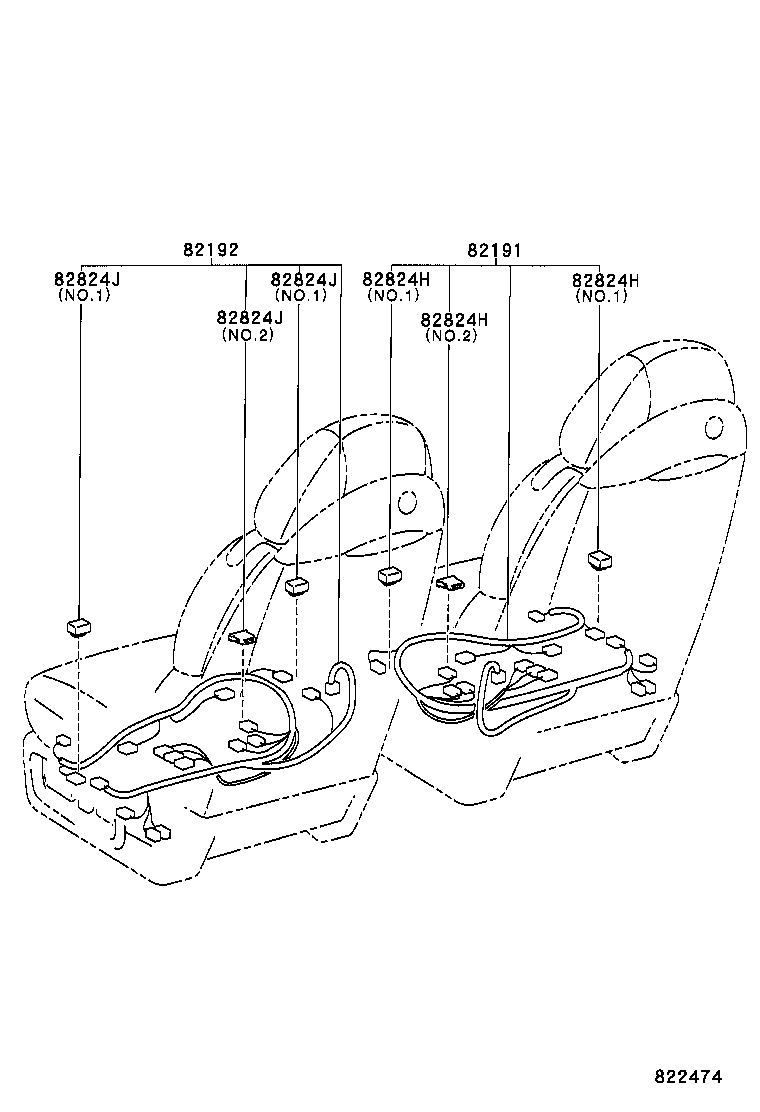

| 82191 — Wire, Front Seat, RH | ||||
| 82191-24130 |
Wire, Front Seat, RH
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82191-24140 note |
Wire, Front Seat, RH
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82191-24130 |
Wire, Front Seat, RH
2005-08 → 2006-08
ended
|
UZZ40 | — | |
| 82191-24140 note |
Wire, Front Seat, RH
2005-08 → 2006-08
ended
|
UZZ40 | — | |
| 82191-24141 note |
Wire, Front Seat, RH
2006-08 → —
|
UZZ40 | — | |
| 82191-24170 |
Wire, Front Seat, RH
2006-08 → —
|
UZZ40 | — | |
| 82192 — Wire, Front Seat, LH | ||||
| 82192-24030 |
Wire, Front Seat, LH
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82192-24140 note |
Wire, Front Seat, LH
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82192-24030 |
Wire, Front Seat, LH
2005-08 → 2006-08
ended
|
UZZ40 | — | |
| 82192-24140 note |
Wire, Front Seat, LH
2005-08 → 2006-08
ended
|
UZZ40 | — | |
| 82192-24141 |
Wire, Front Seat, LH
2006-08 → —
|
UZZ40 | — | |
| 82824H — Connector, Wiring Harness | ||||
| 82824-22070 note |
Connector, Wiring Harness
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82824-24040 note |
Connector, Wiring Harness
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82824-22070 note |
Connector, Wiring Harness
2005-08 → —
|
UZZ40 | — | |
| 82824-24040 note |
Connector, Wiring Harness
2005-08 → —
|
UZZ40 | — | |
| 82824J — Connector, Wiring Harness | ||||
| 82824-22070 note |
Connector, Wiring Harness
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82824-24040 note |
Connector, Wiring Harness
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82824-22070 note |
Connector, Wiring Harness
2005-08 → —
|
UZZ40 | — | |
| 82824-24040 note |
Connector, Wiring Harness
2005-08 → —
|
UZZ40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
