Toyota Lexus SC430
2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States
Discontinued model
Data version 2011-01

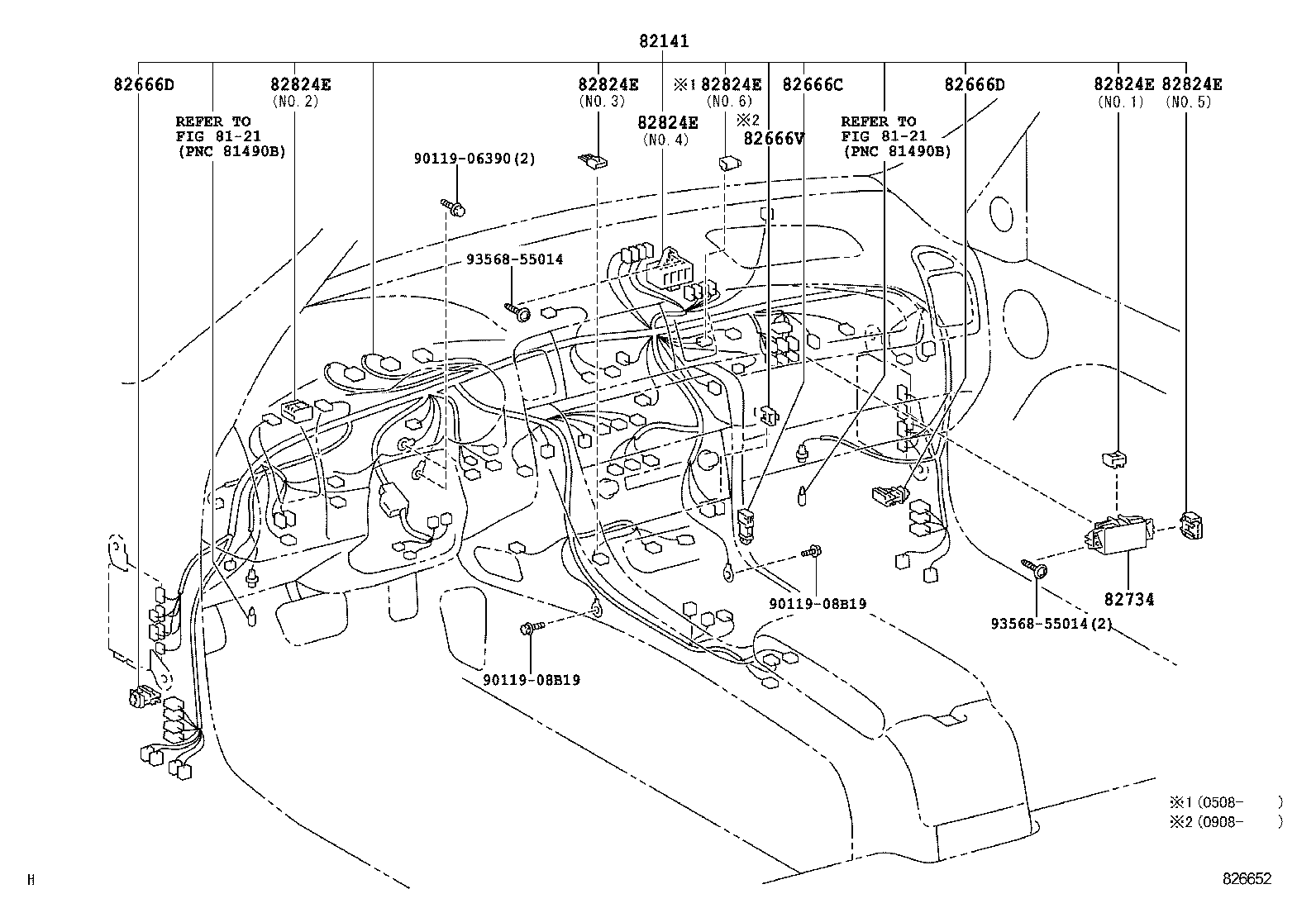

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-24140 |
Wire, Instrument Panel
2001-01 → 2004-08
ended
|
UZZ40 5FC | — | |
| 82141-24610 note |
Wire, Instrument Panel
2001-01 → 2004-08
ended
|
UZZ40 5FC | — | |
| 82141-24611 |
Wire, Instrument Panel
2004-08 → 2005-08
ended
|
UZZ40 | — | |
| 82141-24620 note |
Wire, Instrument Panel
2001-01 → 2004-08
ended
|
UZZ40 5FC | — | |
| 82141-24621 note |
Wire, Instrument Panel
2004-08 → 2005-08
ended
|
UZZ40 | — | |
| 82141-24690 note |
Wire, Instrument Panel
2004-08 → 2005-08
ended
|
UZZ40 | — | |
| 82141-24622 |
Wire, Instrument Panel
2005-08 → 2006-08
ended
|
UZZ40 | — | |
| 82141-24623 |
Wire, Instrument Panel
2006-08 → 2007-08
ended
|
UZZ40 | — | |
| 82141-24624 |
Wire, Instrument Panel
2007-08 → 2008-08
ended
|
UZZ40 | — | |
| 82141-24625 |
Wire, Instrument Panel
2008-08 → 2009-08
ended
|
UZZ40 | — | |
| 82141-24625 note |
Wire, Instrument Panel
2009-08 → —
|
UZZ40 | — | |
| 82141-24660 |
Wire, Instrument Panel
2009-08 → —
|
UZZ40 | — | |
| 82141-24691 note |
Wire, Instrument Panel
2005-08 → 2006-08
ended
|
UZZ40 | — | |
| 82141-24692 note |
Wire, Instrument Panel
2006-08 → 2007-08
ended
|
UZZ40 | — | |
| 82141-24693 note |
Wire, Instrument Panel
2007-08 → 2008-08
ended
|
UZZ40 | — | |
| 82141-24694 note |
Wire, Instrument Panel
2008-08 → —
|
UZZ40 | — | |
| 82666C — Holder, Connector NO.4 | ||||
| 82666-20270 |
Holder, Connector NO.4
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82666-20270 |
Holder, Connector NO.4
2005-08 → —
|
UZZ40 | — | |
| 82666D — Holder, Connector NO.5 | ||||
| 82666-42020 |
Holder, Connector NO.5
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82666-42020 |
Holder, Connector NO.5
2005-08 → —
|
UZZ40 | — | |
| 82666V — Holder, Connector NO.15 | ||||
| 82666-21040 |
Holder, Connector NO.15
2009-08 → —
|
UZZ40 | — | |
| 82734 — Block, Center Junction | ||||
| 82734-24010 |
Block, Center Junction
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82734-24010 |
Block, Center Junction
2005-08 → —
|
UZZ40 | — | |
| 82824E — Connector, Wiring Harness | ||||
| 82824-20110 note |
Connector, Wiring Harness
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82824-28180 note |
Connector, Wiring Harness
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82824-30130 note |
Connector, Wiring Harness
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82824-30210 note |
Connector, Wiring Harness
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82824-30220 note |
Connector, Wiring Harness
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82824-20110 note |
Connector, Wiring Harness
2005-08 → —
|
UZZ40 | — | |
| 82824-28180 note |
Connector, Wiring Harness
2005-08 → —
|
UZZ40 | — | |
| 82824-30130 note |
Connector, Wiring Harness
2005-08 → —
|
UZZ40 | — | |
| 82824-30210 note |
Connector, Wiring Harness
2005-08 → —
|
UZZ40 | — | |
| 82824-30220 note |
Connector, Wiring Harness
2005-08 → —
|
UZZ40 | — | |
| 82824-52080 note |
Connector, Wiring Harness
2005-08 → —
|
UZZ40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
