Toyota Lexus SC430
2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States
Discontinued model
Data version 2011-01

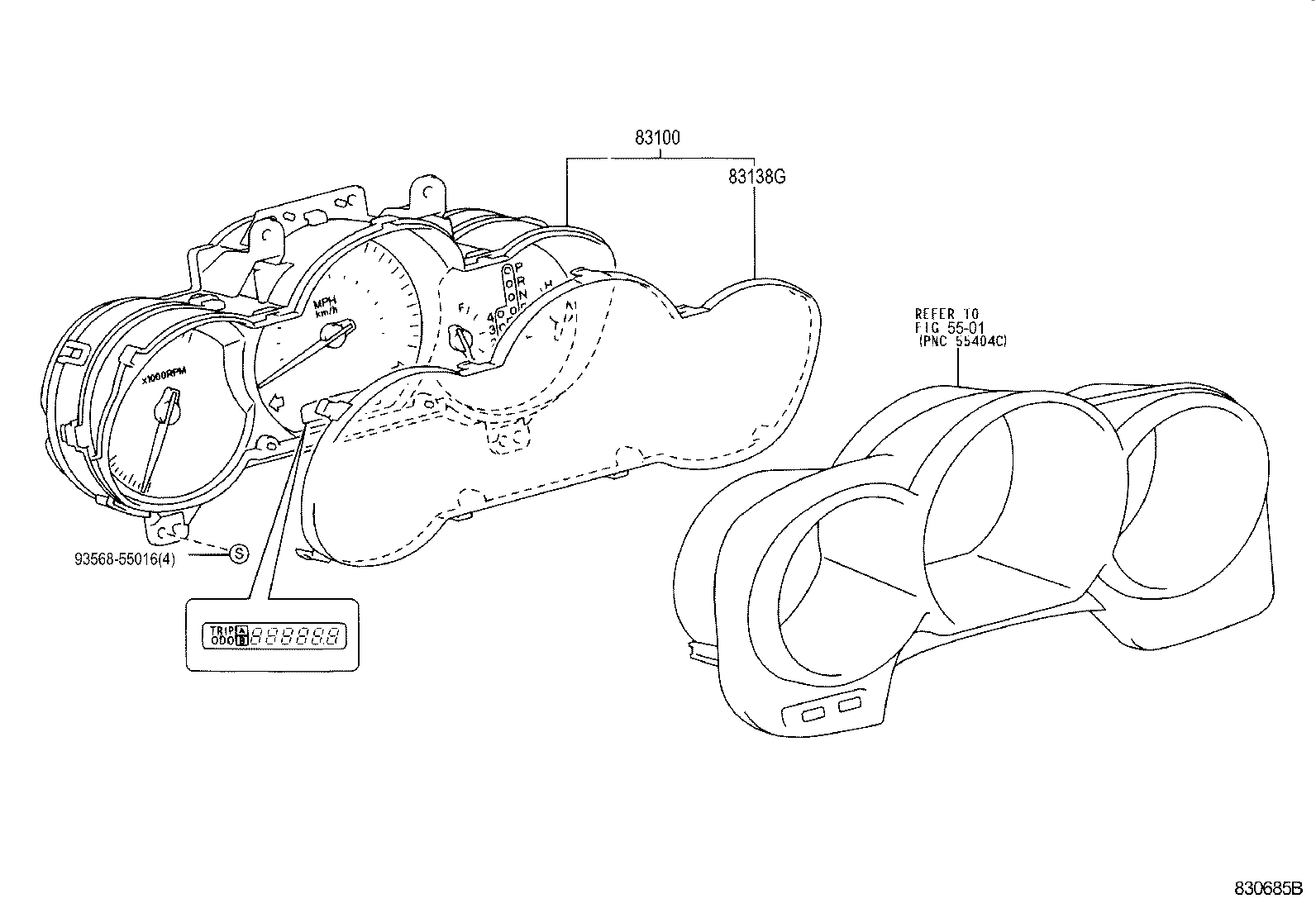

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-24120 note |
Meter Assy, Combination
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 83800-24130 note |
Meter Assy, Combination
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 83800-24160 note |
Meter Assy, Combination
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 83800-24210 note |
Meter Assy, Combination
2002-01 → 2005-08
ended
|
UZZ40 | — | |
| 83800-24230 |
Meter Assy, Combination
2005-08 → 2006-08
ended
|
UZZ40 | — | |
| 83800-24240 note |
Meter Assy, Combination
2005-08 → 2006-08
ended
|
UZZ40 | — | |
| 83800-24250 note |
Meter Assy, Combination
2005-08 → 2006-08
ended
|
UZZ40 | — | |
| 83800-24330 |
Meter Assy, Combination
2006-08 → 2007-08
ended
|
UZZ40 | — | |
| 83800-24340 note |
Meter Assy, Combination
2006-08 → 2007-08
ended
|
UZZ40 | — | |
| 83800-24350 note |
Meter Assy, Combination
2006-08 → 2007-08
ended
|
UZZ40 | — | |
| 83800-24430 |
Meter Assy, Combination
2007-08 → 2010-07
ended
|
UZZ40 | — | |
| 83800-24440 note |
Meter Assy, Combination
2007-08 → 2010-07
ended
|
UZZ40 | — | |
| 83800-24450 note |
Meter Assy, Combination
2007-08 → 2010-07
ended
|
UZZ40 | — | |
| 83138G — Glass, Combination Meter | ||||
| 83852-24120 |
Glass, Combination Meter
2001-01 → 2001-04
ended
|
UZZ40 5FC | — | |
| 83852-24121 |
Glass, Combination Meter
2001-04 → 2005-08
ended
|
UZZ40 | — | |
| 83852-24230 |
Glass, Combination Meter
2005-08 → 2010-07
ended
|
UZZ40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
