Toyota Lexus SC430

2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States

Discontinued model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 2 illustrations

Illustrations

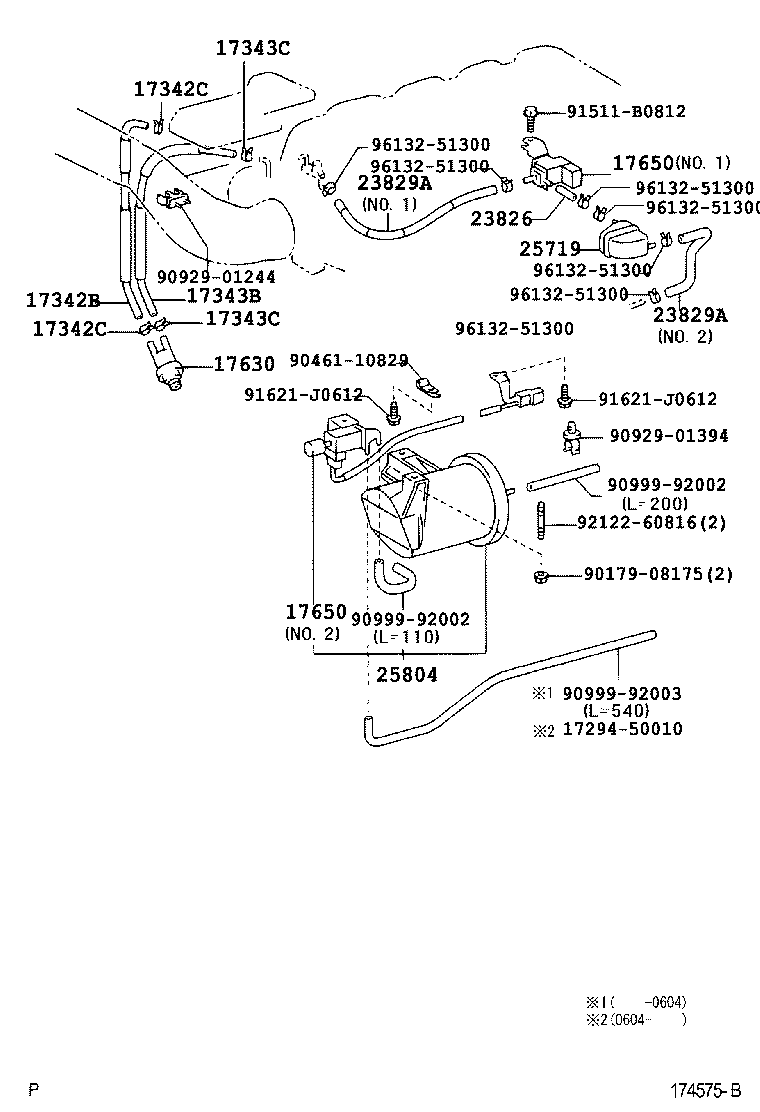

Figure 172790E 172790E 2001-01 → 2005-08 Figure 174575B 174575B 2005-08 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23818 Pipe, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23829A Hose, Fuel Vapor Feed
25719 Tank, Vacuum Surge
25804 Valve Set, Vacuum Control
77739 Valve, Evap Service Port
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
