Toyota Lexus SC430
2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States
Discontinued model
Data version 2011-01

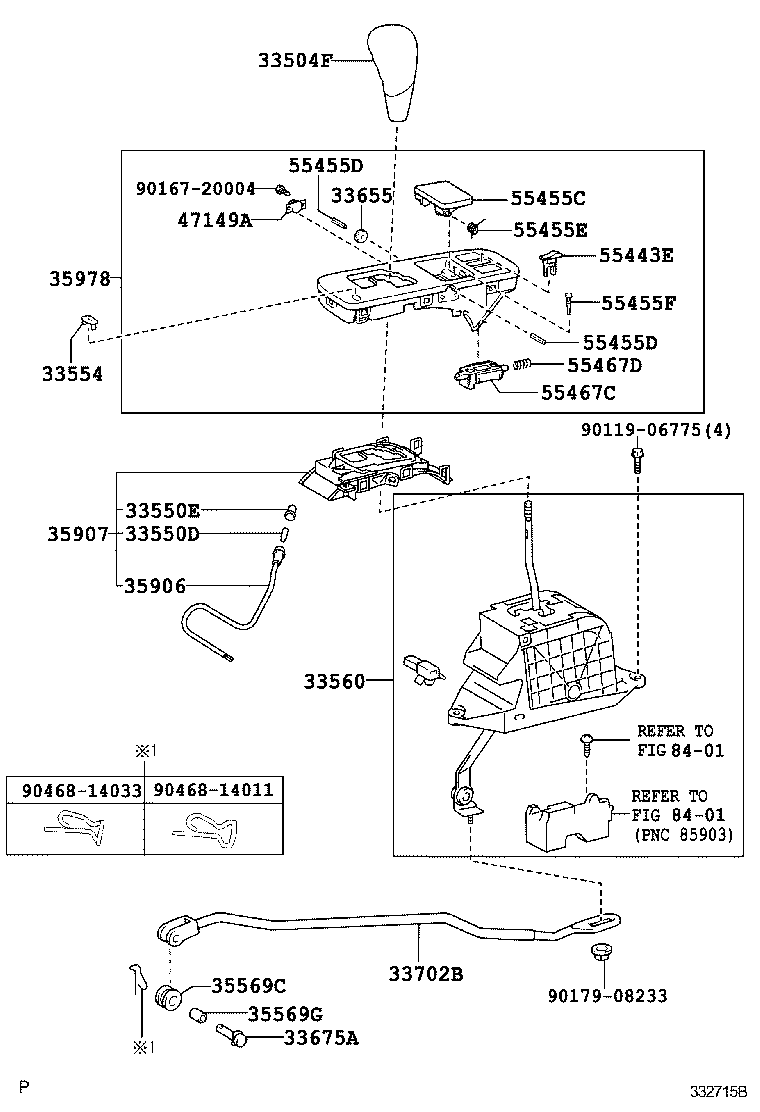

Shift Lever & Retainer
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33550 | Floor Shift Assy, Transmission |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33554 | Cap, Shift Lever |
| 33560 | Unit Assy, Shift Lock Control |
| 33655 | Gear, Shift Lever, NO.1 |
| 33675A | Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) |
| 33702B | Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT) |
| 35469L | Spacer, Shift Lever |
| 35569C | Grommet (FOR TRANSMISSION CONTROL ROD) |
| 35569G | Bush (FOR TRANSMISSION CONTROL ROD) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35906A | Housing, Connector Male (FOR INDICATOR LAMP WIRE) |
| 35907 | Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT) |
| 35978 | Indicator, Shift Position |
| 47149A | Damper, Return Spring |
| 55443E | Knob, Shift Position Indicator |
| 55455C | Panel, Coin Box, NO.1 |
| 55455D | Pin, Straight |
| 55455E | Spring, Torsion(FOR COIN BOX PANEL) |
| 55455F | Pin, Straght(FOR COIN BOX PANEL) |
| 55467C | Lock, Coin Box |
| 55467D | Spring, Compression(FOR COIN BOX LOCK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
