Toyota Lexus SC430

2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States

Discontinued model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

33 part groups · 3 illustrations

Illustrations

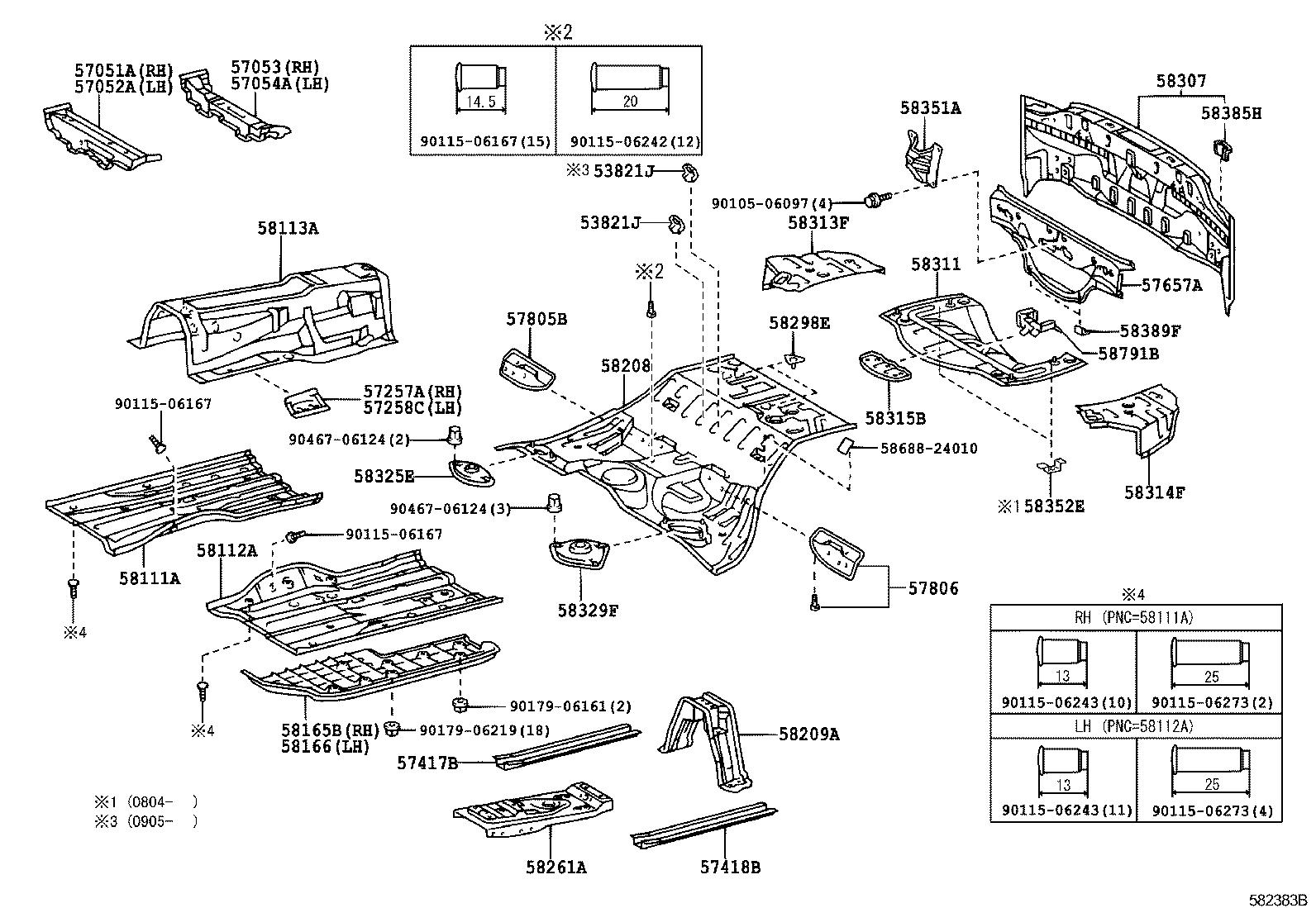

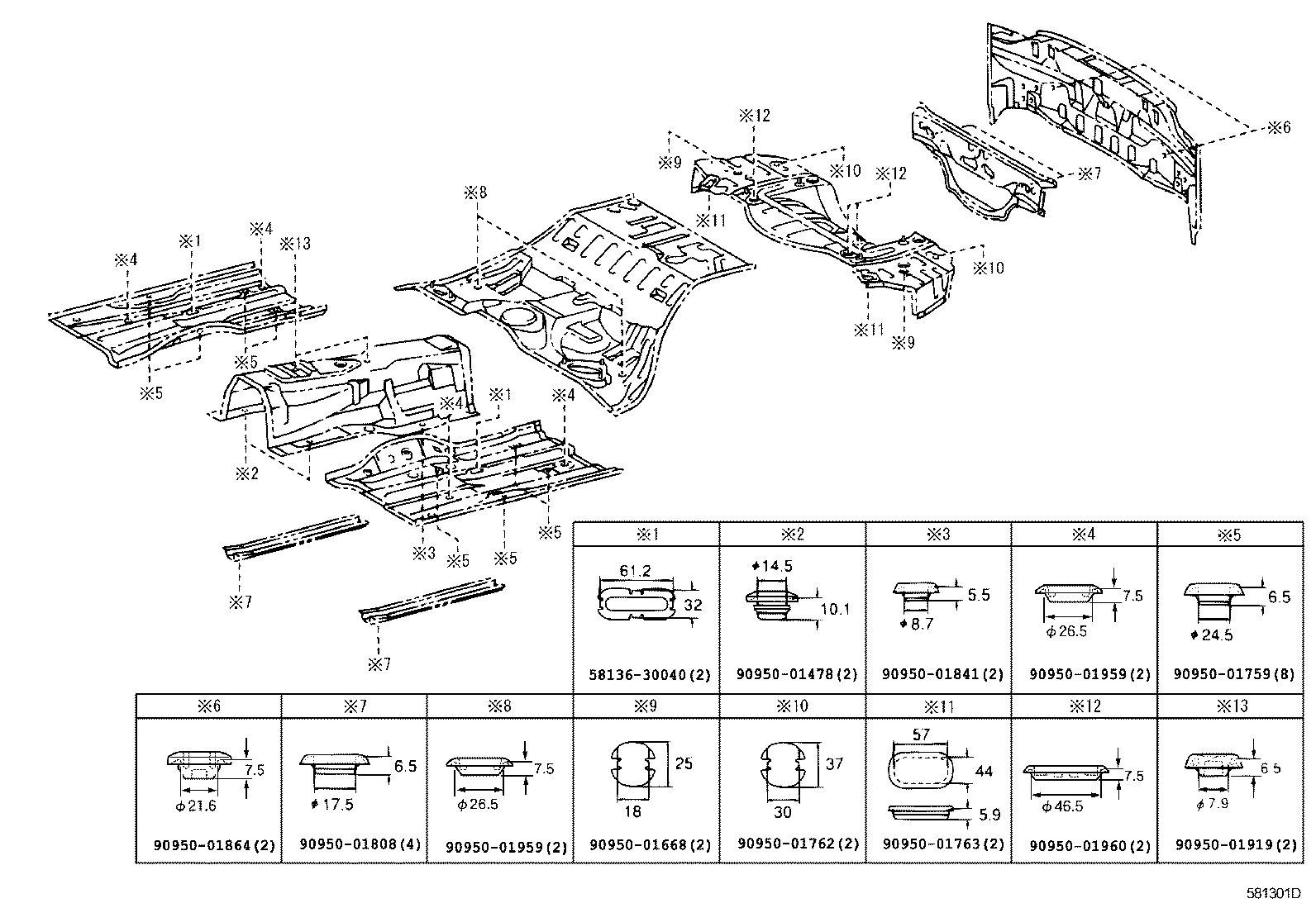

Figure 581300H 581300H 2001-01 → 2005-08 Figure 582383B 582383B 2005-08 → — Figure 581301D 581301D 2001-01 → —

Part groups

PNCDescription
53821J Bracket, Center Floor Pan
57051A Member Sub-assy, Front Floor Cross, RH
57052A Member Sub-assy, Front Floor Cross, LH
57053 Reinforcement Sub-assy, Front Floor Crossmember, RH
57054A Reinforcement Sub-assy, Front Floor Crossmember, LH
57257A Bracket, Engine Rear Mounting Member, RH
57258C Bracket, Engine Rear Mounting Member, LH
57417B Reinforcement, Front Floor Under
57418B Reinforcement, Front Floor Under, LH
57657A Bracket, Exhaust Pipe Mounting, NO.2
57805B Reinforcement Sub-assy, Belt Anchor, RH
57806 Reinforcement Sub-assy, Belt Anchor, LH
58111A Pan, Front Floor, RH
58112A Panel, Front Floor, LH
58113A Panel, Front Floor, Center
58165B Cover, Front Floor, RH
58166 Cover, Front Floor, LH
58208 Pan, Center Floor
58209A Reinforcement Sub-assy, Drive Shaft Center Support
58261A Cover, Transmission
58298E Bracket, Hot Air Intake, NO.1
58307 Panel Sub-assy, Body Lower Back
58311 Pan, Rear Floor
58313F Extension, Rear Floor Pan TO Quarter Panel, RH
58314F Extension, Rear Floor Pan TO Quarter Panel, LH
58315B Panel, Rear Floor, Front
58325E Cover, Rear Floor Service Hole
58329F Cover, Rear Floor Service Hole, NO.2
58351A Bracket, Spare Wheel Carrier
58352E Reinforcement, Jack Carrier TO Rear Floor Extension
58385H Bracket, Rear Bumper Cover, NO.1
58389F Bracket, Lower Back Cover
58791B Carrier, Jack
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
