Toyota Lexus SC430
2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States
Discontinued model
Data version 2011-01

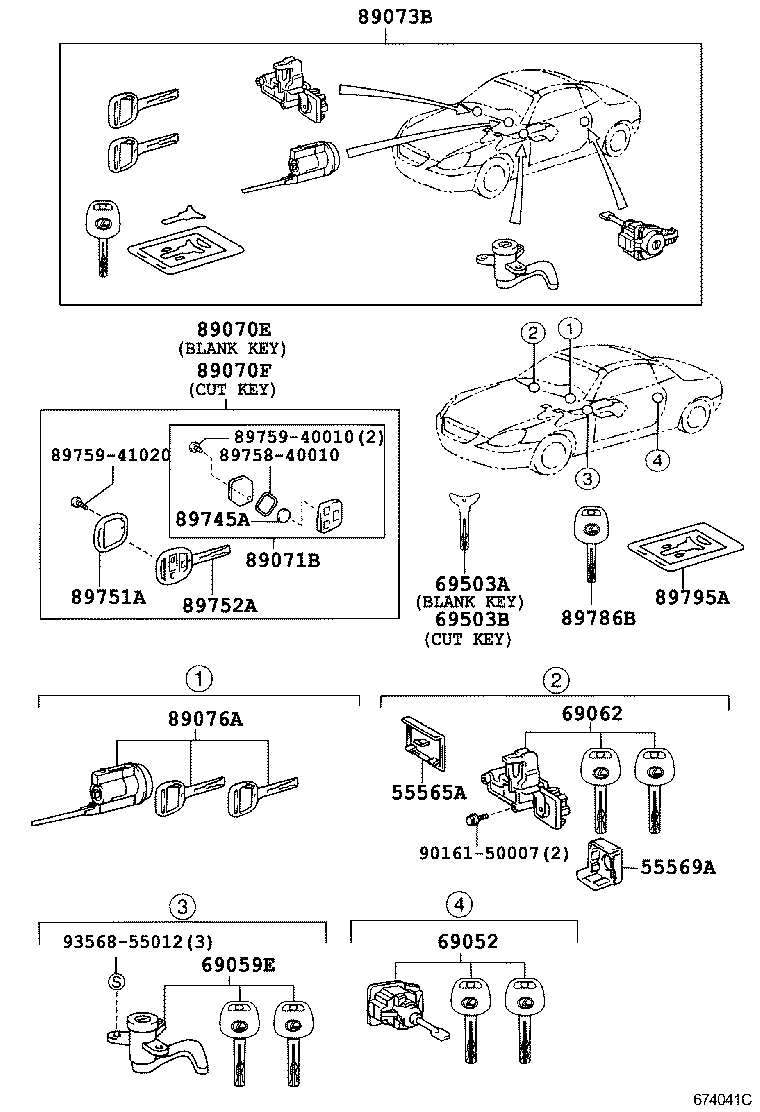

Lock Cylinder Set
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55565A | Handle, Glove Compartment Door Lock |
| 55569A | Cover, Glove Compartment Door Lock |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69059E | Cylinder & Key Set, Console Compartment Lock |
| 69062 | Cylinder & Key Set, Glove Compartment Lock |
| 69503A | Key, Blank |
| 69503B | Key, Cut |
| 89070E | Transmitter Assy, Door Control |
| 89070F | Transmitter Assy, Door Control (CUT KEY) |
| 89071B | Module Set, Transmitter Sub-assy, Door Control |
| 89073B | Cylinder Set, Lock W/Transmitter Housing(LESS MODULE) |
| 89076A | Ign Cylinder Set, Lock W/Transmitter Housing |
| 89745A | Battery, Transmitter |
| 89751A | Cover, Transmitter Housing |
| 89752A | Case, Transmitter Housing |
| 89786B | Transmitter, Transponder Key Sub |
| 89795A | Card, Transponder Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
