Toyota Lexus SC430

2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States

Discontinued model Data version 2011-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

57 part groups · 4 illustrations

Illustrations

711931G 2001-01 → 2006-08

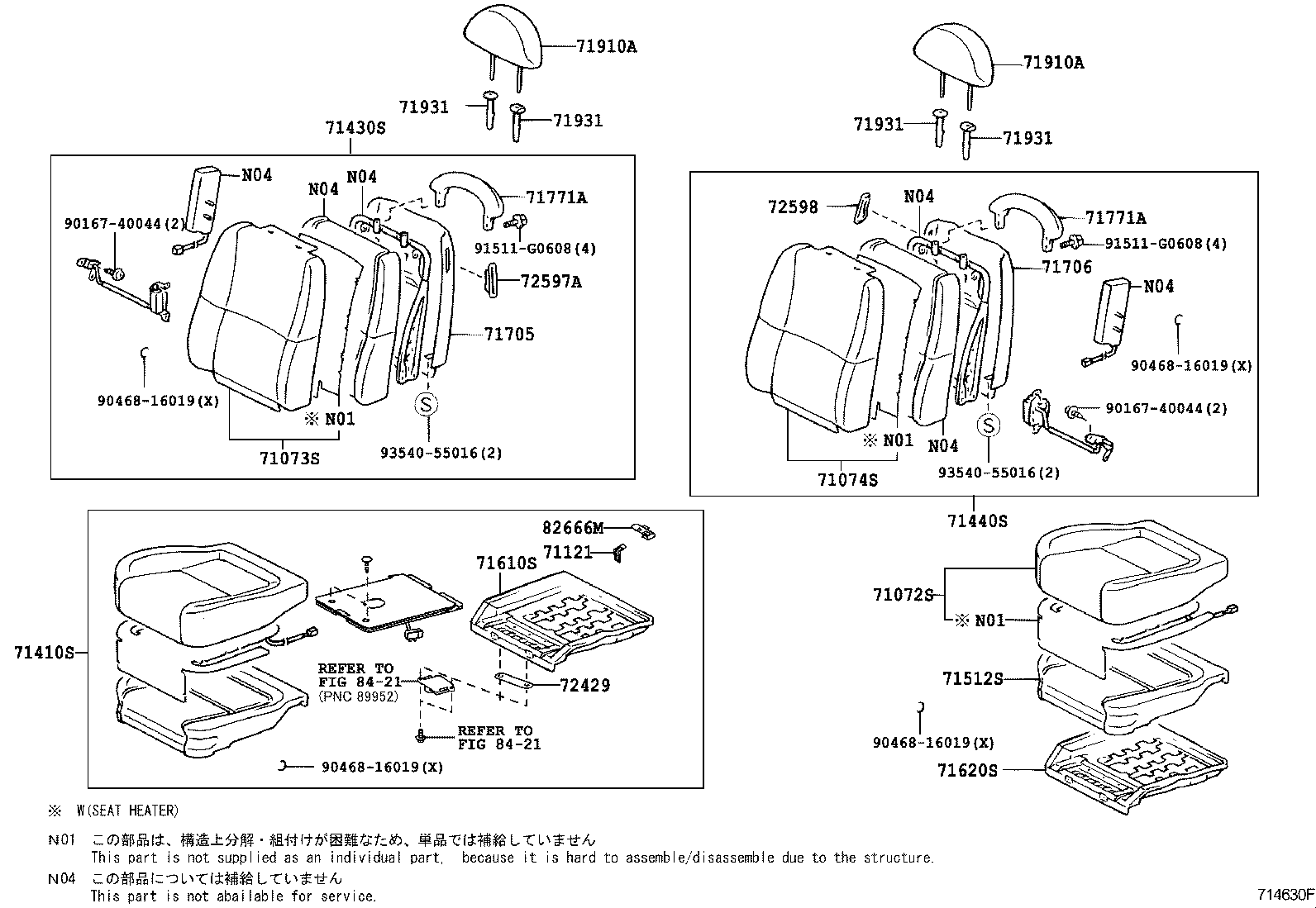

714630F 2006-08 → —

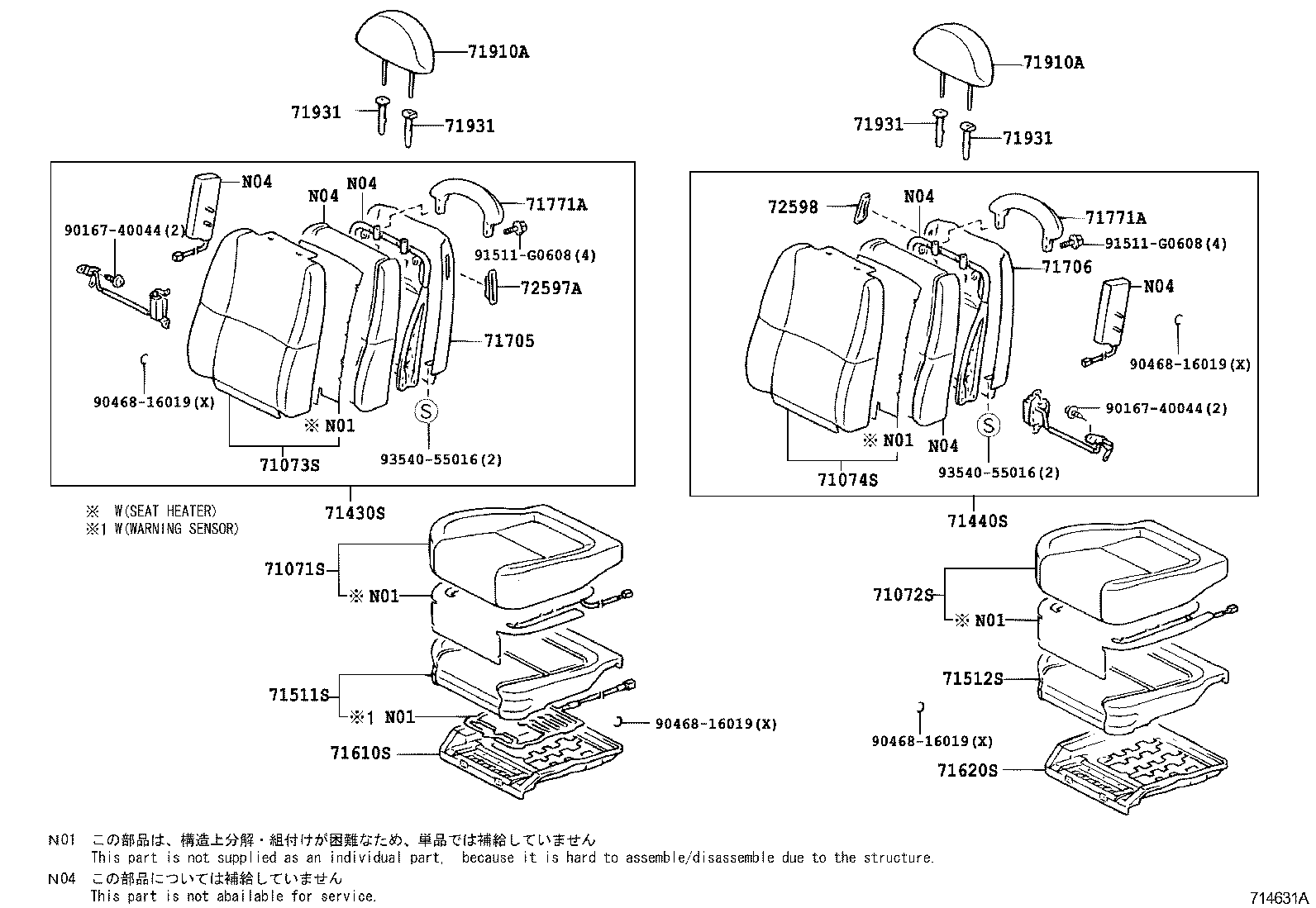

714631A 2006-08 → —

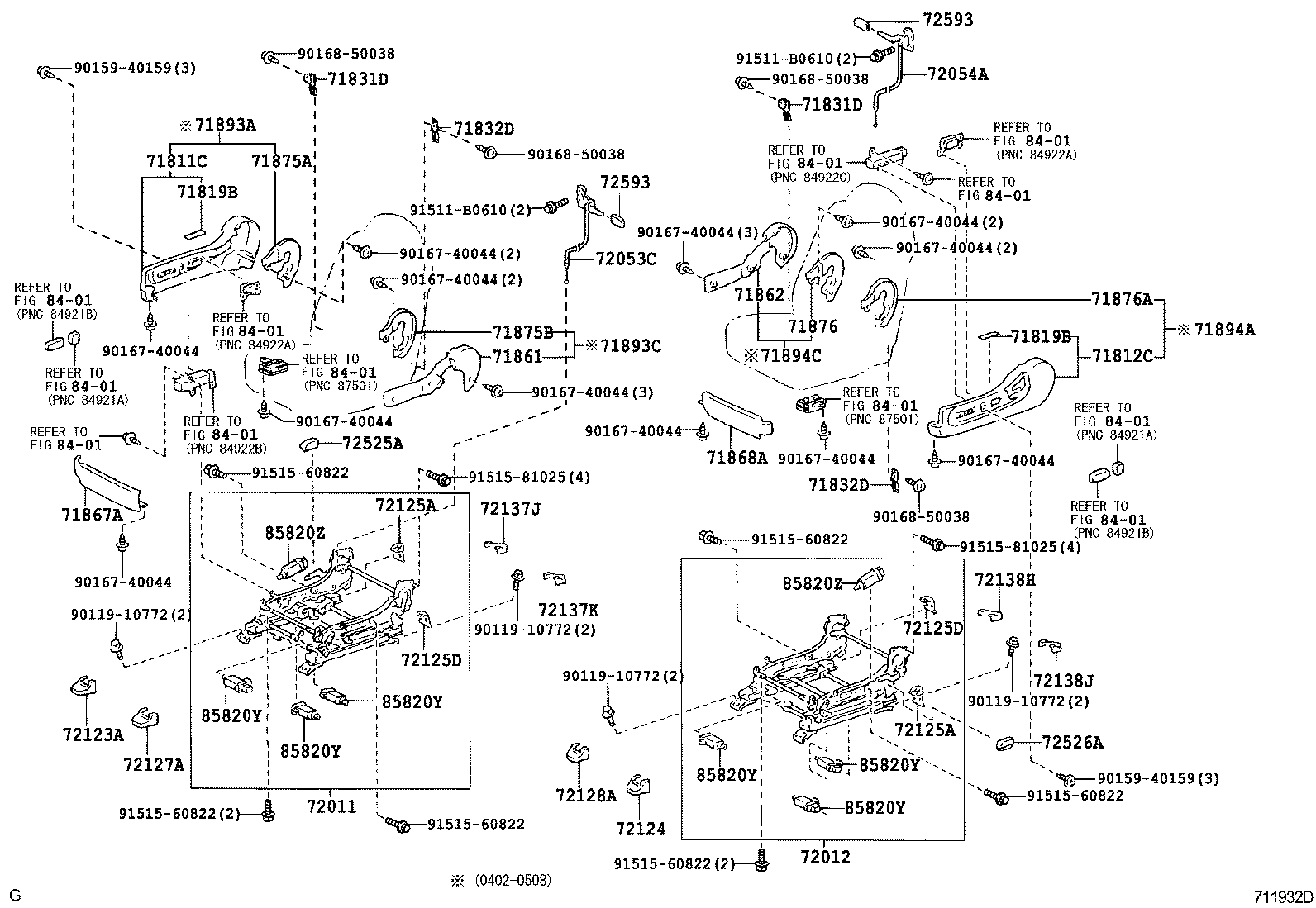

711932D 2001-01 → —

Part groups

PNC	Description
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71121	Bracket, Front Seat Cushion, RH
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71771A	Board, Front Seatback
71811C	Cover, Reclining Adjuster, RH
71812C	Cover, Reclining Adjuster, LH
71819B	Label, Side Airbag Name
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71893A	Shield, Power Adjuster, Front RH
71893C	Shield, Power Adjuster, Inner RH
71894A	Shield, Power Adjuster, Front LH
71894C	Shield, Power Adjuster, Inner LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72011	Adjuster Sub-assy, Front Seat, Outer RH
72012	Adjuster Sub-assy, Front Seat, Outer LH
72053C	Lever Sub-assy, Reclining Remote Control, RH
72054A	Lever Sub-assy, Reclining Remote Control, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72125A	Cover, Seat Track, Upper Rear
72125D	Cover, Seat Track, Upper Rear NO.2
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72137J	Cover, Front Seat Track, RH Rear Outer
72137K	Cover, Front Seat Track, RH Rear Inner
72138H	Cover, Front Seat Track, LH Rear Inner
72138J	Cover, Front Seat Track, LH Rear Outer
72429	Plate, Front Seat Adjuster, RH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
72593	Knob, Reclining Remote Control Lever
72597A	Bezel, Reclining Remote Control Lever, RH
72598	Bezel, Reclining Remote Control Lever, LH
82666M	Holder, Connector
85820Y	Motor Assy, Power Seat
85820Z	Motor Assy, Power Seat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
