Toyota Lexus SC430

2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States

Discontinued model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

12 part groups · 3 illustrations

Illustrations

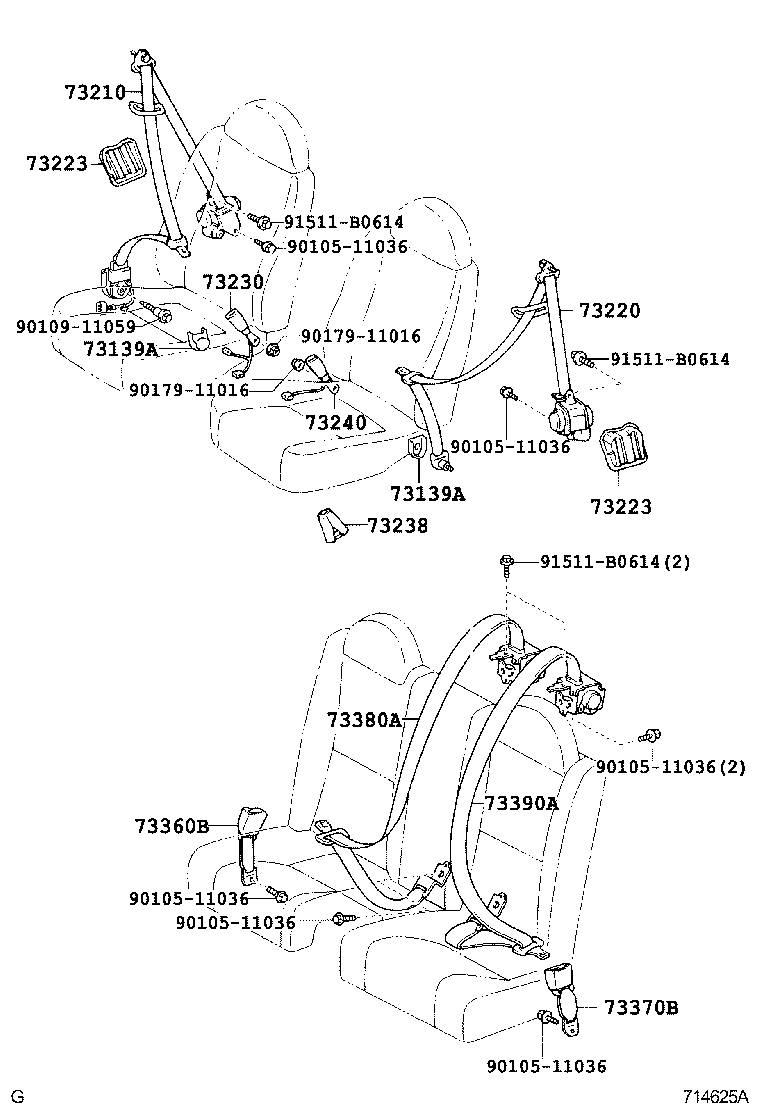

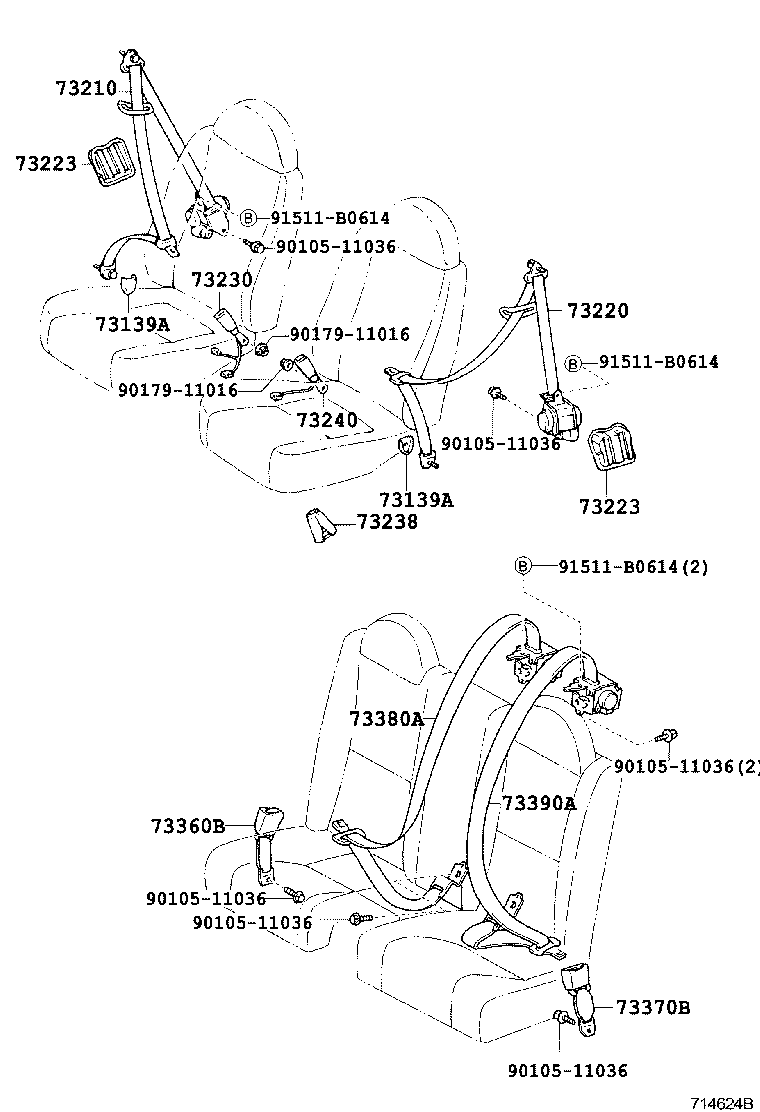

Figure 711929D 711929D 2001-01 → 2006-08 Figure 714625A 714625A 2006-08 → — Figure 714624B 714624B 2006-08 → —

Part groups

PNCDescription
73139A Cover, Seat Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73230 Belt Assy, Front Seat Inner, RH
73238 Cover, Front Seat Belt, Inner
73240 Belt Assy, Front Seat Inner, LH
73247 Retainer, Shoulder Belt Anchor
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73380A Belt Assy, Rear Seat, Inner
73390A Belt Assy, Rear Seat, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
