Toyota Lexus SC430
2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States
Discontinued model
Data version 2011-01

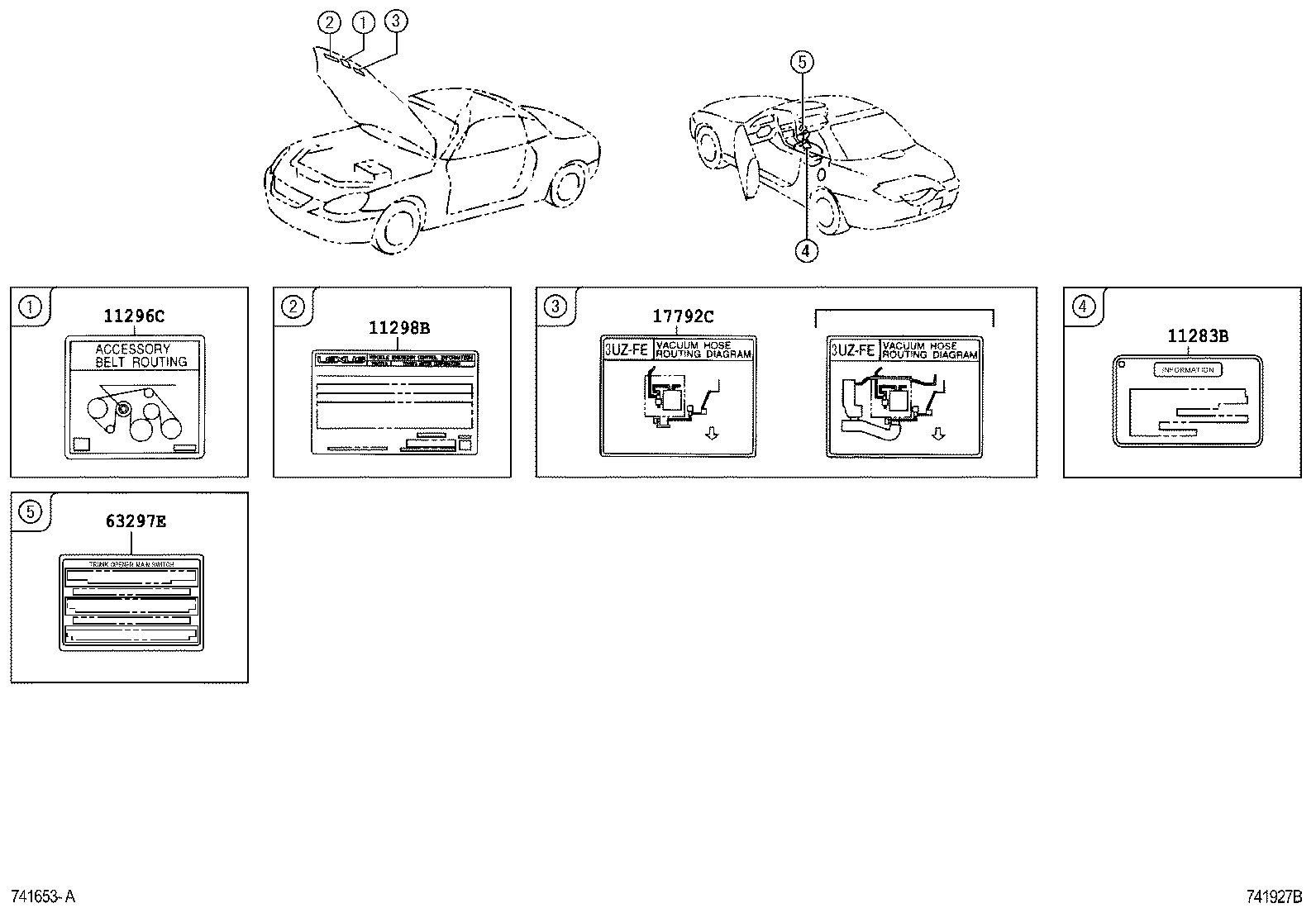

Caution Plate (EXTERIOR & INTERIOR)
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11283B | Label, Leak Detection Pump Information |
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 17792C | Label, Engine Vacuum Hose Information |
| 47997C | Label, Accumulator Caution, NO.1 |
| 63297E | Label, Sliding Roof Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515A | Plate, Theft Warning |
| 74533E | Label, Headlamp Voltage Caution |
| 74541C | Plate, Runflat Tire Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559A | Plate, Fuel Caution |
| 74569A | Plate, Vehicle Information |
| 74571A | Film, Label Cover |
| 74596A | Label, Side Airbag Caution |
| 74597 | Label, Driver & Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
