Toyota Lexus SC430
2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States
Discontinued model
Data version 2011-01

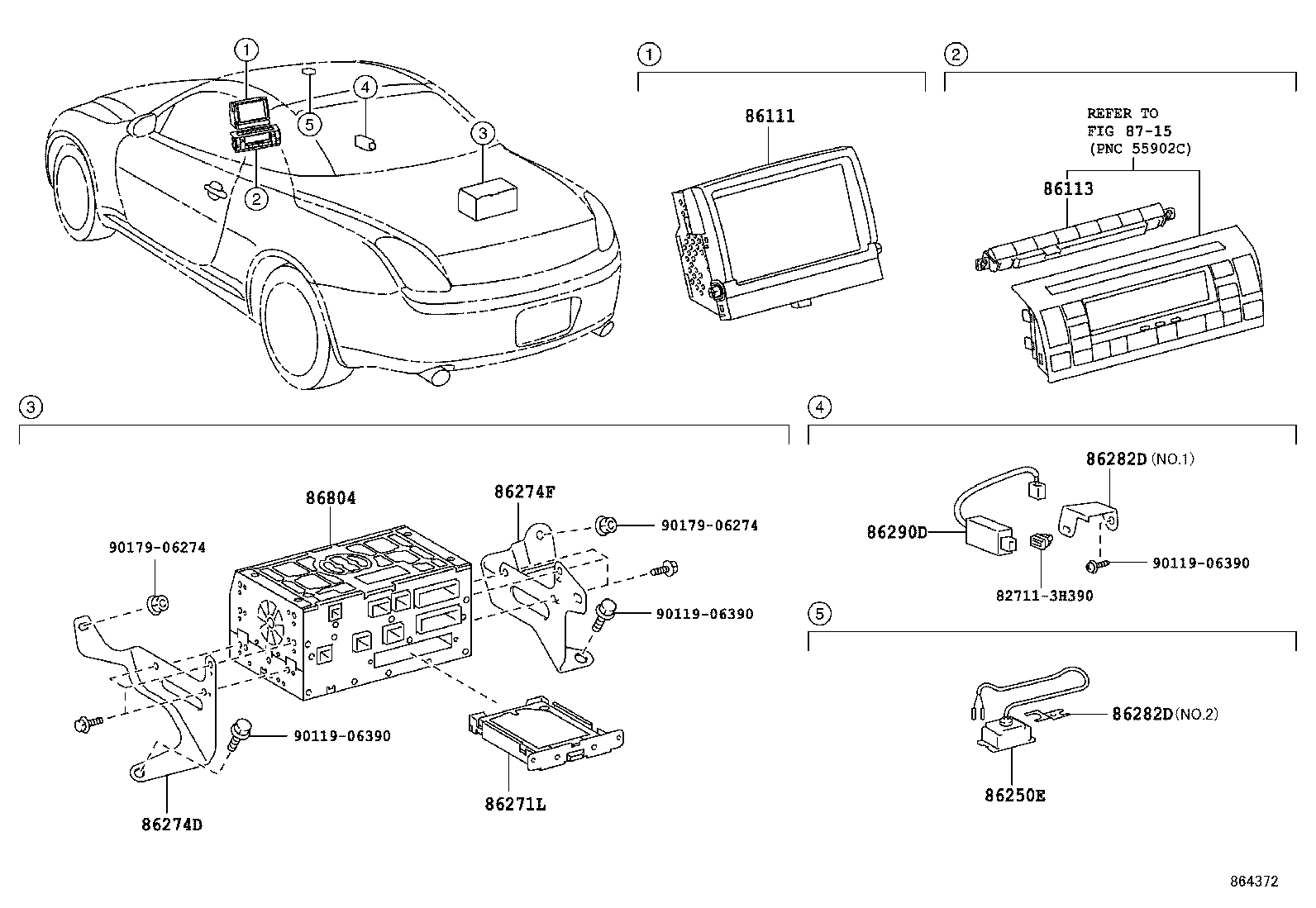

Navigation & Front Monitor Display
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011W | Amplifier, Navigation |
| 86111 | Multi-display |
| 86113 | Block, Multi-display Junction |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86271L | Hard Disc |
| 86274D | Bracket, Disc Player |
| 86274F | Bracket, Disc Player, NO.2 |
| 86282D | Bracket, Microphone |
| 86290D | Amplifier Assy, Microphone |
| 86804 | Cover Sub-assy, Navigation Computer |
| 86841 | Computer, Navigation |
| 86846 | Plate, Navigation Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
