Toyota Lexus SC430

2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States

Discontinued model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

23 part groups · 3 illustrations

Illustrations

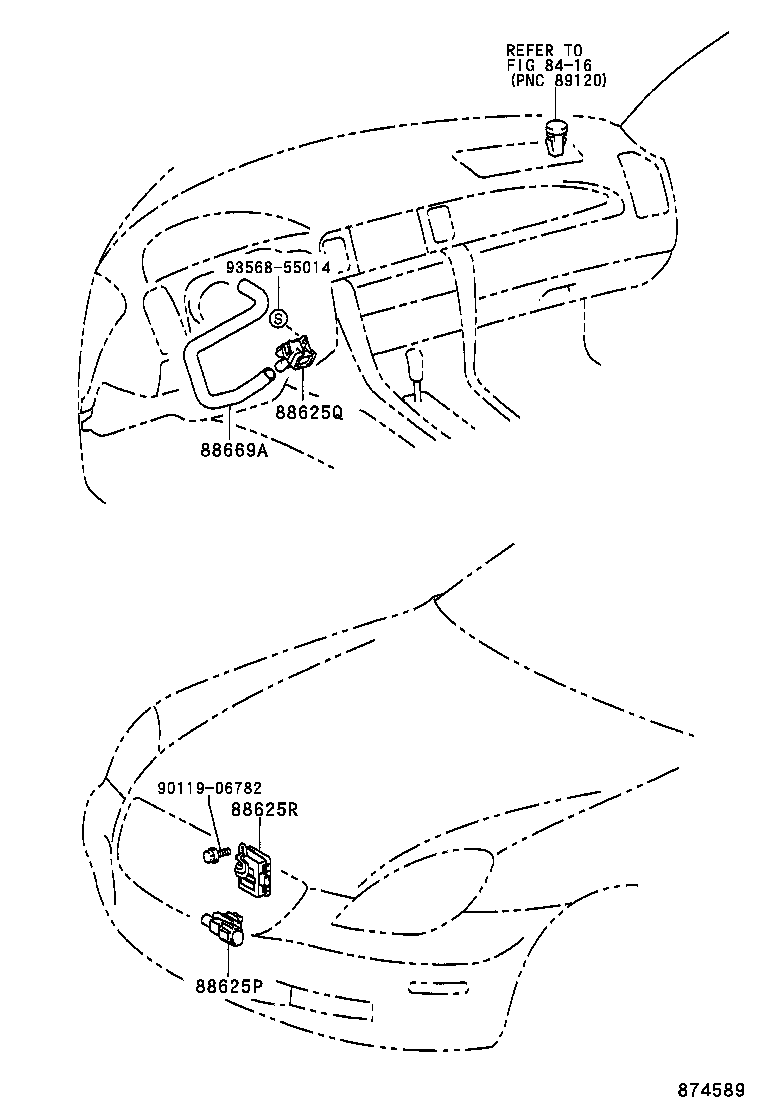

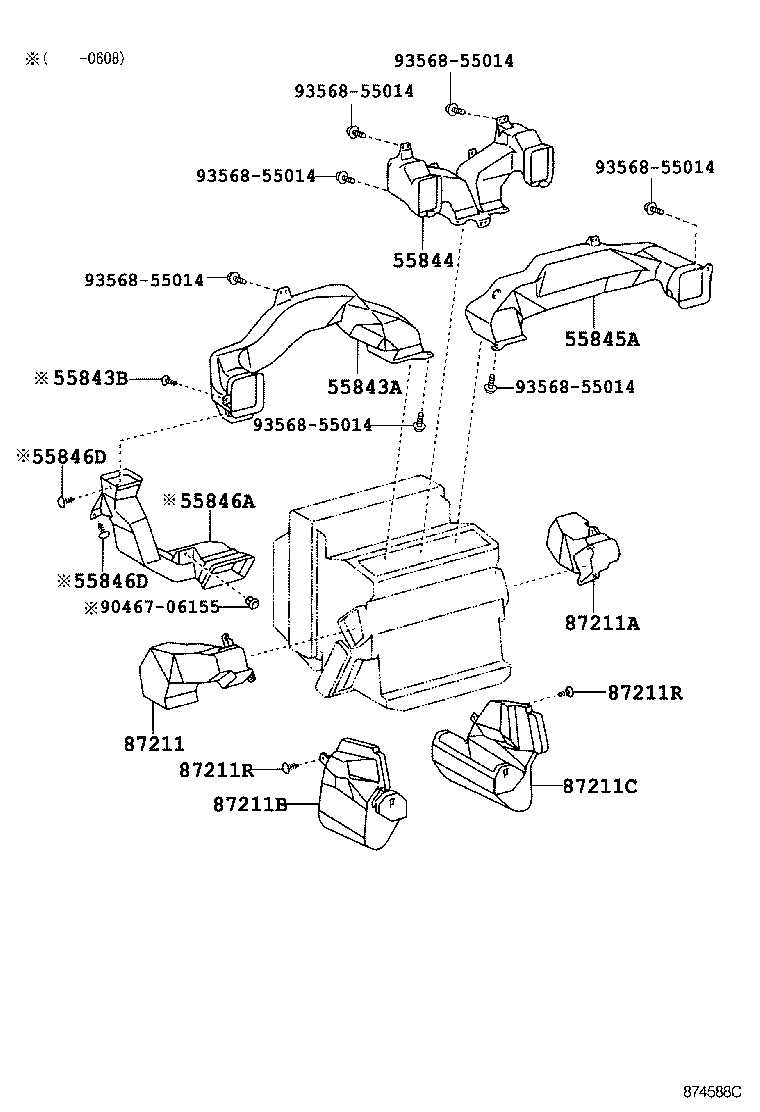

Figure 874590 874590 2001-01 → — Figure 874588C 874588C 2001-01 → — Figure 874589 874589 2001-01 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55843B Clip, Heater TO Register Duct
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55846D Clip, Heater TO Register Duct
55901 Base Sub-assy, Heater Control
55902C Panel Sub-assy, Air Conditioner
55905A Knob, Heater Control
55912A Housing, Heater Control
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
87211R Clip, Air Duct
88326C Plate, Cover
88484 Wire, Cooler, NO.1
88484A Wire, Cooler, NO.1
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88625R Thermistor, Cooler (SENSOR, SMOG VENTILATION)
88650B Amplifier Assy, Airconditioner
88669A Hose (FOR COOLER THERMISTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
