Toyota Crown

2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

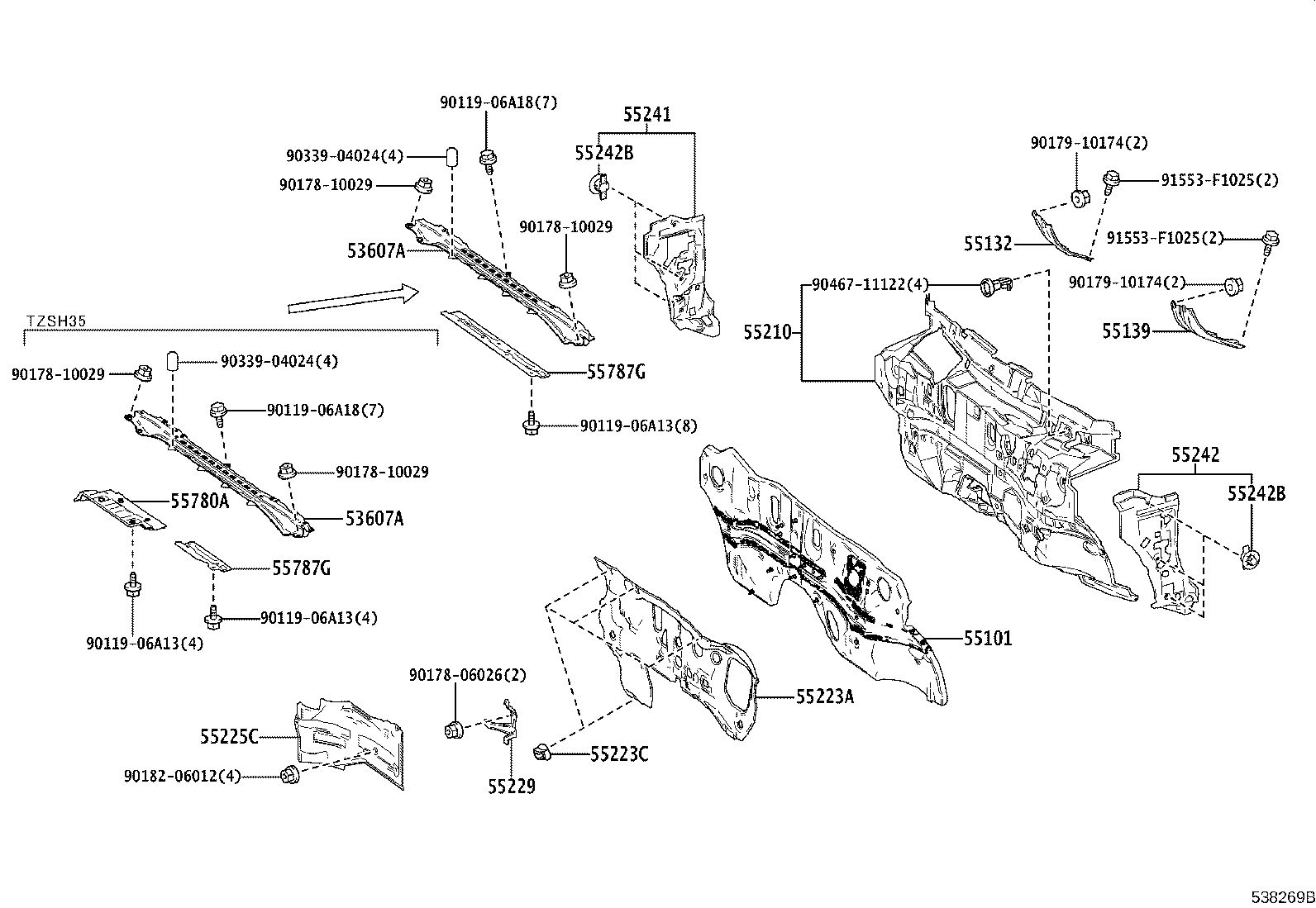

Exploded illustration 538269B 55223A — INSULATOR, DASH PANEL, OUTER (1 parts) 55780A — INSULATOR ASSY, COWL TOP (1 parts) 55223C — CLIP (1 parts) 9011906A13 — not listed in this catalogue 55132 — REINFORCEMENT, DASH PANEL, NO.2 (1 parts) 55139 — REINFORCEMENT, DASH TO FRAME BRACE (1 parts) 55242 — SILENCER, FRONT PANEL SIDE, NO.1 LH (1 parts) 55241 — SILENCER, FRONT PANEL SIDE, NO.1 RH (1 parts) 55229 — PLATE, DASH PANEL INSULATOR, NO.4 (1 parts) 53607A — BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER (1 parts) 55787G — INSULATOR, COWL TOP PANEL, NO.1 (4 parts) 53607A — BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER (1 parts) 55787G — INSULATOR, COWL TOP PANEL, NO.1 (4 parts) 9017910174 — not listed in this catalogue 9017910174 — not listed in this catalogue 91553F1025 — not listed in this catalogue 91553F1025 — not listed in this catalogue 55242B — CLIP, FRONT PANEL SIDE SILENCER (1 parts) 55242B — CLIP, FRONT PANEL SIDE SILENCER (1 parts) 9011906A13 — not listed in this catalogue 9011906A18 — not listed in this catalogue 9017810029 — not listed in this catalogue 9011906A13 — not listed in this catalogue 9011906A18 — not listed in this catalogue 9017810029 — not listed in this catalogue 9017810029 — not listed in this catalogue 9017806026 — not listed in this catalogue 55101 — PANEL SUB-ASSY, DASH (2 parts) 55210 — INSULATOR ASSY, DASH PANEL (2 parts) 9046711122 — not listed in this catalogue 55225C — INSULATOR, DASH PANEL HEAT (1 parts) 9018206012 — not listed in this catalogue 9033904024 — not listed in this catalogue 9033904024 — not listed in this catalogue 9017810029 — not listed in this catalogue
538269B · 17 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
53607A — Brace Sub-assy, Front Suspension, Upper Center
53607-30020 Brace Sub-assy, Front Suspension, Upper Center
2023-01 → —
AZSH35,TZSH35 —
55101 — Panel Sub-assy, Dash
55101-30D20 Panel Sub-assy, Dash
2023-01 → —
AZSH35 —
55101-30D30 Panel Sub-assy, Dash
2023-01 → —
TZSH35 —
55132 — Reinforcement, Dash Panel, NO.2
55132-42050 Reinforcement, Dash Panel, NO.2
2023-01 → —
AZSH35,TZSH35 —
55139 — Reinforcement, Dash TO Frame Brace
55139-42030 Reinforcement, Dash TO Frame Brace
2023-01 → —
AZSH35,TZSH35 —
55210 — Insulator Assy, Dash Panel
55210-30560 Insulator Assy, Dash Panel
2023-01 → 2024-05 ended
AZSH35,TZSH35 —
55210-30561 Insulator Assy, Dash Panel
2024-06 → —
AZSH35,TZSH35 —
55223A — Insulator, Dash Panel, Outer
55223-30280 Insulator, Dash Panel, Outer
2023-01 → —
AZSH35,TZSH35 —
55223C — Clip
90467-06206-C0 note Clip
2023-01 → —
AZSH35,TZSH35 —
55225C — Insulator, Dash Panel Heat
55225-78010 Insulator, Dash Panel Heat
2023-01 → —
TZSH35 —
55229 — Plate, Dash Panel Insulator, NO.4
55229-78020 Plate, Dash Panel Insulator, NO.4
2023-01 → —
TZSH35 —
55241 — Silencer, Front Panel Side, NO.1 RH
55241-30040 Silencer, Front Panel Side, NO.1 RH
2023-01 → —
AZSH35,TZSH35 —
55242 — Silencer, Front Panel Side, NO.1 LH
55242-30060 Silencer, Front Panel Side, NO.1 LH
2023-01 → —
AZSH35,TZSH35 —
55242B — Clip, Front Panel Side Silencer
90467-13079 Clip, Front Panel Side Silencer
2023-01 → —
AZSH35,TZSH35 —
55780A — Insulator Assy, Cowl Top
55780-30020 Insulator Assy, Cowl Top
2023-01 → —
TZSH35 —
55787G — Insulator, Cowl Top Panel, NO.1
55787-30140 Insulator, Cowl Top Panel, NO.1
2023-01 → 2023-08 ended
AZSH35 —
55787-30141 Insulator, Cowl Top Panel, NO.1
2023-09 → —
AZSH35 —
55787-30150 Insulator, Cowl Top Panel, NO.1
2023-01 → 2023-08 ended
TZSH35 —
55787-30151 Insulator, Cowl Top Panel, NO.1
2023-09 → —
TZSH35 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
