Toyota Crown

2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

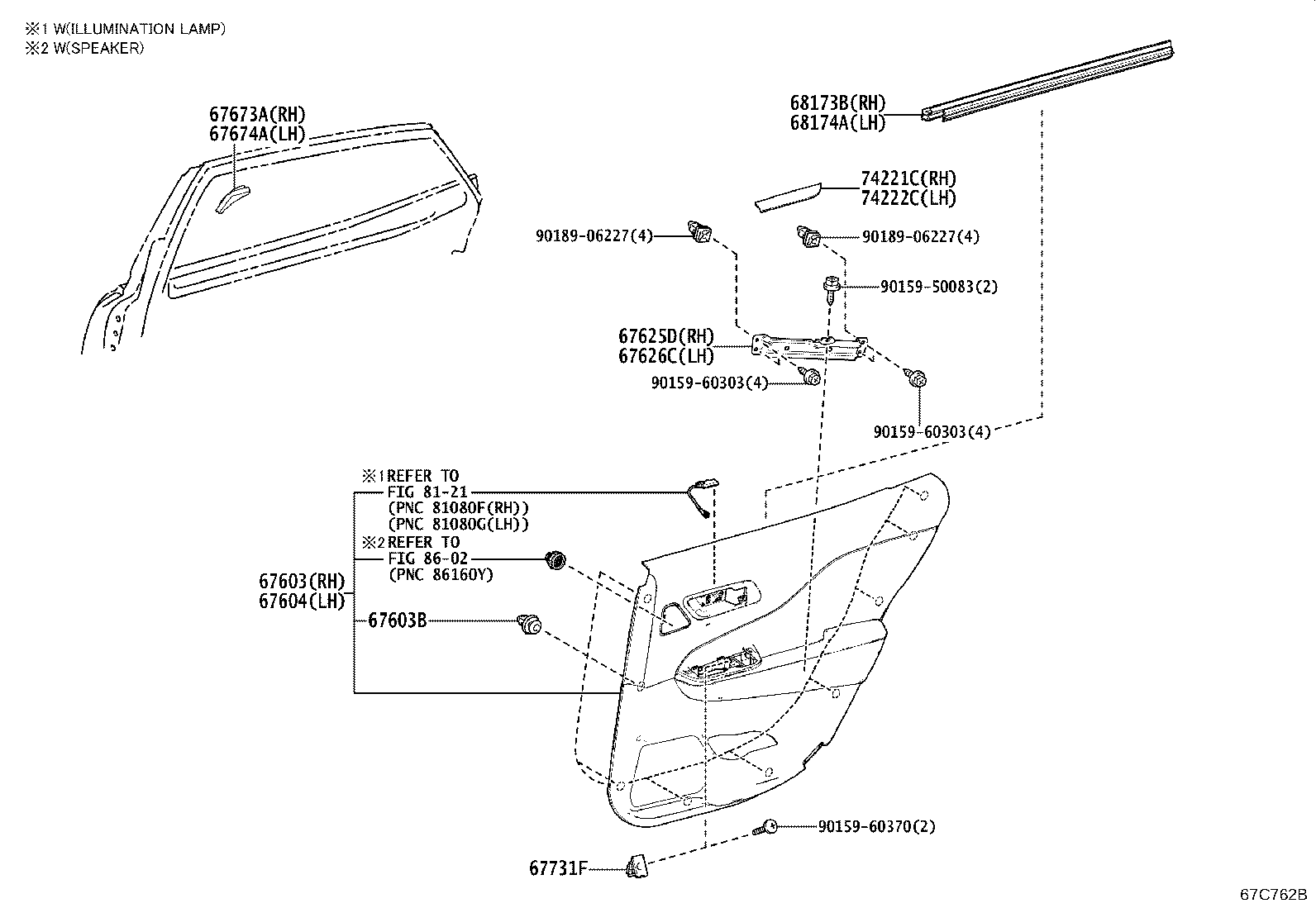

Exploded illustration 67C762B 67603 — BOARD SUB-ASSY, REAR DOOR TRIM, RH (36 parts) 67604 — BOARD SUB-ASSY, REAR DOOR TRIM, LH (36 parts) 8121 — not listed in this catalogue 67603B — CLIP(FOR REAR DOOR TRIM BOARD) (1 parts) 67625D — BRACKET, REAR DOOR TRIM (1 parts) 67626C — BRACKET, REAR DOOR TRIM, NO.2 (1 parts) 67731F — SPACER, SIDE TRIM, NO.1 (1 parts) 74221C — COVER, REAR DOOR ARMREST, RH (1 parts) 74222C — COVER, REAR DOOR ARMREST, LH (1 parts) 9015960303 — not listed in this catalogue 9015960303 — not listed in this catalogue 9018906227 — not listed in this catalogue 9018906227 — not listed in this catalogue 9015950083 — not listed in this catalogue 68173B — WEATHERSTRIP, REAR DOOR GLASS, INNER RH (1 parts) 68174A — WEATHERSTRIP, REAR DOOR GLASS, INNER LH (1 parts) 67673A — GARNISH, REAR DOOR FRAME, RH (1 parts) 67674A — GARNISH, REAR DOOR FRAME, LH (1 parts) 9015960370 — not listed in this catalogue 8602 — not listed in this catalogue
67C762B · 12 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
82 parts on this figure
Part number Description Fitment Price
67603 — Board Sub-assy, Rear Door Trim, RH
67630-30W80-C5 note Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-10 ended
AZSH35 —
67630-30W80-C7 note Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-10 ended
AZSH35 —
67630-30W81-C9 note Board Sub-assy, Rear Door Trim, RH
2023-10 → 2024-04 ended
AZSH35 —
67630-30W90-C4 note Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-10 ended
AZSH35 —
67630-30W90-C4 note Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-10 ended
AZSH35 —
67630-30W90-C5 note Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-10 ended
AZSH35 —
67630-30W90-C5 note Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-10 ended
AZSH35 —
67630-30W90-C7 note Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-10 ended
AZSH35 —
67630-30W90-C7 note Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-10 ended
AZSH35 —
67630-30W91-20 note Board Sub-assy, Rear Door Trim, RH
2023-10 → 2024-04 ended
AZSH35 —
67630-30W91-20 note Board Sub-assy, Rear Door Trim, RH
2023-10 → 2024-04 ended
AZSH35 —
67630-30W91-20 note Board Sub-assy, Rear Door Trim, RH
2023-10 → 2024-04 ended
AZSH35 —
67630-30W91-23 note Board Sub-assy, Rear Door Trim, RH
2024-04 → —
AZSH35 —
67630-30W91-23 note Board Sub-assy, Rear Door Trim, RH
2024-04 → —
AZSH35 —
67630-30W91-C4 note Board Sub-assy, Rear Door Trim, RH
2024-04 → —
AZSH35 —
67630-30W91-C4 note Board Sub-assy, Rear Door Trim, RH
2023-10 → 2024-04 ended
AZSH35 —
67630-30W91-C4 note Board Sub-assy, Rear Door Trim, RH
2023-10 → 2024-04 ended
AZSH35 —
67630-30W91-C4 note Board Sub-assy, Rear Door Trim, RH
2023-10 → —
AZSH35 —
67630-30W91-C9 note Board Sub-assy, Rear Door Trim, RH
2023-10 → 2024-04 ended
TZSH35 —
67630-30W91-C9 note Board Sub-assy, Rear Door Trim, RH
2024-04 → —
AZSH35 —
67630-30W91-C9 note Board Sub-assy, Rear Door Trim, RH
2023-10 → —
AZSH35 —
67630-30W91-C9 note Board Sub-assy, Rear Door Trim, RH
2023-10 → 2024-04 ended
AZSH35 —
67630-30W91-C9 note Board Sub-assy, Rear Door Trim, RH
2023-10 → 2024-04 ended
TZSH35 —
67630-30W91-C9 note Board Sub-assy, Rear Door Trim, RH
2023-10 → 2024-04 ended
AZSH35 —
67630-30X00-C4 note Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-10 ended
AZSH35 —
67630-30X00-C5 note Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-10 ended
TZSH35 —
67630-30X00-C5 note Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-10 ended
AZSH35 —
67630-30X00-C7 note Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-10 ended
TZSH35 —
67630-30X00-C7 note Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-10 ended
AZSH35 —
67630-30X01-21 note Board Sub-assy, Rear Door Trim, RH
2023-10 → 2024-04 ended
AZSH35 —
67630-30X01-23 note Board Sub-assy, Rear Door Trim, RH
2024-04 → —
AZSH35 —
67630-30X01-C4 note Board Sub-assy, Rear Door Trim, RH
2023-10 → —
AZSH35 —
67630-30X01-C9 note Board Sub-assy, Rear Door Trim, RH
2023-10 → —
AZSH35 —
67630-30X01-C9 note Board Sub-assy, Rear Door Trim, RH
2023-10 → —
TZSH35 —
67630-30Y40-C0 note Board Sub-assy, Rear Door Trim, RH
2024-04 → —
AZSH35 —
67630-30Y50-C0 note Board Sub-assy, Rear Door Trim, RH
2024-04 → —
AZSH35 —
67603B — Clip(FOR REAR DOOR TRIM BOARD)
90467-09206 Clip(FOR REAR DOOR TRIM BOARD)
2023-01 → —
AZSH35,TZSH35 —
67604 — Board Sub-assy, Rear Door Trim, LH
67640-30W80-C5 note Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-10 ended
AZSH35 —
67640-30W80-C7 note Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-10 ended
AZSH35 —
67640-30W81-C9 note Board Sub-assy, Rear Door Trim, LH
2023-10 → 2024-04 ended
AZSH35 —
67640-30W90-C4 note Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-10 ended
AZSH35 —
67640-30W90-C4 note Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-10 ended
AZSH35 —
67640-30W90-C5 note Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-10 ended
AZSH35 —
67640-30W90-C5 note Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-10 ended
AZSH35 —
67640-30W90-C7 note Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-10 ended
AZSH35 —
67640-30W90-C7 note Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-10 ended
AZSH35 —
67640-30W91-20 note Board Sub-assy, Rear Door Trim, LH
2023-10 → 2024-04 ended
AZSH35 —
67640-30W91-20 note Board Sub-assy, Rear Door Trim, LH
2023-10 → 2024-04 ended
AZSH35 —
67640-30W91-20 note Board Sub-assy, Rear Door Trim, LH
2023-10 → 2024-04 ended
AZSH35 —
67640-30W91-23 note Board Sub-assy, Rear Door Trim, LH
2024-04 → —
AZSH35 —
67640-30W91-23 note Board Sub-assy, Rear Door Trim, LH
2024-04 → —
AZSH35 —
67640-30W91-C4 note Board Sub-assy, Rear Door Trim, LH
2024-04 → —
AZSH35 —
67640-30W91-C4 note Board Sub-assy, Rear Door Trim, LH
2023-10 → 2024-04 ended
AZSH35 —
67640-30W91-C4 note Board Sub-assy, Rear Door Trim, LH
2023-10 → 2024-04 ended
AZSH35 —
67640-30W91-C4 note Board Sub-assy, Rear Door Trim, LH
2023-10 → —
AZSH35 —
67640-30W91-C9 note Board Sub-assy, Rear Door Trim, LH
2023-10 → —
AZSH35 —
67640-30W91-C9 note Board Sub-assy, Rear Door Trim, LH
2024-04 → —
AZSH35 —
67640-30W91-C9 note Board Sub-assy, Rear Door Trim, LH
2023-10 → 2024-04 ended
AZSH35 —
67640-30W91-C9 note Board Sub-assy, Rear Door Trim, LH
2023-10 → 2024-04 ended
TZSH35 —
67640-30W91-C9 note Board Sub-assy, Rear Door Trim, LH
2023-10 → 2024-04 ended
AZSH35 —
67640-30W91-C9 note Board Sub-assy, Rear Door Trim, LH
2023-10 → 2024-04 ended
TZSH35 —
67640-30X00-C4 note Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-10 ended
AZSH35 —
67640-30X00-C5 note Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-10 ended
TZSH35 —
67640-30X00-C5 note Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-10 ended
AZSH35 —
67640-30X00-C7 note Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-10 ended
AZSH35 —
67640-30X00-C7 note Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-10 ended
TZSH35 —
67640-30X01-21 note Board Sub-assy, Rear Door Trim, LH
2023-10 → 2024-04 ended
AZSH35 —
67640-30X01-23 note Board Sub-assy, Rear Door Trim, LH
2024-04 → —
AZSH35 —
67640-30X01-C4 note Board Sub-assy, Rear Door Trim, LH
2023-10 → —
AZSH35 —
67640-30X01-C9 note Board Sub-assy, Rear Door Trim, LH
2023-10 → —
AZSH35 —
67640-30X01-C9 note Board Sub-assy, Rear Door Trim, LH
2023-10 → —
TZSH35 —
67640-30Y40-C0 note Board Sub-assy, Rear Door Trim, LH
2024-04 → —
AZSH35 —
67640-30Y50-C0 note Board Sub-assy, Rear Door Trim, LH
2024-04 → —
AZSH35 —
67625D — Bracket, Rear Door Trim
67625-30090 Bracket, Rear Door Trim
2023-01 → —
AZSH35,TZSH35 —
67626C — Bracket, Rear Door Trim, NO.2
67626-30090 Bracket, Rear Door Trim, NO.2
2023-01 → —
AZSH35,TZSH35 —
67673A — Garnish, Rear Door Frame, RH
67673-30210 Garnish, Rear Door Frame, RH
2023-01 → —
AZSH35,TZSH35 —
67674A — Garnish, Rear Door Frame, LH
67674-30210 Garnish, Rear Door Frame, LH
2023-01 → —
AZSH35,TZSH35 —
67731F — Spacer, Side Trim, NO.1
67731-53030 Spacer, Side Trim, NO.1
2023-01 → —
AZSH35,TZSH35 —
68173B — Weatherstrip, Rear Door Glass, Inner RH
68173-30240 Weatherstrip, Rear Door Glass, Inner RH
2023-01 → —
AZSH35,TZSH35 —
68174A — Weatherstrip, Rear Door Glass, Inner LH
68174-30200 Weatherstrip, Rear Door Glass, Inner LH
2023-01 → —
AZSH35,TZSH35 —
74221C — Cover, Rear Door Armrest, RH
74047-30010 Cover, Rear Door Armrest, RH
2023-01 → —
AZSH35,TZSH35 —
74222C — Cover, Rear Door Armrest, LH
74047-30010 Cover, Rear Door Armrest, LH
2023-01 → —
AZSH35,TZSH35 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
