Toyota Crown

2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

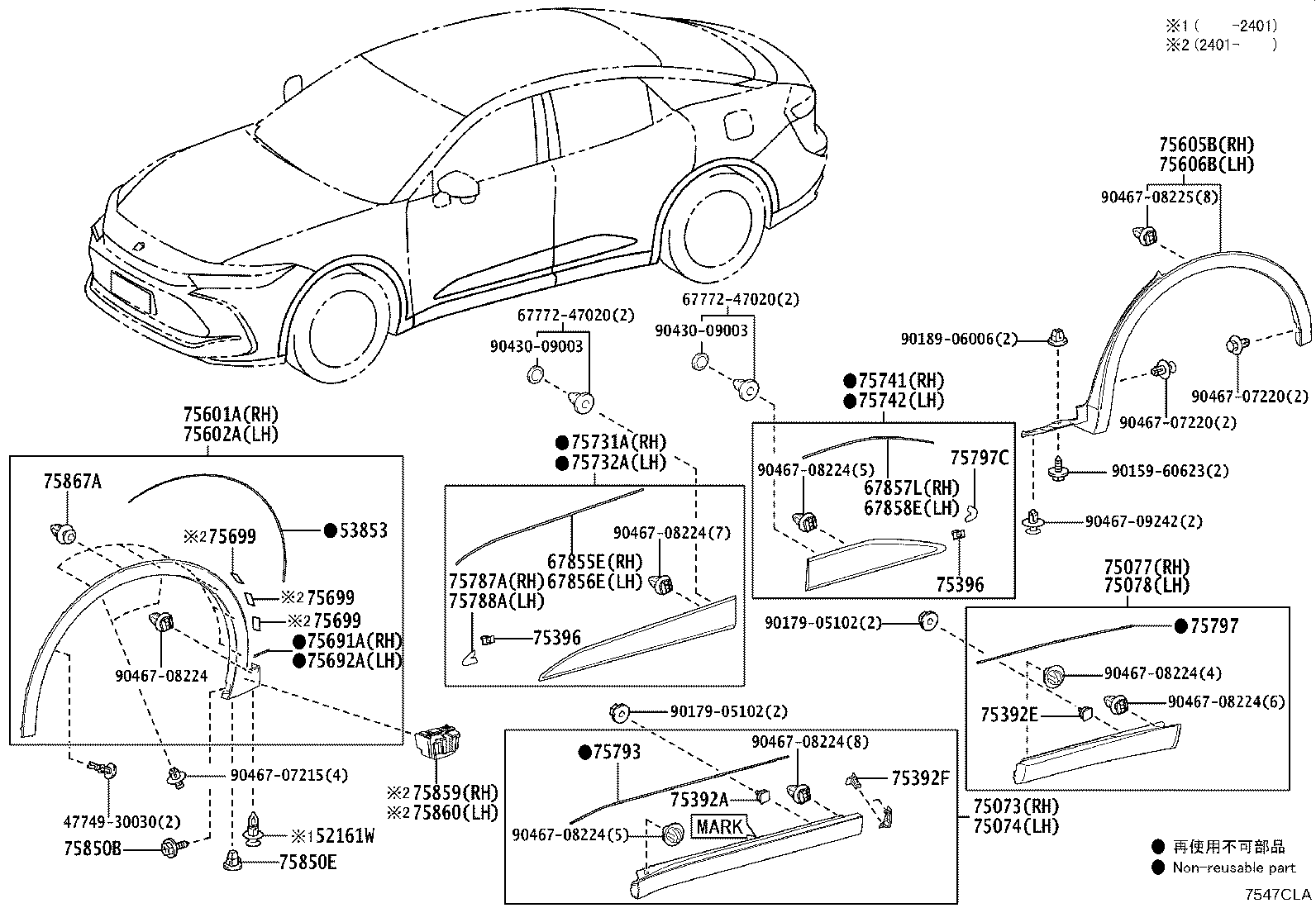

Exploded illustration 7547CLA 9017905102 — not listed in this catalogue 6777247020 — not listed in this catalogue 9043009003 — not listed in this catalogue 6777247020 — not listed in this catalogue 9043009003 — not listed in this catalogue 52161W — PIECE, FRONT BUMPER (2 parts) 75850B — SCREW, NO.3 (1 parts) 75691A — PAD, FRONT FENDER OUTSIDE MOULDING, RH (1 parts) 75699 — PAD, BODY OUTSIDE MOULDING, NO.4 (1 parts) 75699 — PAD, BODY OUTSIDE MOULDING, NO.4 (1 parts) 75699 — PAD, BODY OUTSIDE MOULDING, NO.4 (1 parts) 75850E — GROMMET, NO.3 (1 parts) 75692A — PAD, FRONT FENDER OUTSIDE MOULDING, LH (1 parts) 53853 — PAD, FRONT WHEEL OPENING EXTENSION, NO.3 (1 parts) 75392A — RETAINER, OUTSIDE MOULDING, NO.1 (1 parts) 75392F — RETAINER, OUTSIDE MOULDING (1 parts) 75392E — RETAINER, OUTSIDE MOULDING, NO.1 (1 parts) 75797 — PAD, REAR DOOR OUTSIDE MOULDING, UPPER (1 parts) 75793 — PAD, FRONT DOOR OUTSIDE MOULDING, UPPER (1 parts) 75867A — CLIP, ROCKER PANEL MOULDING (1 parts) 4774930030 — not listed in this catalogue 9046708224 — not listed in this catalogue 9046708225 — not listed in this catalogue 75601A — MOULDING SUB-ASSY, FRONT FENDER, RH (3 parts) 75602A — MOULDING SUB-ASSY, FRONT FENDER, LH (3 parts) 75731A — MOULDING, FRONT DOOR, OUTSIDE RH (3 parts) 75732A — MOULDING, FRONT DOOR, OUTSIDE LH (3 parts) 75859 — PROTECTOR, FRONT FENDER SIDE (1 parts) 75860 — PROTECTOR, FRONT FENDER SIDE, LH (1 parts) 75787A — PAD, FRONT DOOR OUTSIDE MOULDING, RH (1 parts) 75788A — PAD, FRONT DOOR OUTSIDE MOULDING, LH (1 parts) 75797C — PAD, REAR DOOR OUTSIDE MOULDING, UPPER (1 parts) 67855E — PROTECTOR, FRONT DOOR PANEL, RH (1 parts) 67856E — PROTECTOR, FRONT DOOR PANEL, LH (1 parts) 67857L — PROTECTOR, REAR DOOR PANEL, RH (1 parts) 67858E — PROTECTOR, REAR DOOR PANEL, LH (1 parts) 9046708224 — not listed in this catalogue 9046708224 — not listed in this catalogue 75396 — CLIP, OUTSIDE MOULDING, NO.2 (1 parts) 75396 — CLIP, OUTSIDE MOULDING, NO.2 (1 parts) 75073 — MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER RH (2 parts) 75074 — MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER LH (2 parts) 75077 — MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH (2 parts) 75078 — MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH (2 parts) 75605B — MOULDING SUB-ASSY, QUARTER OUTSIDE, RH (1 parts) 75606B — MOULDING SUB-ASSY, QUARTER OUTSIDE, LH (1 parts) 9046707215 — not listed in this catalogue 9046708224 — not listed in this catalogue 9046708224 — not listed in this catalogue 9017905102 — not listed in this catalogue 9046708224 — not listed in this catalogue 9015960623 — not listed in this catalogue 9018906006 — not listed in this catalogue 9046709242 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046708224 — not listed in this catalogue 75741 — MOULDING, REAR DOOR, OUTSIDE RH (3 parts) 75742 — MOULDING, REAR DOOR, OUTSIDE LH (3 parts)
7547CLA · 38 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
52161W — Piece, Front Bumper
52161-16010 Piece, Front Bumper
2023-01 → 2023-11 ended
AZSH35,TZSH35 —
90467-10216 Piece, Front Bumper
2023-12 → —
AZSH35,TZSH35 —
53853 — Pad, Front Wheel Opening Extension, NO.3
53853-30030 Pad, Front Wheel Opening Extension, NO.3
2023-01 → —
AZSH35,TZSH35 —
67855E — Protector, Front Door Panel, RH
76917-30010 Protector, Front Door Panel, RH
2023-01 → —
AZSH35,TZSH35 —
67856E — Protector, Front Door Panel, LH
76917-30010 Protector, Front Door Panel, LH
2023-01 → —
AZSH35,TZSH35 —
67857L — Protector, Rear Door Panel, RH
76925-30010 Protector, Rear Door Panel, RH
2023-01 → —
AZSH35,TZSH35 —
67858E — Protector, Rear Door Panel, LH
76925-30010 Protector, Rear Door Panel, LH
2023-01 → —
AZSH35,TZSH35 —
75073 — Moulding Sub-assy, Front Door, Outside Lower RH
75073-30020 note Moulding Sub-assy, Front Door, Outside Lower RH
2023-01 → 2024-04 ended
AZSH35,TZSH35 —
75073-30021 note Moulding Sub-assy, Front Door, Outside Lower RH
2024-04 → —
AZSH35,TZSH35 —
75074 — Moulding Sub-assy, Front Door, Outside Lower LH
75074-30020 note Moulding Sub-assy, Front Door, Outside Lower LH
2023-01 → 2024-04 ended
AZSH35,TZSH35 —
75074-30021 note Moulding Sub-assy, Front Door, Outside Lower LH
2024-04 → —
AZSH35,TZSH35 —
75077 — Moulding Sub-assy, Rear Door Outside Lower RH
75077-30030 note Moulding Sub-assy, Rear Door Outside Lower RH
2023-01 → 2023-07 ended
AZSH35,TZSH35 —
75077-30031 note Moulding Sub-assy, Rear Door Outside Lower RH
2023-08 → —
AZSH35,TZSH35 —
75078 — Moulding Sub-assy, Rear Door Outside Lower LH
75078-30030 note Moulding Sub-assy, Rear Door Outside Lower LH
2023-01 → 2023-07 ended
AZSH35,TZSH35 —
75078-30031 note Moulding Sub-assy, Rear Door Outside Lower LH
2023-08 → —
AZSH35,TZSH35 —
75392A — Retainer, Outside Moulding, NO.1
75392-33020 Retainer, Outside Moulding, NO.1
2023-01 → —
AZSH35,TZSH35 —
75392E — Retainer, Outside Moulding, NO.1
75392-33020 Retainer, Outside Moulding, NO.1
2023-01 → —
AZSH35,TZSH35 —
75392F — Retainer, Outside Moulding
75392-52030 Retainer, Outside Moulding
2023-01 → —
AZSH35,TZSH35 —
75396 — Clip, Outside Moulding, NO.2
75791-42010 Clip, Outside Moulding, NO.2
2023-01 → —
AZSH35,TZSH35 —
75601A — Moulding Sub-assy, Front Fender, RH
75601-30130 note Moulding Sub-assy, Front Fender, RH
2023-01 → 2023-07 ended
AZSH35,TZSH35 —
75601-30131 note Moulding Sub-assy, Front Fender, RH
2023-08 → 2024-03 ended
AZSH35,TZSH35 —
75601-30190 note Moulding Sub-assy, Front Fender, RH
2024-03 → —
AZSH35,TZSH35 —
75602A — Moulding Sub-assy, Front Fender, LH
75602-30120 note Moulding Sub-assy, Front Fender, LH
2023-01 → 2023-07 ended
AZSH35,TZSH35 —
75602-30121 note Moulding Sub-assy, Front Fender, LH
2023-08 → 2024-03 ended
AZSH35,TZSH35 —
75602-30180 note Moulding Sub-assy, Front Fender, LH
2024-03 → —
AZSH35,TZSH35 —
75605B — Moulding Sub-assy, Quarter Outside, RH
75605-30210 note Moulding Sub-assy, Quarter Outside, RH
2023-01 → —
AZSH35,TZSH35 —
75606B — Moulding Sub-assy, Quarter Outside, LH
75606-30210 note Moulding Sub-assy, Quarter Outside, LH
2023-01 → —
AZSH35,TZSH35 —
75691A — Pad, Front Fender Outside Moulding, RH
75798-30050 Pad, Front Fender Outside Moulding, RH
2023-01 → —
AZSH35,TZSH35 —
75692A — Pad, Front Fender Outside Moulding, LH
75798-30050 Pad, Front Fender Outside Moulding, LH
2023-01 → —
AZSH35,TZSH35 —
75699 — Pad, Body Outside Moulding, NO.4
75699-30100 Pad, Body Outside Moulding, NO.4
2024-03 → —
AZSH35,TZSH35 —
75731A — Moulding, Front Door, Outside RH
75731-30611 note Moulding, Front Door, Outside RH
2023-01 → 2023-06 ended
AZSH35,TZSH35 —
75731-30612 note Moulding, Front Door, Outside RH
2023-07 → 2024-04 ended
AZSH35,TZSH35 —
75731-30613 note Moulding, Front Door, Outside RH
2024-04 → —
AZSH35,TZSH35 —
75732A — Moulding, Front Door, Outside LH
75732-30611 note Moulding, Front Door, Outside LH
2023-01 → 2023-06 ended
AZSH35,TZSH35 —
75732-30612 note Moulding, Front Door, Outside LH
2023-07 → 2024-04 ended
AZSH35,TZSH35 —
75732-30613 note Moulding, Front Door, Outside LH
2024-04 → —
AZSH35,TZSH35 —
75741 — Moulding, Rear Door, Outside RH
75741-30611 note Moulding, Rear Door, Outside RH
2023-01 → 2023-06 ended
AZSH35,TZSH35 —
75741-30612 note Moulding, Rear Door, Outside RH
2023-07 → 2024-04 ended
AZSH35,TZSH35 —
75741-30613 note Moulding, Rear Door, Outside RH
2024-04 → —
AZSH35,TZSH35 —
75742 — Moulding, Rear Door, Outside LH
75742-30611 note Moulding, Rear Door, Outside LH
2023-01 → 2023-06 ended
AZSH35,TZSH35 —
75742-30612 note Moulding, Rear Door, Outside LH
2023-07 → 2024-04 ended
AZSH35,TZSH35 —
75742-30613 note Moulding, Rear Door, Outside LH
2024-04 → —
AZSH35,TZSH35 —
75787A — Pad, Front Door Outside Moulding, RH
75787-30040 Pad, Front Door Outside Moulding, RH
2023-01 → —
AZSH35,TZSH35 —
75788A — Pad, Front Door Outside Moulding, LH
75787-30040 Pad, Front Door Outside Moulding, LH
2023-01 → —
AZSH35,TZSH35 —
75793 — Pad, Front Door Outside Moulding, Upper
75793-30020 Pad, Front Door Outside Moulding, Upper
2023-01 → —
AZSH35,TZSH35 —
75797 — Pad, Rear Door Outside Moulding, Upper
75797-30020 Pad, Rear Door Outside Moulding, Upper
2023-01 → —
AZSH35,TZSH35 —
75797C — Pad, Rear Door Outside Moulding, Upper
75797-30030 Pad, Rear Door Outside Moulding, Upper
2023-01 → —
AZSH35,TZSH35 —
75850B — Screw, NO.3
90159-60602 Screw, NO.3
2023-01 → —
AZSH35,TZSH35 —
75850E — Grommet, NO.3
90189-06236 Grommet, NO.3
2023-01 → —
AZSH35,TZSH35 —
75859 — Protector, Front Fender Side
53821-30180 Protector, Front Fender Side
2024-03 → —
AZSH35,TZSH35 —
75860 — Protector, Front Fender Side, LH
53822-30170 Protector, Front Fender Side, LH
2024-03 → —
AZSH35,TZSH35 —
75867A — Clip, Rocker Panel Moulding
75867-68010 Clip, Rocker Panel Moulding
2023-01 → —
AZSH35,TZSH35 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
