Toyota Crown
2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States
Supported model
Data version 2022-12

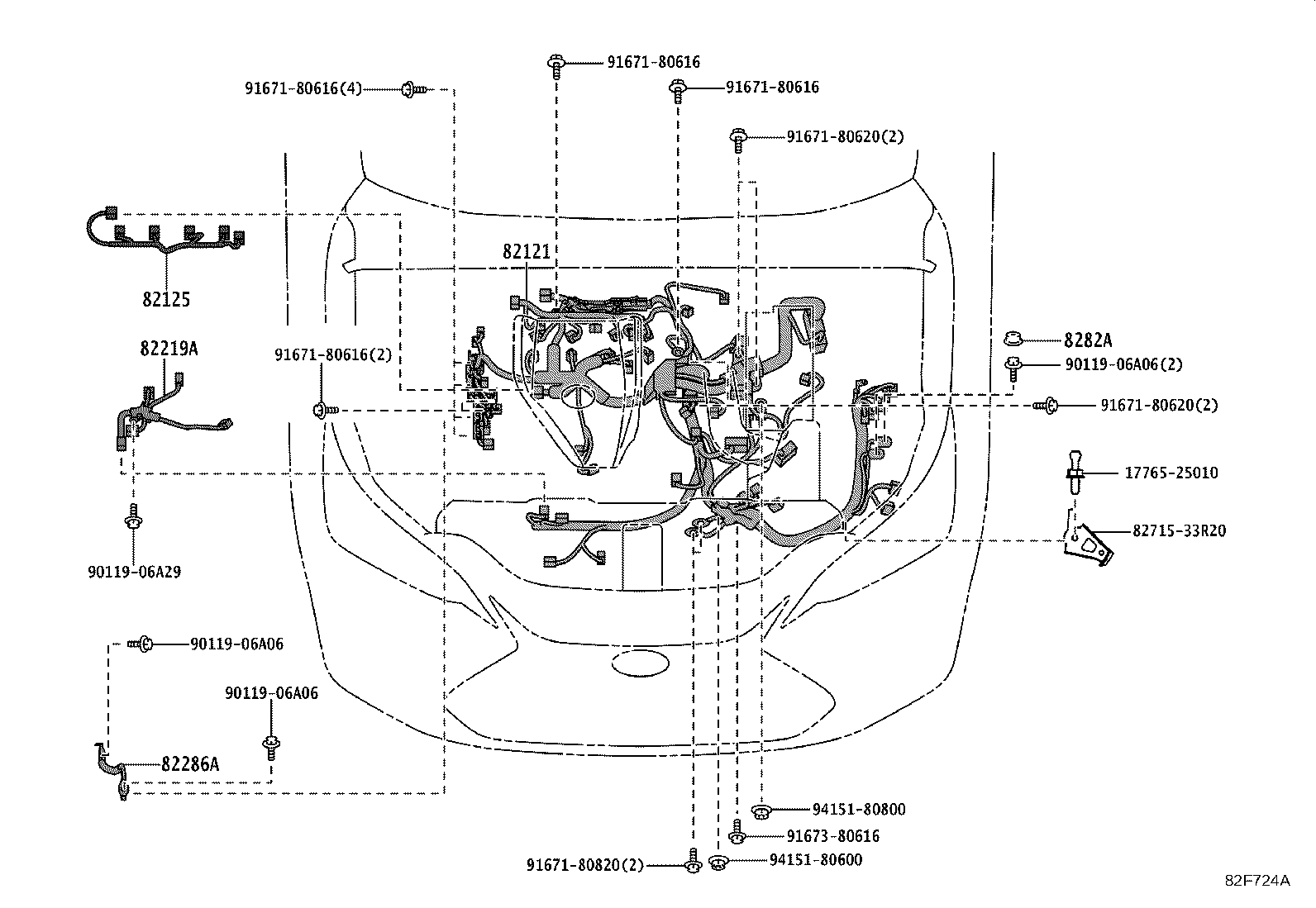

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-30L80 |
Wire, Engine
2023-01 → —
|
AZSH35 | — | |
| 82121-30M00 |
Wire, Engine
2023-01 → 2024-04
ended
|
TZSH35 | — | |
| 82121-30M01 |
Wire, Engine
2024-04 → —
|
TZSH35 | — | |
| 82125 — Wire, Transmission | ||||
| 82125-78020 |
Wire, Transmission
2023-01 → —
|
TZSH35 | — | |
| 82219A — Wire, Sensor | ||||
| 82219-33141 |
Wire, Sensor
2023-01 → —
|
AZSH35 | — | |
| 82219-78030 |
Wire, Sensor
2023-01 → —
|
TZSH35 | — | |
| 82286A — Wire, Earth, NO.2 | ||||
| 82286-42050 |
Wire, Earth, NO.2
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 8282A — Cap, Earth Bolt, NO.1 | ||||
| 8282A-52010 |
Cap, Earth Bolt, NO.1
2023-01 → —
|
AZSH35,TZSH35 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
