Toyota Crown

2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

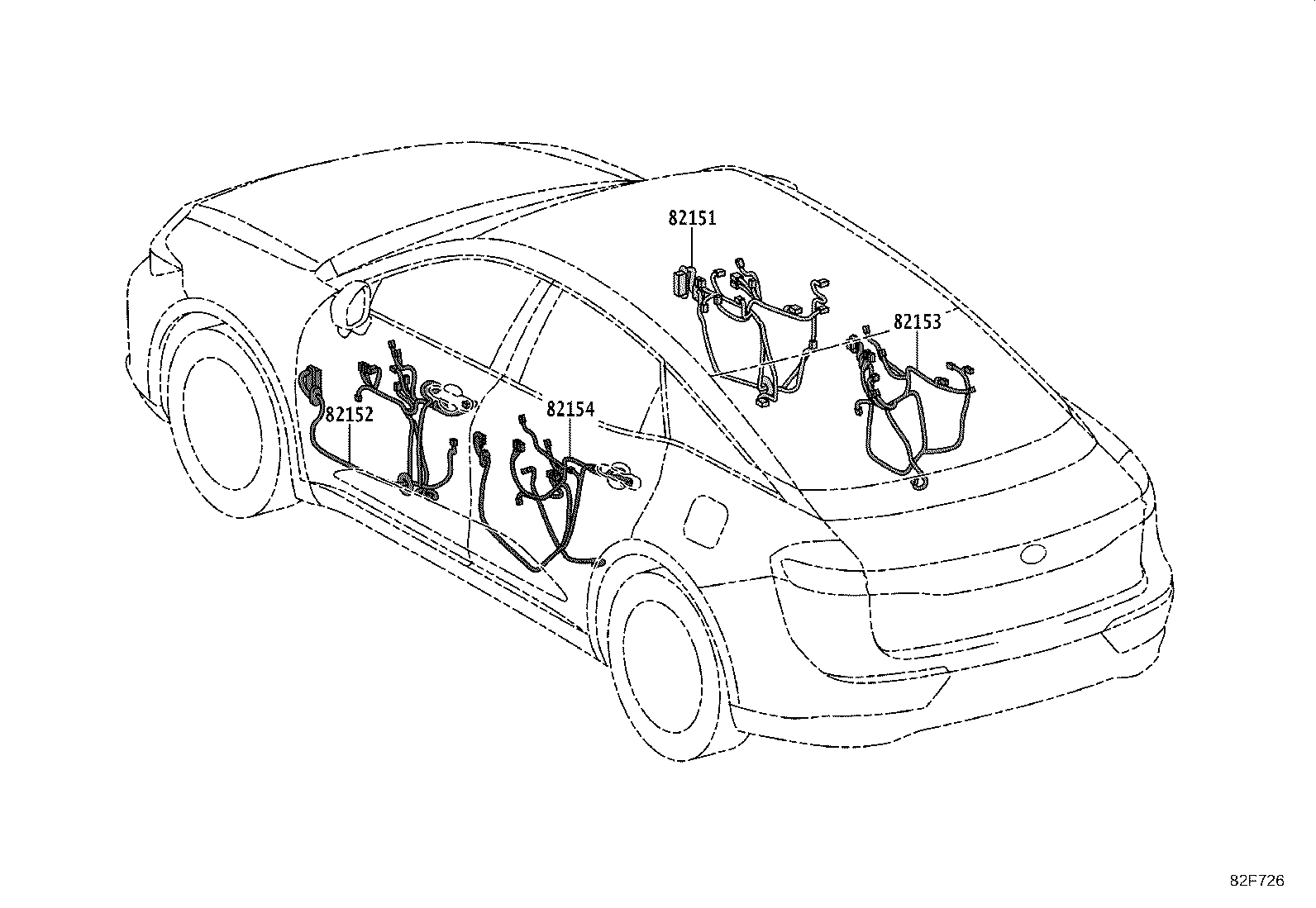

Exploded illustration 82F726 82151 — WIRE, FRONT DOOR, RH (9 parts) 82152 — WIRE, FRONT DOOR, LH (8 parts) 82154 — WIRE, REAR DOOR, NO.2 (21 parts) 82153 — WIRE, REAR DOOR, NO.1 (21 parts)
82F726 · 4 callouts Full size ↗
59 parts on this figure
Part number Description Fitment Price
82151 — Wire, Front Door, RH
82151-30K20 Wire, Front Door, RH
2023-01 → 2024-04 ended
AZSH35 —
82151-30K80 note Wire, Front Door, RH
2023-01 → —
TZSH35 —
82151-30K80 note Wire, Front Door, RH
2023-01 → —
AZSH35 —
82151-30K90 Wire, Front Door, RH
2023-01 → —
TZSH35 —
82151-30K90 note Wire, Front Door, RH
2023-01 → —
AZSH35 —
82151-30K90 note Wire, Front Door, RH
2023-01 → 2023-10 ended
AZSH35 —
82151-30L70 note Wire, Front Door, RH
2023-01 → 2024-04 ended
AZSH35 —
82151-30L80 note Wire, Front Door, RH
2023-01 → 2024-04 ended
AZSH35 —
82151-30L80 Wire, Front Door, RH
2024-04 → —
AZSH35 —
82152 — Wire, Front Door, LH
82152-30J00 Wire, Front Door, LH
2023-01 → 2024-04 ended
AZSH35 —
82152-30J60 note Wire, Front Door, LH
2023-01 → —
AZSH35 —
82152-30J70 note Wire, Front Door, LH
2023-01 → 2023-10 ended
AZSH35 —
82152-30J70 Wire, Front Door, LH
2023-01 → —
TZSH35 —
82152-30J70 note Wire, Front Door, LH
2023-01 → —
AZSH35 —
82152-30K40 note Wire, Front Door, LH
2023-01 → 2024-04 ended
AZSH35 —
82152-30K40 Wire, Front Door, LH
2024-04 → —
AZSH35 —
82152-30K50 note Wire, Front Door, LH
2023-01 → —
AZSH35 —
82153 — Wire, Rear Door, NO.1
82153-30890 Wire, Rear Door, NO.1
2023-01 → 2024-04 ended
AZSH35 —
82153-30B00 Wire, Rear Door, NO.1
2024-04 → —
AZSH35 —
82153-30B00 note Wire, Rear Door, NO.1
2023-01 → 2023-10 ended
AZSH35 —
82153-30B00 note Wire, Rear Door, NO.1
2023-10 → 2024-04 ended
TZSH35 —
82153-30B00 note Wire, Rear Door, NO.1
2023-10 → 2024-04 ended
TZSH35 —
82153-30B00 note Wire, Rear Door, NO.1
2023-10 → 2024-04 ended
AZSH35 —
82153-30B00 note Wire, Rear Door, NO.1
2023-10 → 2024-04 ended
AZSH35 —
82153-30B10 note Wire, Rear Door, NO.1
2023-10 → 2024-04 ended
AZSH35 —
82153-30B10 note Wire, Rear Door, NO.1
2023-01 → 2023-10 ended
AZSH35 —
82153-30B10 note Wire, Rear Door, NO.1
2024-04 → —
AZSH35 —
82153-30B10 Wire, Rear Door, NO.1
2023-01 → —
TZSH35 —
82153-30B40 note Wire, Rear Door, NO.1
2024-04 → —
AZSH35 —
82153-30B40 note Wire, Rear Door, NO.1
2023-01 → 2023-10 ended
AZSH35 —
82153-30B40 note Wire, Rear Door, NO.1
2023-01 → 2023-10 ended
AZSH35 —
82153-30B40 note Wire, Rear Door, NO.1
2023-10 → 2024-04 ended
AZSH35 —
82153-30B40 Wire, Rear Door, NO.1
2023-01 → —
TZSH35 —
82153-30B70 note Wire, Rear Door, NO.1
2023-10 → 2024-04 ended
AZSH35 —
82153-30B70 note Wire, Rear Door, NO.1
2023-01 → 2023-10 ended
AZSH35 —
82153-30E60 note Wire, Rear Door, NO.1
2023-10 → 2024-04 ended
AZSH35 —
82153-30E60 note Wire, Rear Door, NO.1
2024-04 → —
AZSH35 —
82153-30E60 note Wire, Rear Door, NO.1
2023-10 → 2024-04 ended
TZSH35 —
82154 — Wire, Rear Door, NO.2
82154-30810 Wire, Rear Door, NO.2
2023-01 → 2024-04 ended
AZSH35 —
82154-30A20 note Wire, Rear Door, NO.2
2023-10 → 2024-04 ended
TZSH35 —
82154-30A20 Wire, Rear Door, NO.2
2024-04 → —
AZSH35 —
82154-30A20 note Wire, Rear Door, NO.2
2023-10 → 2024-04 ended
TZSH35 —
82154-30A20 note Wire, Rear Door, NO.2
2023-10 → 2024-04 ended
AZSH35 —
82154-30A20 note Wire, Rear Door, NO.2
2023-10 → 2024-04 ended
AZSH35 —
82154-30A20 note Wire, Rear Door, NO.2
2023-01 → 2023-10 ended
AZSH35 —
82154-30A30 note Wire, Rear Door, NO.2
2023-01 → 2023-10 ended
AZSH35 —
82154-30A30 note Wire, Rear Door, NO.2
2023-10 → 2024-04 ended
AZSH35 —
82154-30A30 Wire, Rear Door, NO.2
2023-01 → —
TZSH35 —
82154-30A30 note Wire, Rear Door, NO.2
2024-04 → —
AZSH35 —
82154-30A60 note Wire, Rear Door, NO.2
2023-01 → 2023-10 ended
AZSH35 —
82154-30A60 note Wire, Rear Door, NO.2
2023-01 → 2023-10 ended
AZSH35 —
82154-30A60 note Wire, Rear Door, NO.2
2023-10 → 2024-04 ended
AZSH35 —
82154-30A60 Wire, Rear Door, NO.2
2023-01 → —
TZSH35 —
82154-30A60 note Wire, Rear Door, NO.2
2024-04 → —
AZSH35 —
82154-30A90 note Wire, Rear Door, NO.2
2023-01 → 2023-10 ended
AZSH35 —
82154-30A90 note Wire, Rear Door, NO.2
2023-10 → 2024-04 ended
AZSH35 —
82154-30D80 note Wire, Rear Door, NO.2
2023-10 → 2024-04 ended
AZSH35 —
82154-30D80 note Wire, Rear Door, NO.2
2023-10 → 2024-04 ended
TZSH35 —
82154-30D80 note Wire, Rear Door, NO.2
2024-04 → —
AZSH35 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
