Toyota Crown

2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 82F727H 9011906A06 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9167380618 — not listed in this catalogue 91671A0616 — not listed in this catalogue 91673A0616 — not listed in this catalogue 890C0 — WIRE ASSY, PARKING BRAKE, NO.1 (2 parts) 82171 — WIRE, ROOF, NO.1 (11 parts) 82163B — WIRE, FLOOR NO.5 (1 parts) 82181 — WIRE, LUGGAGE ROOM, NO.1 (21 parts) 82182 — WIRE, LUGGAGE ROOM, NO.2 (9 parts) 89515 — CLIP (1 parts) 89515 — CLIP (1 parts) 82670 — BLOCK ASSY, JUNCTION, NO.1 (1 parts) 82161 — WIRE, FLOOR (13 parts) 82412 — WIRE, FUEL GAGE (1 parts) 89348Y — CLIP, ULTRASONIC SENSOR, REAR (4 parts) 89348Y — CLIP, ULTRASONIC SENSOR, REAR (4 parts) 91673A0616 — not listed in this catalogue 9011906A06 — not listed in this catalogue 82164C — WIRE, FLOOR, NO.4 (4 parts) 9017806026 — not listed in this catalogue 82164C — WIRE, FLOOR, NO.4 (4 parts) 9011906A06 — not listed in this catalogue 9011906A06 — not listed in this catalogue 82163 — WIRE, FLOOR, NO.3 (1 parts) 8216B — WIRE, FLOOR NO.8 (1 parts) 890C0A — WIRE ASSY, PARKING BRAKE, NO.2 (4 parts) 91673A0616 — not listed in this catalogue 9011906A31 — not listed in this catalogue 91671A0616 — not listed in this catalogue 82819C — GROMMET, WIRING HARNESS (2 parts) 8601 — not listed in this catalogue 8601 — not listed in this catalogue 8401 — not listed in this catalogue

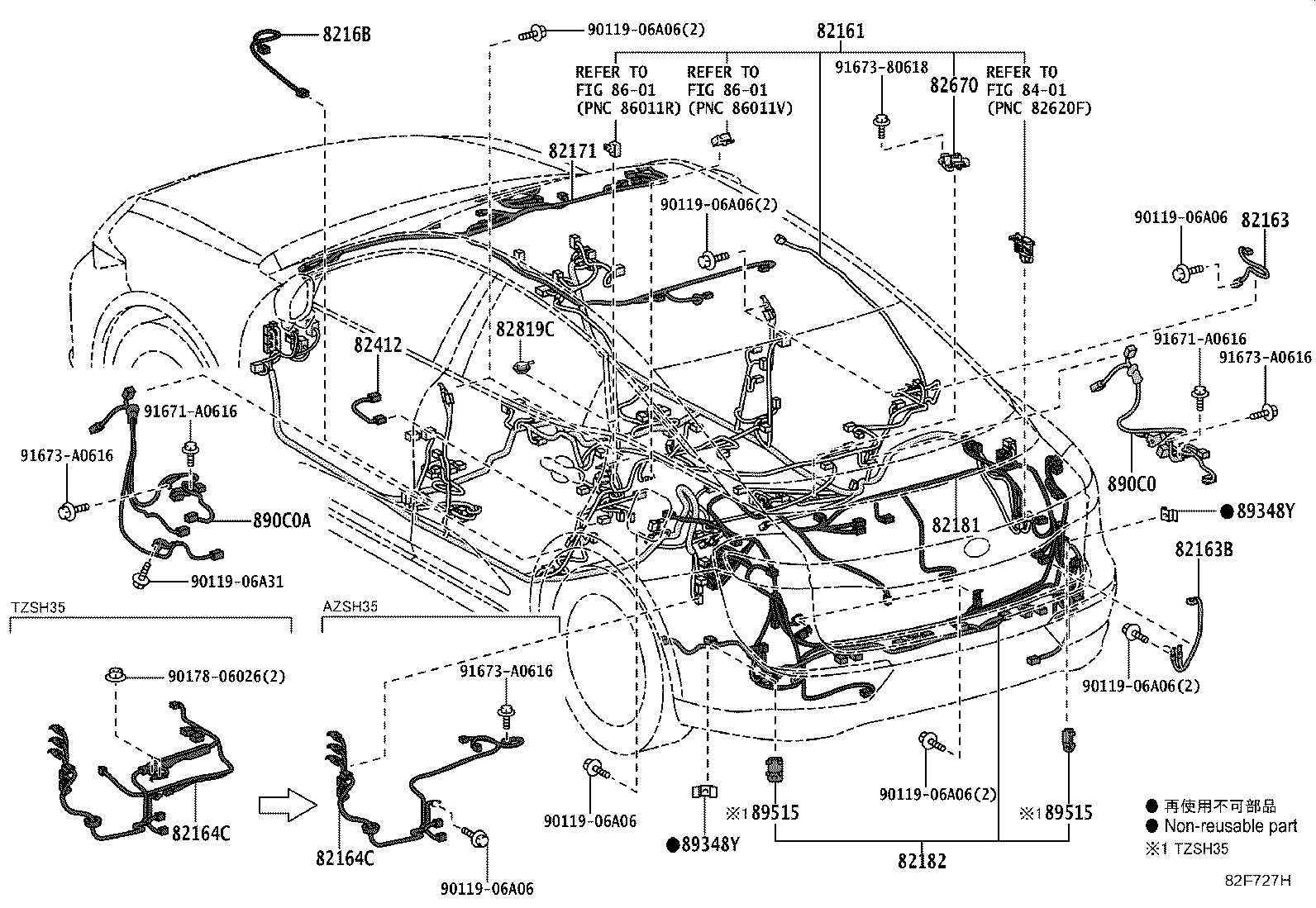

82F727H · 18 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
76 parts on this figure
Part number Description Fitment Price
82161 — Wire, Floor
82161-3AY30 note Wire, Floor
2023-01 → 2023-10 ended
AZSH35 —
82161-3AY30 note Wire, Floor
2023-01 → 2023-10 ended
AZSH35 —
82161-3AY31 note Wire, Floor
2023-10 → 2024-04 ended
AZSH35 —
82161-3AY31 note Wire, Floor
2023-10 → 2024-04 ended
AZSH35 —
82161-3AY32 note Wire, Floor
2024-04 → —
AZSH35 —
82161-3FB70 Wire, Floor
2023-01 → 2023-10 ended
TZSH35 —
82161-3FB71 Wire, Floor
2023-10 → 2024-04 ended
TZSH35 —
82161-3FC30 Wire, Floor
2023-01 → 2023-10 ended
AZSH35 —
82161-3FC31 Wire, Floor
2023-10 → 2024-04 ended
AZSH35 —
82161-3FC90 note Wire, Floor
2023-01 → 2023-10 ended
AZSH35 —
82161-3FC91 note Wire, Floor
2023-10 → 2024-04 ended
AZSH35 —
82161-3FP40 Wire, Floor
2024-04 → —
TZSH35 —
82161-3FP50 Wire, Floor
2024-04 → —
AZSH35 —
82163 — Wire, Floor, NO.3
82163-30130 Wire, Floor, NO.3
2023-01 → —
AZSH35,TZSH35 —
82163B — Wire, Floor NO.5
82165-30050 Wire, Floor NO.5
2023-01 → —
AZSH35,TZSH35 —
82164C — Wire, Floor, NO.4
82164-30280 Wire, Floor, NO.4
2023-10 → 2024-04 ended
TZSH35 —
82164-30281 Wire, Floor, NO.4
2024-04 → —
TZSH35 —
82164-30290 Wire, Floor, NO.4
2023-01 → —
AZSH35 —
82164-30300 Wire, Floor, NO.4
2023-01 → 2023-10 ended
TZSH35 —
8216B — Wire, Floor NO.8
8216B-42010 Wire, Floor NO.8
2023-01 → —
AZSH35,TZSH35 —
82171 — Wire, Roof, NO.1
82171-30Z10 Wire, Roof, NO.1
2023-01 → 2023-09 ended
AZSH35 —
82171-30Z11 Wire, Roof, NO.1
2023-10 → 2024-04 ended
AZSH35 —
82171-30Z12 Wire, Roof, NO.1
2024-04 → —
AZSH35 —
82171-3A150 note Wire, Roof, NO.1
2023-01 → 2024-04 ended
AZSH35 —
82171-3A150 note Wire, Roof, NO.1
2023-10 → 2024-04 ended
AZSH35 —
82171-3A150 Wire, Roof, NO.1
2023-01 → 2024-04 ended
TZSH35 —
82171-3A150 note Wire, Roof, NO.1
2023-01 → 2023-10 ended
AZSH35 —
82171-3A151 Wire, Roof, NO.1
2024-04 → —
TZSH35 —
82171-3A151 note Wire, Roof, NO.1
2024-04 → —
AZSH35 —
82171-3A250 note Wire, Roof, NO.1
2023-10 → 2024-04 ended
AZSH35 —
82171-3A250 note Wire, Roof, NO.1
2023-01 → 2023-10 ended
AZSH35 —
82181 — Wire, Luggage Room, NO.1
82181-30730 Wire, Luggage Room, NO.1
2024-04 → —
TZSH35 —
82181-30880 Wire, Luggage Room, NO.1
2023-01 → 2023-10 ended
AZSH35 —
82181-30881 Wire, Luggage Room, NO.1
2023-10 → 2024-04 ended
AZSH35 —
82181-30882 Wire, Luggage Room, NO.1
2024-04 → —
AZSH35 —
82181-30890 note Wire, Luggage Room, NO.1
2023-01 → 2023-10 ended
TZSH35 —
82181-30890 note Wire, Luggage Room, NO.1
2023-01 → 2023-10 ended
AZSH35 —
82181-30A00 Wire, Luggage Room, NO.1
2023-01 → 2023-10 ended
TZSH35 —
82181-30A01 Wire, Luggage Room, NO.1
2023-10 → 2024-04 ended
TZSH35 —
82181-30A40 Wire, Luggage Room, NO.1
2023-01 → 2023-10 ended
TZSH35 —
82181-30A40 note Wire, Luggage Room, NO.1
2023-01 → 2023-10 ended
AZSH35 —
82181-30A40 note Wire, Luggage Room, NO.1
2023-01 → 2023-10 ended
AZSH35 —
82181-30A41 Wire, Luggage Room, NO.1
2023-10 → 2024-04 ended
TZSH35 —
82181-30A41 note Wire, Luggage Room, NO.1
2023-10 → 2024-04 ended
AZSH35 —
82181-30A42 note Wire, Luggage Room, NO.1
2024-04 → —
AZSH35 —
82181-30A71 note Wire, Luggage Room, NO.1
2024-04 → —
TZSH35 —
82181-30A71 note Wire, Luggage Room, NO.1
2024-04 → —
AZSH35 —
82181-30B20 note Wire, Luggage Room, NO.1
2023-01 → 2023-10 ended
AZSH35 —
82181-30B21 note Wire, Luggage Room, NO.1
2023-10 → 2024-04 ended
AZSH35 —
82181-30E60 note Wire, Luggage Room, NO.1
2023-10 → 2024-04 ended
AZSH35 —
82181-30E60 note Wire, Luggage Room, NO.1
2023-10 → 2024-04 ended
TZSH35 —
82181-30E80 Wire, Luggage Room, NO.1
2024-04 → —
TZSH35 —
82182 — Wire, Luggage Room, NO.2
82182-30430 note Wire, Luggage Room, NO.2
2023-01 → 2024-04 ended
TZSH35 —
82182-30440 note Wire, Luggage Room, NO.2
2023-01 → 2025-04 ended
AZSH35 —
82182-30450 Wire, Luggage Room, NO.2
2023-01 → 2024-04 ended
TZSH35 —
82182-30550 note Wire, Luggage Room, NO.2
2023-01 → 2024-04 ended
AZSH35 —
82182-30550 note Wire, Luggage Room, NO.2
2023-01 → 2024-04 ended
AZSH35 —
82182-30570 Wire, Luggage Room, NO.2
2023-01 → 2025-04 ended
AZSH35 —
82182-30780 note Wire, Luggage Room, NO.2
2024-04 → 2025-04 ended
AZSH35 —
82182-30790 note Wire, Luggage Room, NO.2
2024-04 → 2025-04 ended
TZSH35 —
82182-30800 Wire, Luggage Room, NO.2
2024-04 → 2025-04 ended
TZSH35 —
82412 — Wire, Fuel Gage
82412-42180 Wire, Fuel Gage
2023-01 → —
AZSH35,TZSH35 —
82670 — Block Assy, Junction, NO.1
82670-30370 Block Assy, Junction, NO.1
2023-01 → —
AZSH35,TZSH35 —
82819C — Grommet, Wiring Harness
82819-48700 Grommet, Wiring Harness
2023-01 → 2024-04 ended
AZSH35,TZSH35 —
82819-48700 note Grommet, Wiring Harness
2024-04 → —
AZSH35 —
890C0 — Wire Assy, Parking Brake, NO.1
890C0-30070 Wire Assy, Parking Brake, NO.1
2023-01 → —
AZSH35 —
890C0-30090 Wire Assy, Parking Brake, NO.1
2023-01 → —
TZSH35 —
890C0A — Wire Assy, Parking Brake, NO.2
890C0-30080 Wire Assy, Parking Brake, NO.2
2023-01 → —
AZSH35 —
890C0-30120 note Wire Assy, Parking Brake, NO.2
2023-01 → —
AZSH35 —
890C0-30120 note Wire Assy, Parking Brake, NO.2
2023-01 → —
AZSH35 —
890C0-30130 Wire Assy, Parking Brake, NO.2
2023-01 → —
TZSH35 —
89348Y — Clip, Ultrasonic Sensor, Rear
89348-30A00 Clip, Ultrasonic Sensor, Rear
2024-04 → —
TZSH35 —
89348-30A00 Clip, Ultrasonic Sensor, Rear
2024-04 → —
AZSH35 —
89348-50050 Clip, Ultrasonic Sensor, Rear
2023-01 → 2024-04 ended
TZSH35 —
89348-50050 Clip, Ultrasonic Sensor, Rear
2023-01 → 2024-04 ended
AZSH35 —
89515 — Clip
89348-58130 Clip
2023-01 → —
TZSH35 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
