Toyota Crown
2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States
Supported model
Data version 2022-12

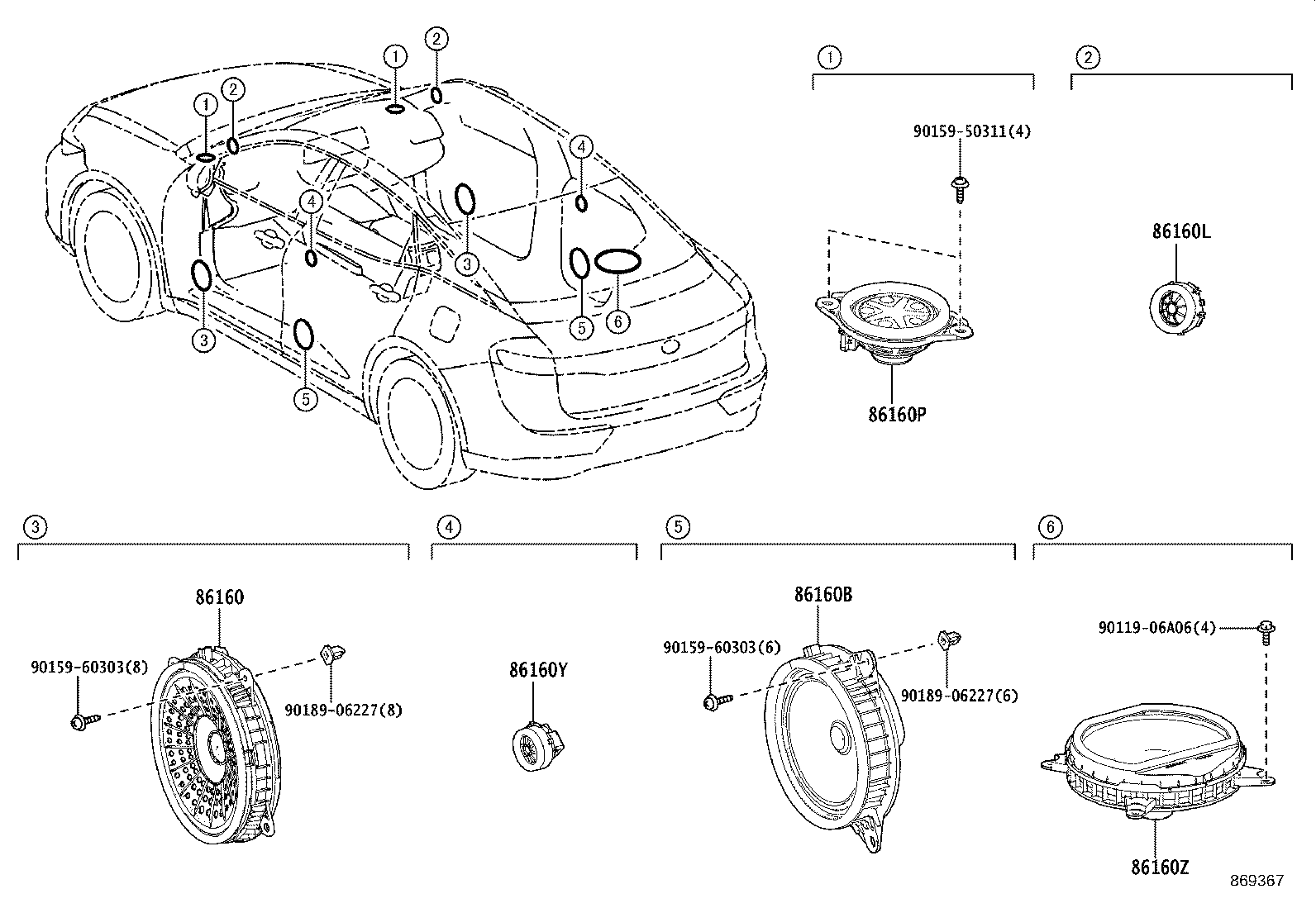

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-30F70 note |
Speaker Assy, Front NO.1
2023-10 → 2024-04
ended
|
TZSH35 | — | |
| 86160-30F70 note |
Speaker Assy, Front NO.1
2023-10 → 2024-04
ended
|
TZSH35 | — | |
| 86160-30F70 |
Speaker Assy, Front NO.1
2023-01 → —
|
AZSH35 | — | |
| 86160-30F70 note |
Speaker Assy, Front NO.1
2023-01 → 2023-10
ended
|
AZSH35 | — | |
| 86160-33A10 note |
Speaker Assy, Front NO.1
2023-01 → 2023-10
ended
|
AZSH35 | — | |
| 86160-33A10 |
Speaker Assy, Front NO.1
2023-01 → —
|
TZSH35 | — | |
| 86160-33A10 note |
Speaker Assy, Front NO.1
2023-10 → —
|
AZSH35 | — | |
| 86160B — Speaker Assy, Rear | ||||
| 86160-30E00 note |
Speaker Assy, Rear
2023-01 → 2023-10
ended
|
AZSH35 | — | |
| 86160-30E00 note |
Speaker Assy, Rear
2023-10 → 2024-04
ended
|
TZSH35 | — | |
| 86160-30E00 note |
Speaker Assy, Rear
2023-10 → 2024-04
ended
|
TZSH35 | — | |
| 86160-30E00 |
Speaker Assy, Rear
2023-01 → —
|
AZSH35 | — | |
| 86160-62020 note |
Speaker Assy, Rear
2023-01 → 2023-10
ended
|
AZSH35 | — | |
| 86160-62020 |
Speaker Assy, Rear
2023-01 → —
|
TZSH35 | — | |
| 86160-62020 note |
Speaker Assy, Rear
2023-10 → —
|
AZSH35 | — | |
| 86160L — Speaker Assy, Front NO.4 | ||||
| 86150-33060 |
Speaker Assy, Front NO.4
2023-01 → —
|
TZSH35 | — | |
| 86150-33060 note |
Speaker Assy, Front NO.4
2023-10 → —
|
AZSH35 | — | |
| 86150-33060 note |
Speaker Assy, Front NO.4
2023-01 → 2023-10
ended
|
AZSH35 | — | |
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86160-28830 note |
Speaker Assy, Front NO.2
2023-01 → 2023-10
ended
|
AZSH35 | — | |
| 86160-28830 note |
Speaker Assy, Front NO.2
2023-10 → 2024-04
ended
|
TZSH35 | — | |
| 86160-28830 note |
Speaker Assy, Front NO.2
2023-10 → 2024-04
ended
|
TZSH35 | — | |
| 86160-28830 |
Speaker Assy, Front NO.2
2023-01 → —
|
AZSH35 | — | |
| 86160-42200 note |
Speaker Assy, Front NO.2
2023-01 → 2023-10
ended
|
AZSH35 | — | |
| 86160-42200 |
Speaker Assy, Front NO.2
2023-01 → —
|
TZSH35 | — | |
| 86160-42200 note |
Speaker Assy, Front NO.2
2023-10 → —
|
AZSH35 | — | |
| 86160Y — Speaker Assy, Rear NO.2 | ||||
| 86150-42080 note |
Speaker Assy, Rear NO.2
2023-01 → 2023-10
ended
|
AZSH35 | — | |
| 86150-42080 |
Speaker Assy, Rear NO.2
2023-01 → —
|
TZSH35 | — | |
| 86150-42080 note |
Speaker Assy, Rear NO.2
2023-10 → —
|
AZSH35 | — | |
| 86160Z — Speaker Assy, Rear NO.3 | ||||
| 86150-30650 note |
Speaker Assy, Rear NO.3
2023-01 → 2023-10
ended
|
AZSH35 | — | |
| 86150-30650 |
Speaker Assy, Rear NO.3
2023-01 → —
|
TZSH35 | — | |
| 86150-30650 note |
Speaker Assy, Rear NO.3
2023-10 → —
|
AZSH35 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
