Toyota Crown

2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

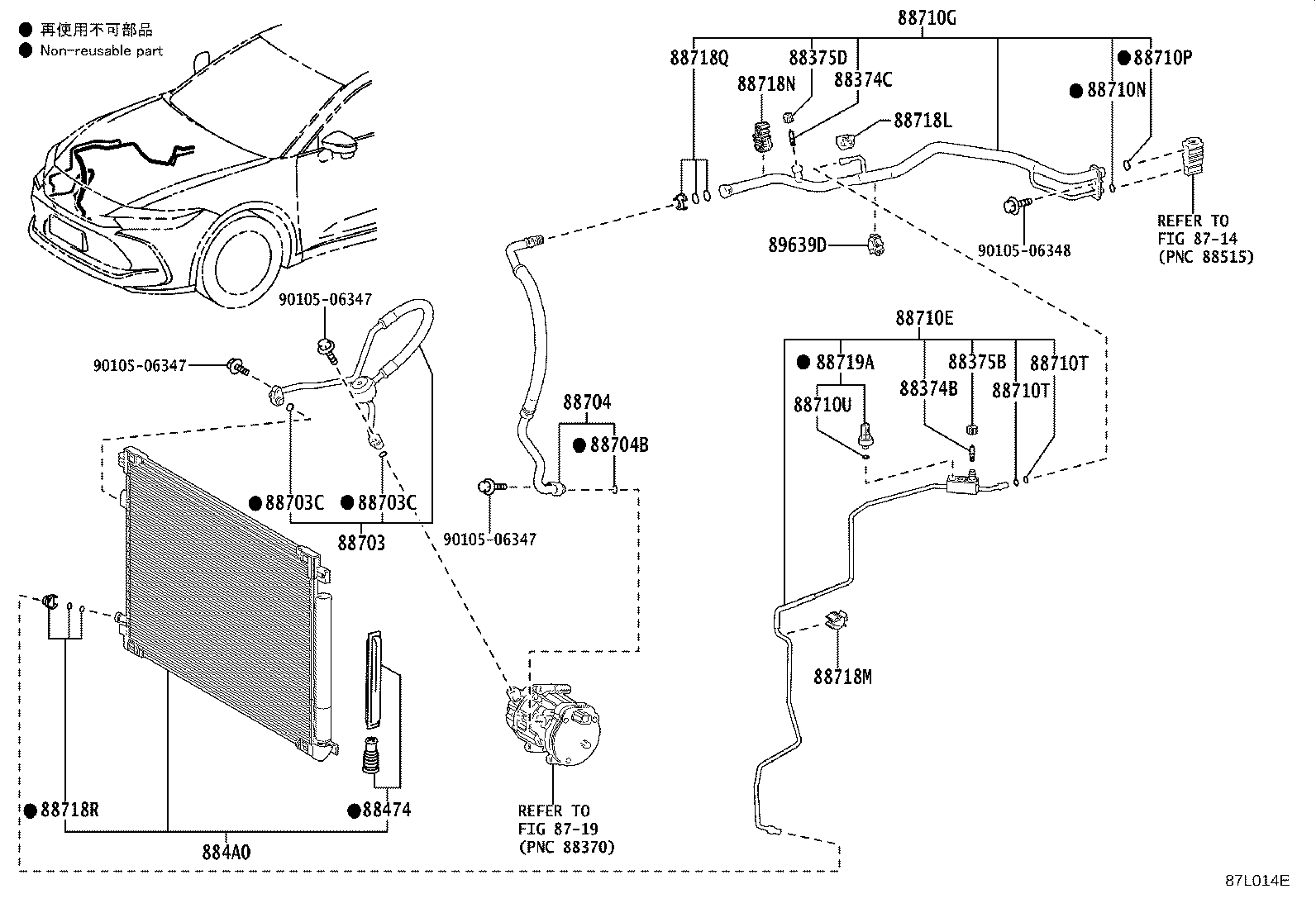

Exploded illustration 87L014E 88710G — TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 (2 parts) 88375D — CAP, SERVICE VALVE, NO.2 (2 parts) 88718Q — CLAMP, PIPING (1 parts) 88374C — VALVE, SERVICE, NO.2 (1 parts) 88710P — RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) (1 parts) 88710N — RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) (1 parts) 9010506348 — not listed in this catalogue 89639D — CLAMP, AIRCONDITIONER TUBE (1 parts) 8714 — not listed in this catalogue 88718N — CLAMP, PIPING (1 parts) 88718L — CLAMP, PIPING (1 parts) 88703C — RING, O(FOR DISCHARGE HOSE) (1 parts) 88703C — RING, O(FOR DISCHARGE HOSE) (1 parts) 88704B — RING, O(FOR SUCTION HOSE) (1 parts) 88703 — HOSE SUB-ASSY, DISCHARGE (3 parts) 88704 — HOSE SUB-ASSY, SUCTION (2 parts) 8719 — not listed in this catalogue 88474 — DRYER, COOLER (1 parts) 88718R — CLAMP, PIPING (1 parts) 884A0 — CONDENSER ASSY, COOLER (1 parts) 9010506347 — not listed in this catalogue 9010506347 — not listed in this catalogue 9010506347 — not listed in this catalogue 88718M — CLAMP, PIPING (1 parts) 88374B — VALVE, SERVICE, NO.1 (1 parts) 88375B — CAP, SERVICE VALVE, NO.1 (2 parts) 88719A — SENSOR, AIR CONDITIONER PRESSURE (1 parts) 88710U — RING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) (1 parts) 88710T — RING, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) (1 parts) 88710T — RING, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER) (1 parts) 88710E — TUBE & ACCESSORY ASSY, AIR CONDITIONER (4 parts)
87L014E · 25 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
88374B — Valve, Service, NO.1
88374-30010 Valve, Service, NO.1
2023-01 → —
AZSH35,TZSH35 —
88374C — Valve, Service, NO.2
88374-30010 Valve, Service, NO.2
2023-01 → —
AZSH35,TZSH35 —
88375B — Cap, Service Valve, NO.1
88375-30280 note Cap, Service Valve, NO.1
2023-01 → —
AZSH35,TZSH35 —
88375-30320 Cap, Service Valve, NO.1
2023-01 → —
AZSH35,TZSH35 —
88375D — Cap, Service Valve, NO.2
88375-30290 note Cap, Service Valve, NO.2
2023-01 → —
AZSH35,TZSH35 —
88375-30310 Cap, Service Valve, NO.2
2023-01 → —
AZSH35,TZSH35 —
88474 — Dryer, Cooler
88474-12010 Dryer, Cooler
2023-01 → —
AZSH35,TZSH35 —
884A0 — Condenser Assy, Cooler
884A0-42070 Condenser Assy, Cooler
2023-01 → —
AZSH35,TZSH35 —
88703 — Hose Sub-assy, Discharge
88711-30A50 Hose Sub-assy, Discharge
2023-01 → 2023-10 ended
AZSH35 —
88711-30A51 Hose Sub-assy, Discharge
2023-10 → —
AZSH35 —
88711-30A60 Hose Sub-assy, Discharge
2023-01 → —
TZSH35 —
88703C — Ring, O(FOR DISCHARGE HOSE)
90099-14120 note Ring, O(FOR DISCHARGE HOSE)
2023-01 → —
AZSH35,TZSH35 —
88704 — Hose Sub-assy, Suction
88704-30A10 Hose Sub-assy, Suction
2023-01 → —
AZSH35 —
88704-30A20 Hose Sub-assy, Suction
2023-01 → —
TZSH35 —
88704B — Ring, O(FOR SUCTION HOSE)
90099-14121 note Ring, O(FOR SUCTION HOSE)
2023-01 → —
AZSH35,TZSH35 —
88710E — Tube & Accessory Assy, Air Conditioner
88710-30B00 Tube & Accessory Assy, Air Conditioner
2023-01 → —
AZSH35 —
88710-30B10 Tube & Accessory Assy, Air Conditioner
2023-01 → —
TZSH35 —
88710-30B30 note Tube & Accessory Assy, Air Conditioner
2023-01 → —
AZSH35 —
88710-30B40 note Tube & Accessory Assy, Air Conditioner
2023-01 → —
TZSH35 —
88710G — Tube & Accessory Assy, Air Conditioner, NO.2
88710-30B20 Tube & Accessory Assy, Air Conditioner, NO.2
2023-01 → —
AZSH35,TZSH35 —
88710-30B70 note Tube & Accessory Assy, Air Conditioner, NO.2
2023-01 → —
AZSH35,TZSH35 —
88710N — Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
90099-14119 note Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
2023-01 → —
AZSH35,TZSH35 —
88710P — Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
90099-14121 note Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
2023-01 → —
AZSH35,TZSH35 —
88710T — Ring, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
90099-14119 note Ring, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
2023-01 → —
AZSH35,TZSH35 —
88710U — Ring, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
90099-14122 note Ring, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
2023-01 → —
AZSH35,TZSH35 —
88718L — Clamp, Piping
88718-2D150 Clamp, Piping
2023-01 → —
AZSH35,TZSH35 —
88718M — Clamp, Piping
88718-2F110 Clamp, Piping
2023-01 → —
AZSH35,TZSH35 —
88718N — Clamp, Piping
88718-42120 Clamp, Piping
2023-01 → —
AZSH35,TZSH35 —
88718Q — Clamp, Piping
88718-52280 Clamp, Piping
2023-01 → —
AZSH35,TZSH35 —
88718R — Clamp, Piping
88718-1E150 Clamp, Piping
2023-01 → —
AZSH35,TZSH35 —
88719A — Sensor, Air Conditioner Pressure
88719-11010 Sensor, Air Conditioner Pressure
2023-01 → —
AZSH35,TZSH35 —
89639D — Clamp, Airconditioner Tube
89639-58020 Clamp, Airconditioner Tube
2023-01 → —
AZSH35,TZSH35 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
