Toyota Crown

2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

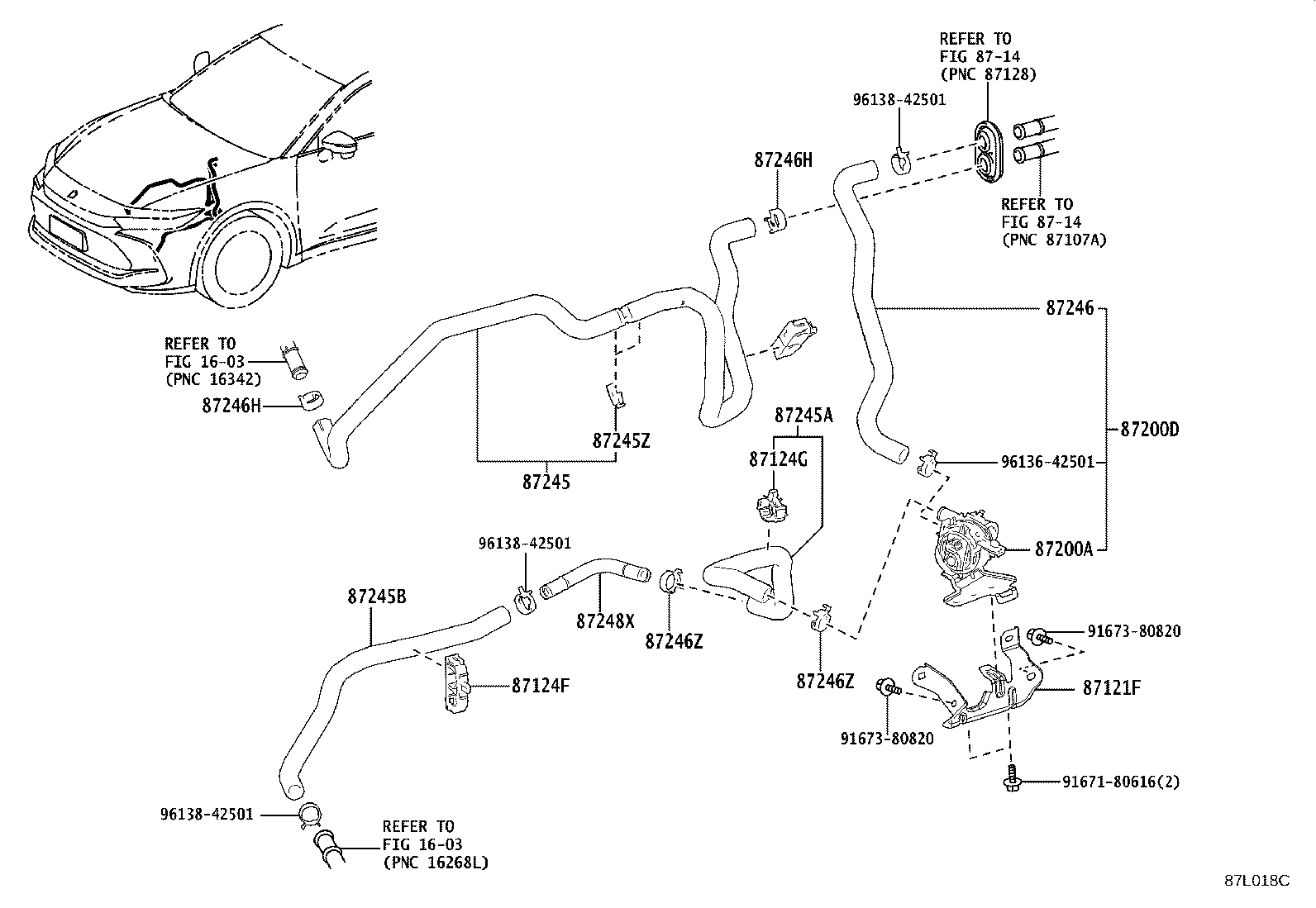

Exploded illustration 87L018C 87246H — CLIP OR CLAMP(FOR HEATER WATER HOSE) (2 parts) 87246Z — CLIP (1 parts) 87246Z — CLIP (1 parts) 87245Z — CLIP OR CLAMP (FOR HEATER WATER HOSE) (2 parts) 87246H — CLIP OR CLAMP(FOR HEATER WATER HOSE) (2 parts) 1603 — not listed in this catalogue 8714 — not listed in this catalogue 8714 — not listed in this catalogue 87121F — BRACKET, HEATER (1 parts) 87124F — CLAMP, HEATER HOSE, NO.1 (1 parts) 87124G — CLAMP, HEATER HOSE, NO.2 (1 parts) 87200A — PUMP ASSY, WATER(FOR HEATER) (1 parts) 87200D — ACCESSORY ASSY, HEATER (1 parts) 87246 — HOSE, HEATER WATER, OUTLET (2 parts) 87245 — HOSE, HEATER WATER, INLET (2 parts) 87245A — HOSE, HEATER WATER, INLET A (1 parts) 87245B — HOSE, HEATER WATER, INLET B (1 parts) 87248X — PIPE, HEATER WATER (1 parts) 9167180616 — not listed in this catalogue 9167380820 — not listed in this catalogue 9167380820 — not listed in this catalogue 9613642501 — not listed in this catalogue 9613842501 — not listed in this catalogue 1603 — not listed in this catalogue 9613842501 — not listed in this catalogue 9613842501 — not listed in this catalogue
87L018C · 15 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
87121F — Bracket, Heater
87121-48140 Bracket, Heater
2023-01 → —
TZSH35 —
87124F — Clamp, Heater Hose, NO.1
16581-36140 Clamp, Heater Hose, NO.1
2023-01 → —
TZSH35 —
87124G — Clamp, Heater Hose, NO.2
16581-77030 Clamp, Heater Hose, NO.2
2023-01 → —
TZSH35 —
87200A — Pump Assy, Water(FOR HEATER)
87200-48190 Pump Assy, Water(FOR HEATER)
2023-01 → —
TZSH35 —
87200D — Accessory Assy, Heater
87200-30290 Accessory Assy, Heater
2023-01 → —
TZSH35 —
87245 — Hose, Heater Water, Inlet
87209-30800 Hose, Heater Water, Inlet
2023-01 → —
TZSH35 —
87209-30810 Hose, Heater Water, Inlet
2023-01 → —
AZSH35 —
87245A — Hose, Heater Water, Inlet A
87245-48G80 Hose, Heater Water, Inlet A
2023-01 → —
TZSH35 —
87245B — Hose, Heater Water, Inlet B
87245-48K30 Hose, Heater Water, Inlet B
2023-01 → —
TZSH35 —
87245Z — Clip OR Clamp (FOR HEATER WATER HOSE)
96138-42501 Clip OR Clamp (FOR HEATER WATER HOSE)
2023-01 → —
AZSH35 —
96138-42501 Clip OR Clamp (FOR HEATER WATER HOSE)
2023-01 → —
TZSH35 —
87246 — Hose, Heater Water, Outlet
87209-30820 Hose, Heater Water, Outlet
2023-01 → —
AZSH35 —
87245-30D00 Hose, Heater Water, Outlet
2023-01 → —
TZSH35 —
87246H — Clip OR Clamp(FOR HEATER WATER HOSE)
96138-42501 Clip OR Clamp(FOR HEATER WATER HOSE)
2023-01 → —
AZSH35 —
96138-42501 Clip OR Clamp(FOR HEATER WATER HOSE)
2023-01 → —
TZSH35 —
87246Z — Clip
96138-42501 Clip
2023-01 → —
TZSH35 —
87248X — Pipe, Heater Water
87248-48230 Pipe, Heater Water
2023-01 → —
TZSH35 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
