Toyota Crown
2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States
Supported model
Data version 2022-12

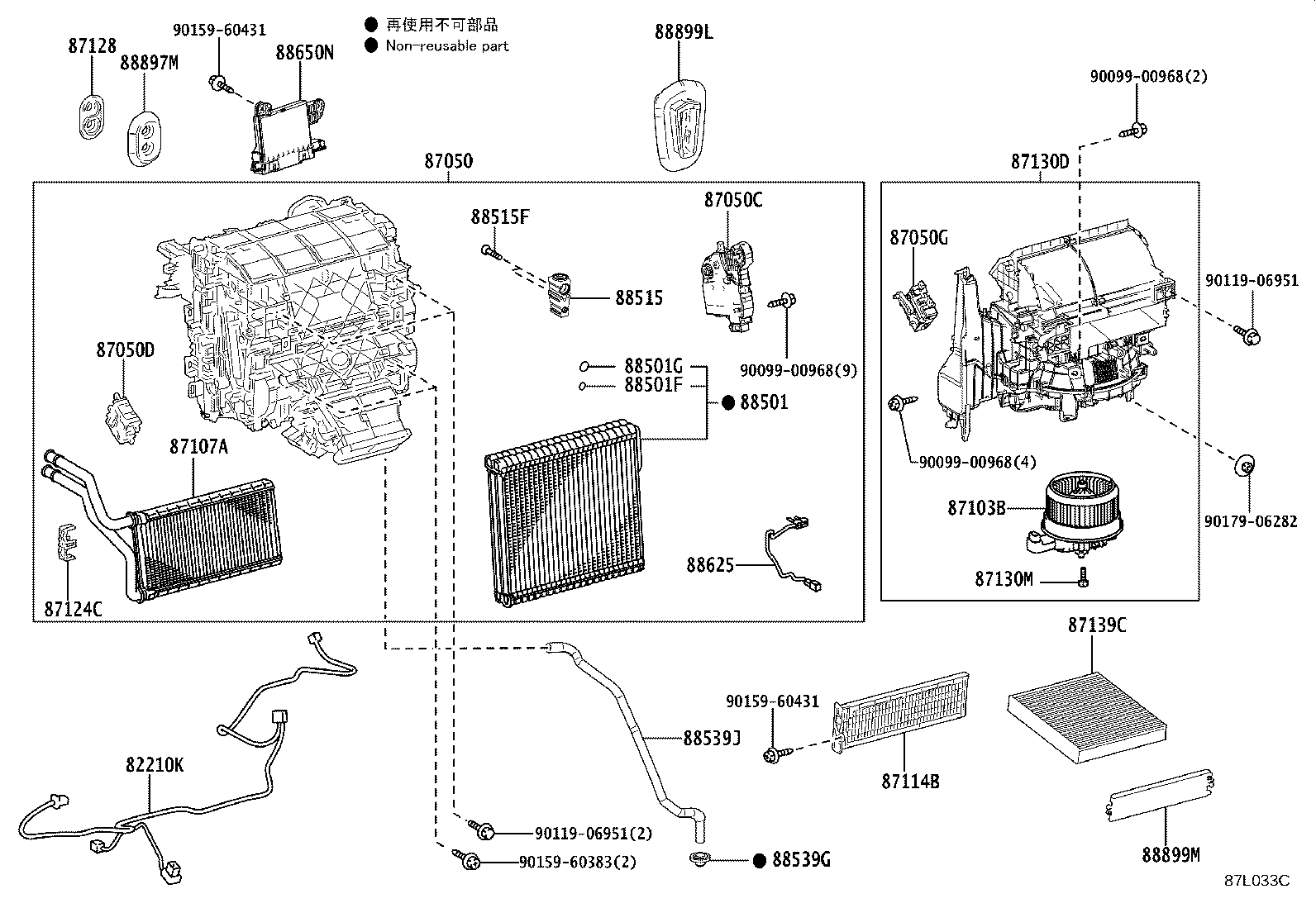

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82210K — Harness Assy, Air Conditioner | ||||
| 82212-33120 note |
Harness Assy, Air Conditioner
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 82212-42050 |
Harness Assy, Air Conditioner
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87050 — Radiator Assy, Air Conditioner | ||||
| 87050-33F70 |
Radiator Assy, Air Conditioner
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87050-33F90 note |
Radiator Assy, Air Conditioner
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87050C — Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 | ||||
| 87106-42240 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87106-48170 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87050D — Damper Servo Sub-assy, Air Conditioner Radiator, NO.2 | ||||
| 87106-48200 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87050G — Damper Servo Sub-assy, Air Conditioner Radiator, NO.5 | ||||
| 87106-33320 note |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.5
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87106-58050 |
Damper Servo Sub-assy, Air Conditioner Radiator, NO.5
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87103B — Motor Sub-assy, Blower W/Fan | ||||
| 87103-33160 note |
Motor Sub-assy, Blower W/Fan
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87103-58080 |
Motor Sub-assy, Blower W/Fan
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87107A — Unit Sub-assy, Heater Radiator | ||||
| 87107-33130 |
Unit Sub-assy, Heater Radiator
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87114B — Cover, Heater | ||||
| 87114-33050 |
Cover, Heater
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87124C — Clamp, Heater | ||||
| 87124-33070 |
Clamp, Heater
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87128 — Grommet, Heater | ||||
| 87128-28010 |
Grommet, Heater
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87130D — Blower Assy | ||||
| 87130-33280 note |
Blower Assy
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87130-47290 |
Blower Assy
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 87139C — Filter, Clean Air | ||||
| 87139-76020 note |
Filter, Clean Air
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-33350 |
Evaporator Sub-assy, Cooler, NO.1
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 88501F — O-ring, Cooler Evaporator NO.1(DISCHARGE) | ||||
| 90099-14120 note |
O-ring, Cooler Evaporator NO.1(DISCHARGE)
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 88501G — O-ring, Cooler Evaporator NO.1(SUCTION) | ||||
| 90099-14121 note |
O-ring, Cooler Evaporator NO.1(SUCTION)
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-33080 |
Valve, Cooler Expansion
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 88515-48110 note |
Valve, Cooler Expansion
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 88515F — Bolt(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
Bolt(FOR COOLER EXPANSION VALVE)
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 88539G — Grommet (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
Grommet (FOR COOLER UNIT DRAIN HOSE)
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 88539J — Hose, Drain Cooler | ||||
| 88539-30A60 |
Hose, Drain Cooler
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88620-28050 |
Thermistor, Cooler, NO.1
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 88650N — Amplifier Assy, Air Conditioner | ||||
| 88650-3AF40 note |
Amplifier Assy, Air Conditioner
2023-01 → 2024-04
ended
|
AZSH35 | — | |
| 88650-3AF40 note |
Amplifier Assy, Air Conditioner
2023-10 → 2024-04
ended
|
TZSH35 | — | |
| 88650-3AF40 note |
Amplifier Assy, Air Conditioner
2023-01 → 2024-04
ended
|
AZSH35 | — | |
| 88650-3AF40 note |
Amplifier Assy, Air Conditioner
2023-01 → 2023-10
ended
|
AZSH35 | — | |
| 88650-3AF40 |
Amplifier Assy, Air Conditioner
2023-01 → 2023-10
ended
|
TZSH35 | — | |
| 88650-3AG00 |
Amplifier Assy, Air Conditioner
2023-01 → 2023-10
ended
|
AZSH35 | — | |
| 886H0-30010 note |
Amplifier Assy, Air Conditioner
2023-10 → 2024-04
ended
|
AZSH35 | — | |
| 886H0-30010 |
Amplifier Assy, Air Conditioner
2023-10 → —
|
TZSH35 | — | |
| 886H0-30010 |
Amplifier Assy, Air Conditioner
2024-04 → —
|
AZSH35 | — | |
| 886H0-30020 |
Amplifier Assy, Air Conditioner
2023-10 → 2024-04
ended
|
AZSH35 | — | |
| 88897M — Grommet (FOR HEATER PIPE) | ||||
| 87128-33020 |
Grommet (FOR HEATER PIPE)
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 88899L — Parts, Cooling Unit | ||||
| 88899-33080 |
Parts, Cooling Unit
2023-01 → —
|
AZSH35,TZSH35 | — | |
| 88899M — Plate, Cover(FOR AIR FILTER) | ||||
| 88899-47120 |
Plate, Cover(FOR AIR FILTER)
2023-01 → —
|
AZSH35,TZSH35 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
