Toyota Crown

2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

10 part groups · 2 illustrations

Illustrations

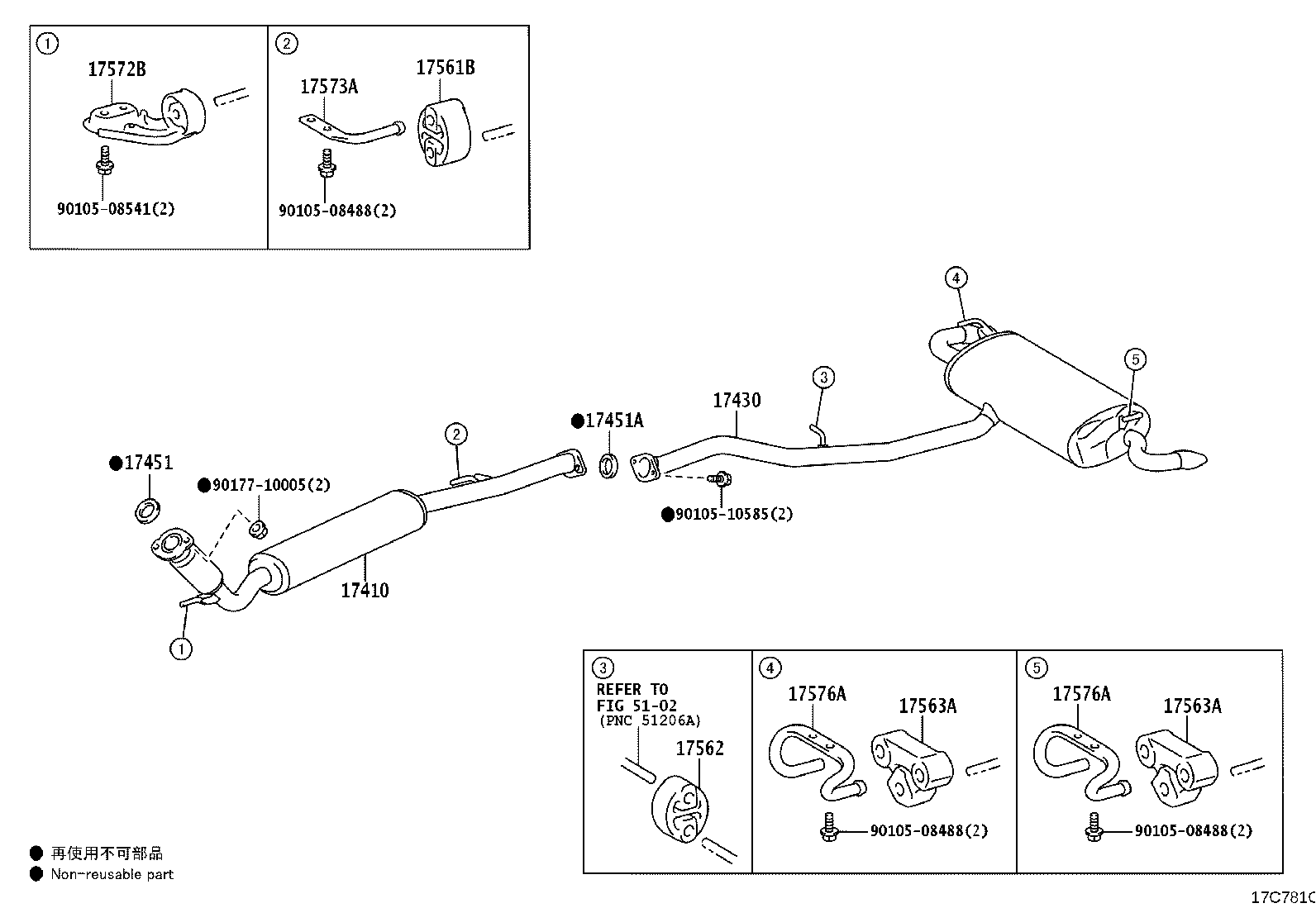

Figure 17C780C 17C780C 2023-01 → — Figure 17C781C 17C781C 2023-01 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17576A Bracket, Exhaust Pipe Support, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
