Toyota Crown

2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

31 part groups · 3 illustrations

Illustrations

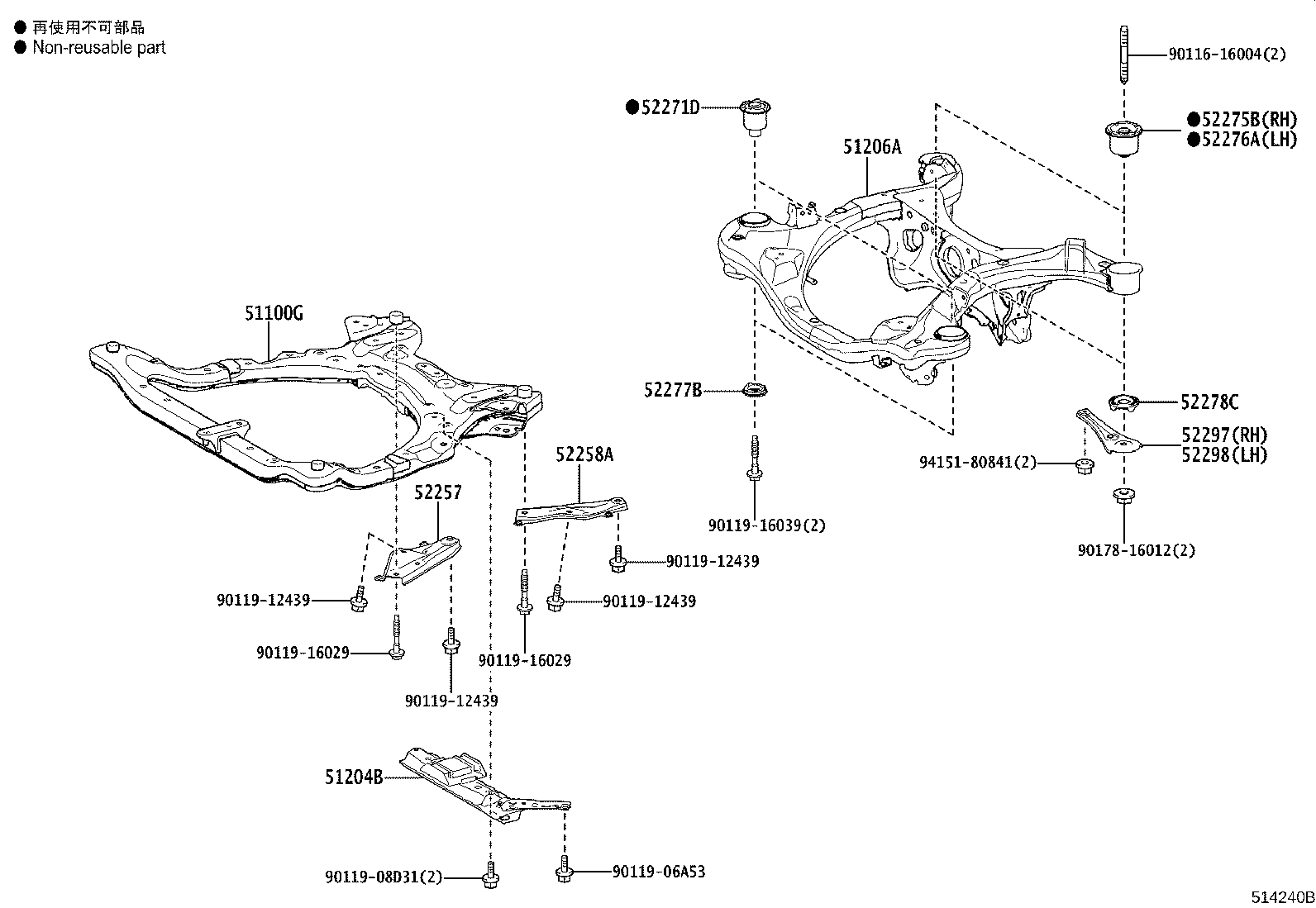

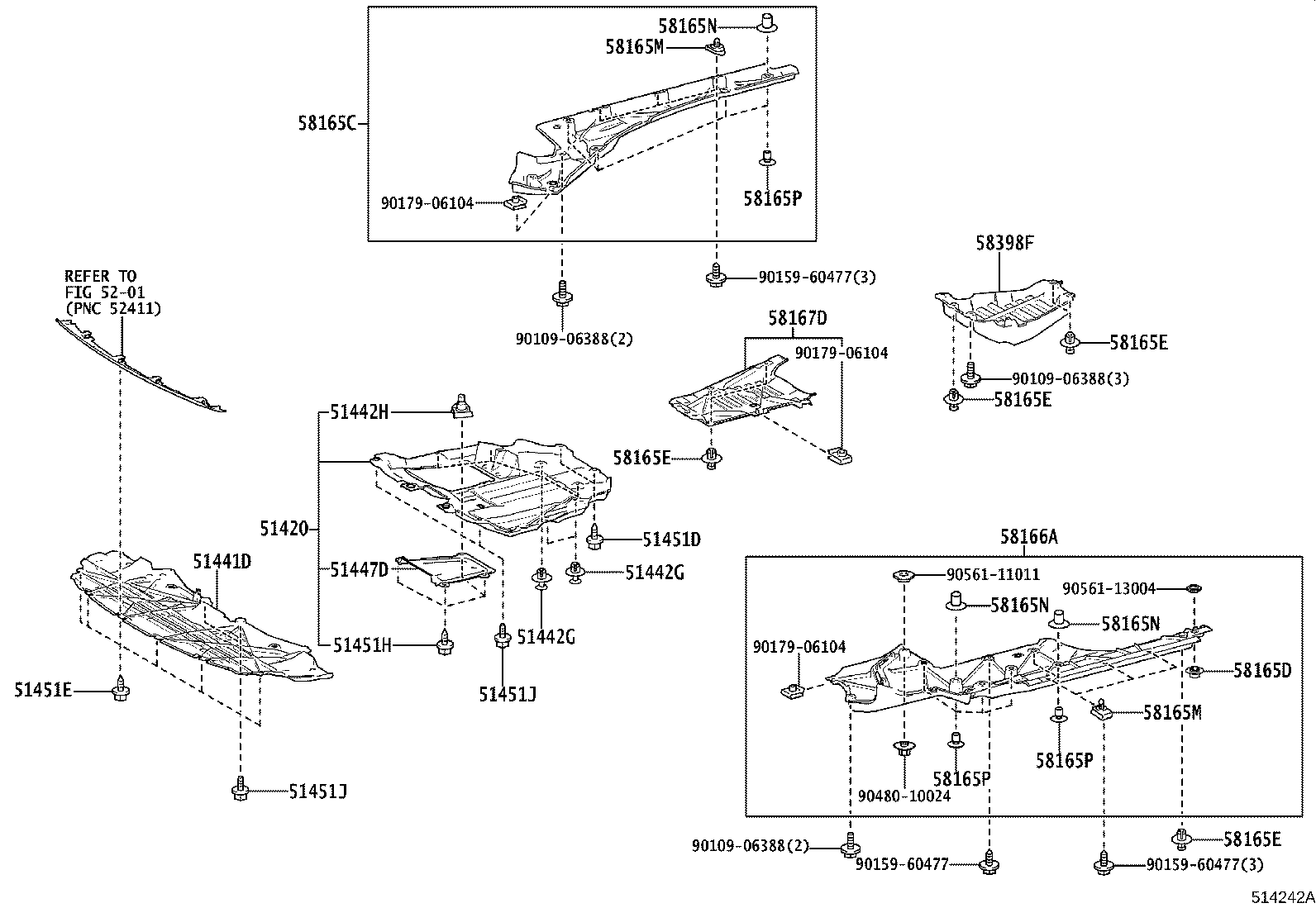

Figure 514239G 514239G 2023-01 → — Figure 514240D 514240D 2023-01 → — Figure 514242A 514242A 2023-01 → —

Part groups

PNCDescription
51100G Frame Assy, Front
51204B Damper Sub-assy, Front Suspension Member
51206A Member Sub-assy, Rear Suspension
51207G Bracket Sub-assy, Strut Bar
51420 Cover Assy, Engine Under, NO.2
51441D Cover, Engine Under
51442G Clip, Engine Under Cover, NO.1
51442H Clip, Engine Under Cover, NO.2
51447D Cover, Engine Under, NO.4 Center
51451D Screw, NO.1
51451E Screw, NO.2
51451H Screw, NO.3
51451J Bolt, NO.1
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
52271D Cushion, Rear Suspension Member Body Mounting, Front
52275B Cushion, Rear Suspension Member Body Mount, Rear RH
52276A Cushion, Rear Suspension Member Body Mount, Rear LH
52277B Stopper, Rear Suspension Member, Rear Upper
52278C Stopper, Rear Suspension Member, Rear Lower
52297 Brace, Rear Suspension Member, Rear Lower RH
52298 Brace, Rear Suspension Member, Rear Lower LH
58165C Cover, Front Floor, RH
58165D Clip, Floor Cover
58165E Clip, Floor Cover
58165M Clip, Front Floor Cover, NO.1
58165N Clip, Front Floor Cover, NO.2
58165P Clip, Front Floor Cover, NO.3
58166A Cover, Front Floor, LH
58167D Cover, Front Floor, Center RH
58398F Cover, Floor Under, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
