Toyota Crown
2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States
Supported model
Data version 2022-12
Hood & Front Fender
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53153K | Guide, Radiator Grille Side Air, RH |
| 53154L | Guide, Radiator Grille Side Air, LH |
| 53301 | Hood Sub-assy |
| 53336A | Bracket, Hood Stay |
| 53341B | Insulator, Hood |
| 53354A | Plate, Hood, Center |
| 53388D | Seal, Hood TO Front Fender, RH |
| 53388F | Retainer, Hood TO Front Fender Seal |
| 53389B | Seal, Hood TO Front Fender, LH |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53825A | Protector, Front Fender, Upper RH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53828N | Clip, Front Fender Side Panel Protector, NO.1 |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53858B | Retainer, Front Wheel Opening Extension, LH |

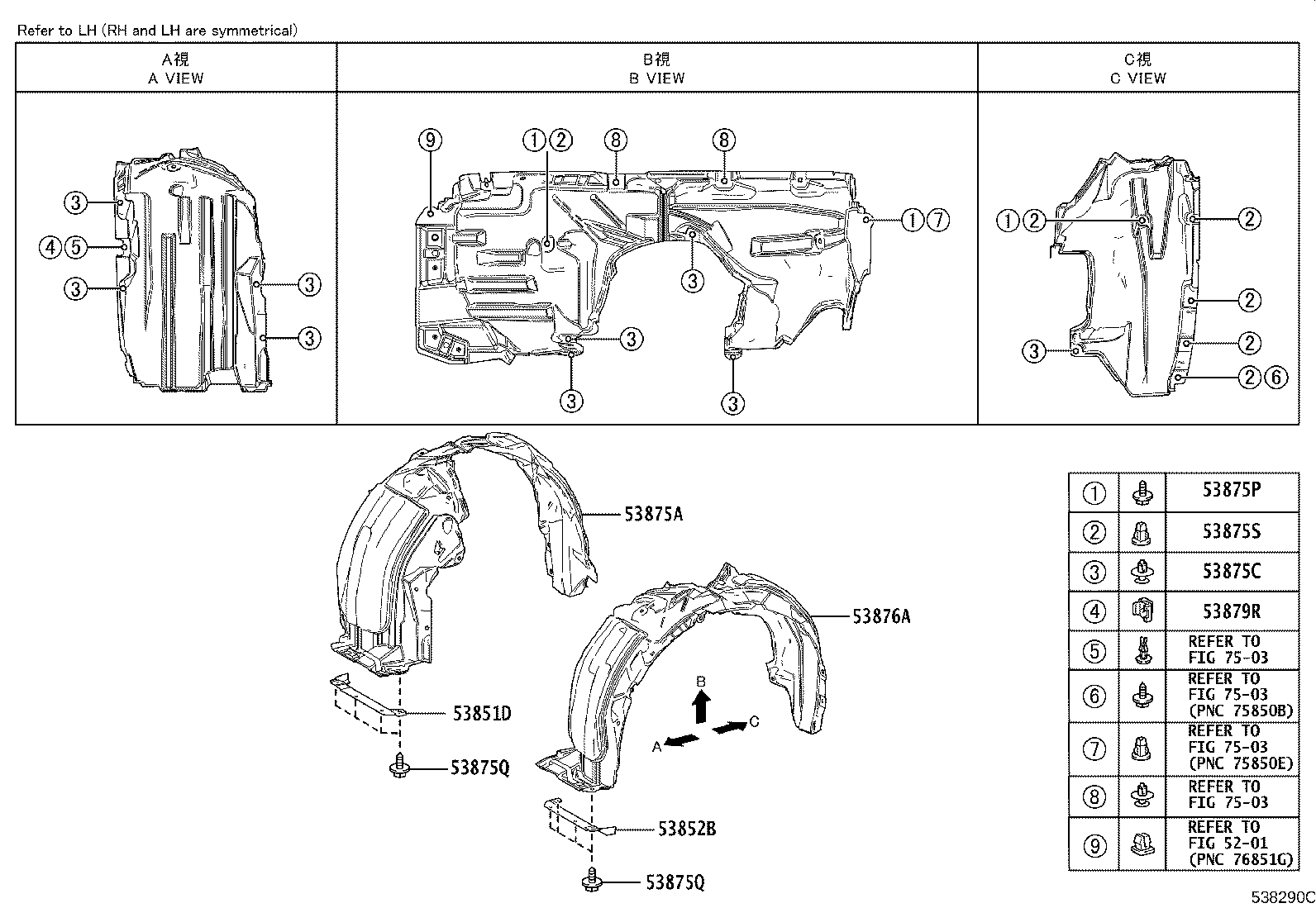

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875P | Screw, NO.1 |
| 53875Q | Screw, NO.2 |
| 53875S | Grommet, NO.1 |
| 53876A | Liner, Front Fender, LH |
| 53879R | Retainer, Front Fender Liner |
| 53882B | Seal, Front Fender, RH |
| 53882P | Seal, Front Fender, RH |
| 53883B | Seal, Front Fender, LH |
| 53883K | Seal, Front Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
