Toyota Crown

2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

27 part groups · 2 illustrations

Illustrations

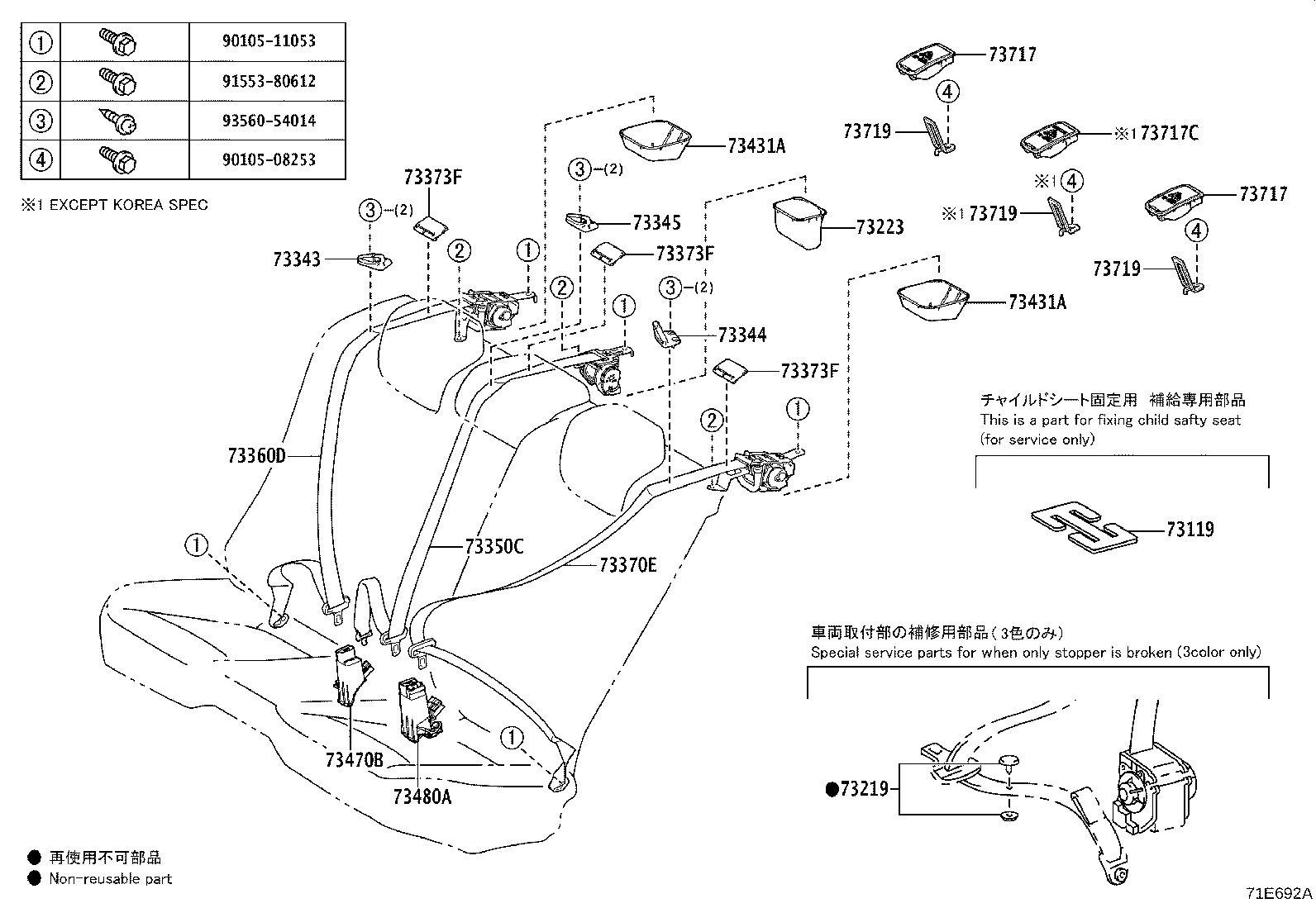

Figure 71E690A 71E690A 2023-01 → — Figure 71E692A 71E692A 2023-01 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73119 Plate, Seat Belt Webbing Clip
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73214 Plate, Front Seat Belt Anchor
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73223B Cover, Front Seat Belt Retractor, RH
73224B Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73343 Guide, Rear Seat Shoulder Belt, RH
73344 Guide, Rear Seat Shoulder Belt, LH
73345 Guide, Rear Seat Shoulder Belt, Center
73350C Belt Assy, Rear Seat, Outer Center
73360D Belt Assy, Rear Seat, Outer RH
73370E Belt Assy, Rear Seat, Outer LH
73373F Cover, Rear Seat Shoulder Belt Hole
73431A Cover, Rear Seat Belt Retractor
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480A Belt Assy, Rear Seat, Inner LH
73717 Cover, Child Restraint Seat Tether Anchor
73717C Cover, Child Restraint Seat Tether Anchor, Center
73719 Bracket, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
