Toyota Crown

2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

13 part groups · 2 illustrations

Illustrations

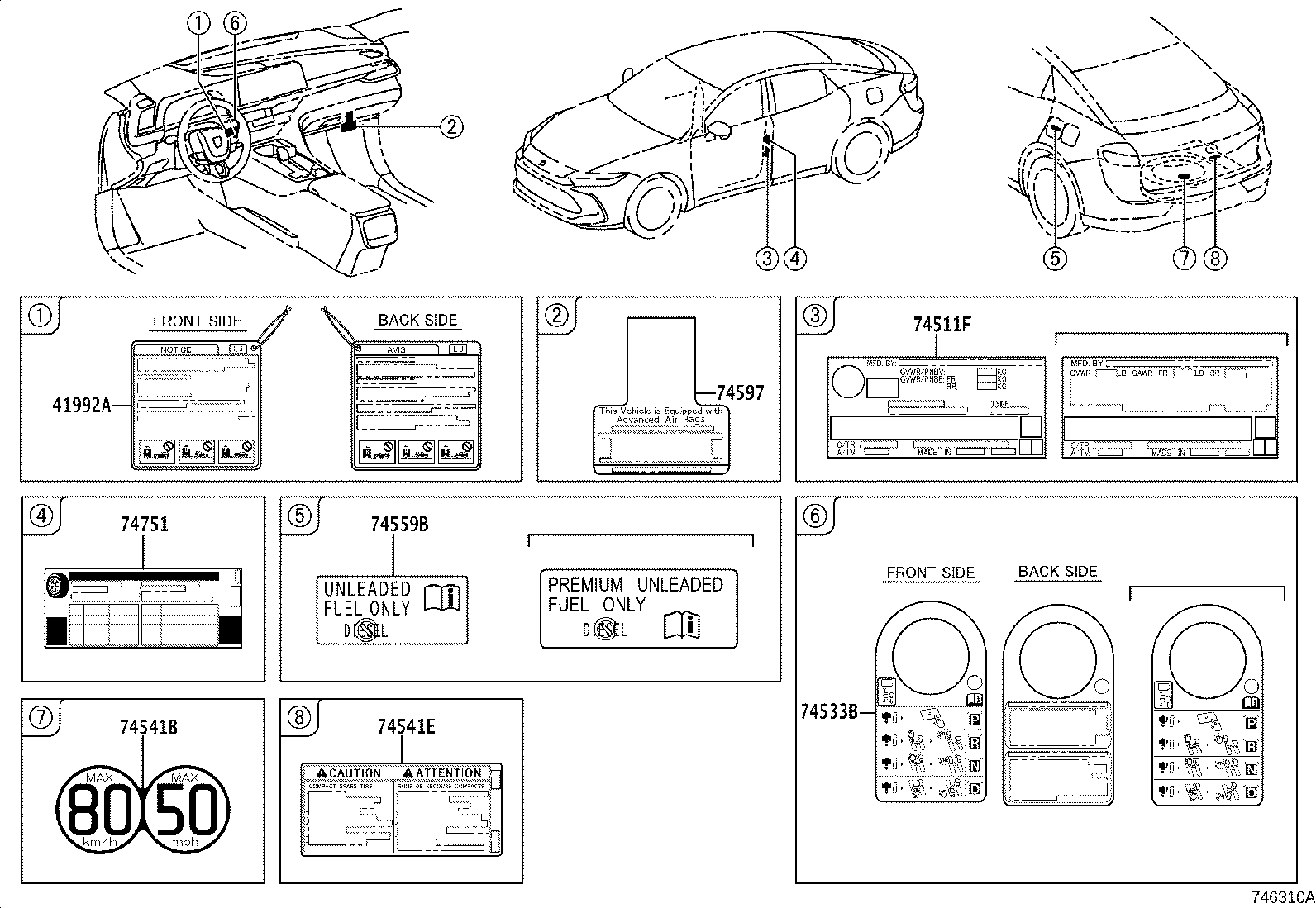

Figure 746309A 746309A 2023-01 → — Figure 746310A 746310A 2023-01 → —

Part groups

PNCDescription
11298B Label, Emission Control Information
15369A Label, Engine Oil Information
288A2 Label, Battery Location
41992A Label, Differential Notice, NO.2
74511F Label, Name (IDENTIFICATION LASER LABEL)
74533B Plate, Shifting Instruction
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74597 Label, Driver & Passenger Airbag Caution
74751 Label, Tire Pressure Information
81192A Seal, Headlamp
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
