Toyota Crown
2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States
Supported model
Data version 2022-12

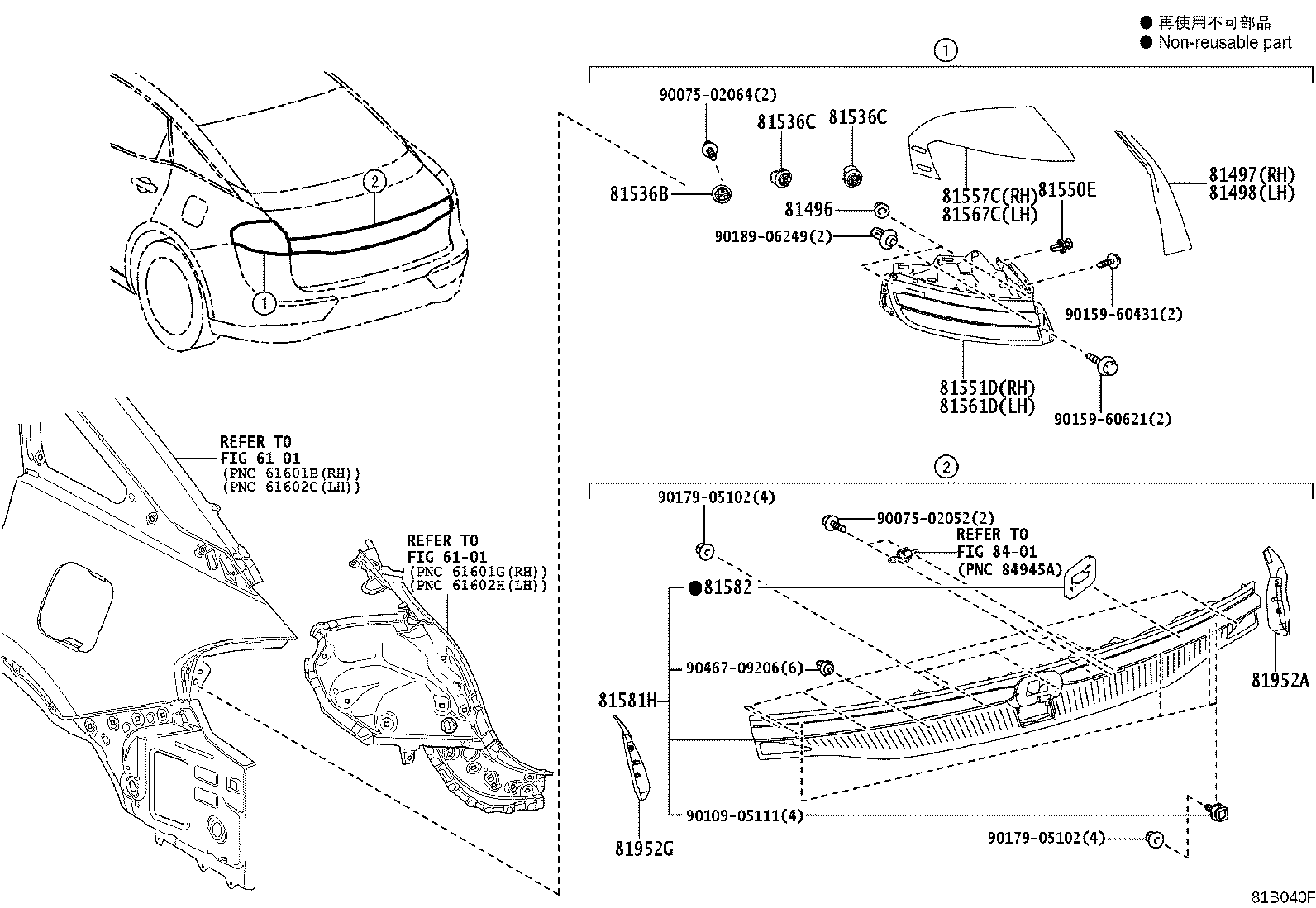

Rear Combination Lamp
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81536B | Led, Rear Turn Signal Lamp |
| 81536C | Led, Tail & Stop Lamp |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550E | Clip(FOR REAR COMBINATION LAMP) |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81557C | Cover, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81567C | Cover, Rear Combination Lamp, LH |
| 81581H | Lens & Body, Rear Lamp |
| 81582 | Gasket, Rear Lamp |
| 81952A | Cover, Rear Lamp, RH |
| 81952G | Cover, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
