Toyota Crown

2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inverter Cooling

27 part groups · 3 illustrations

Illustrations

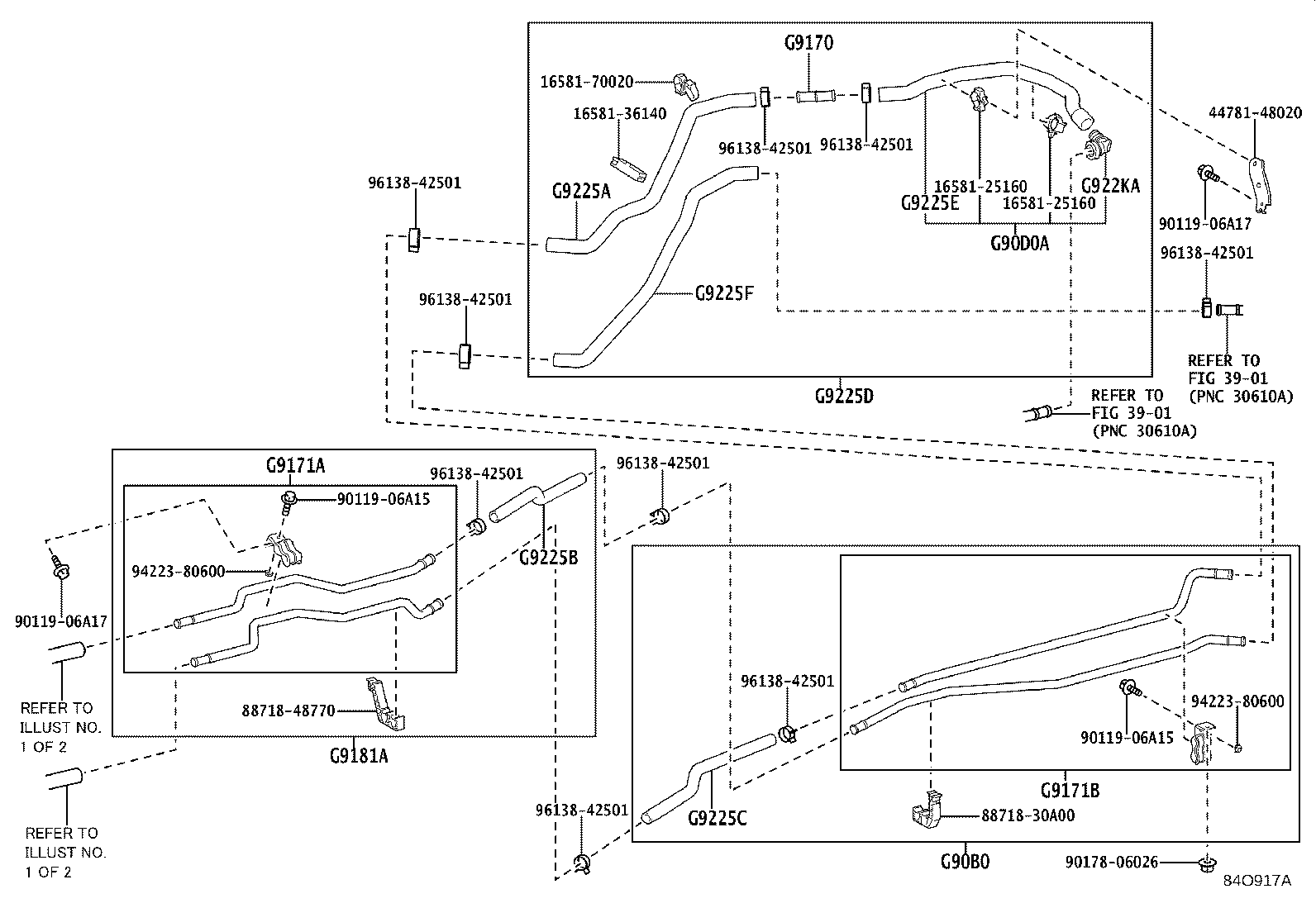

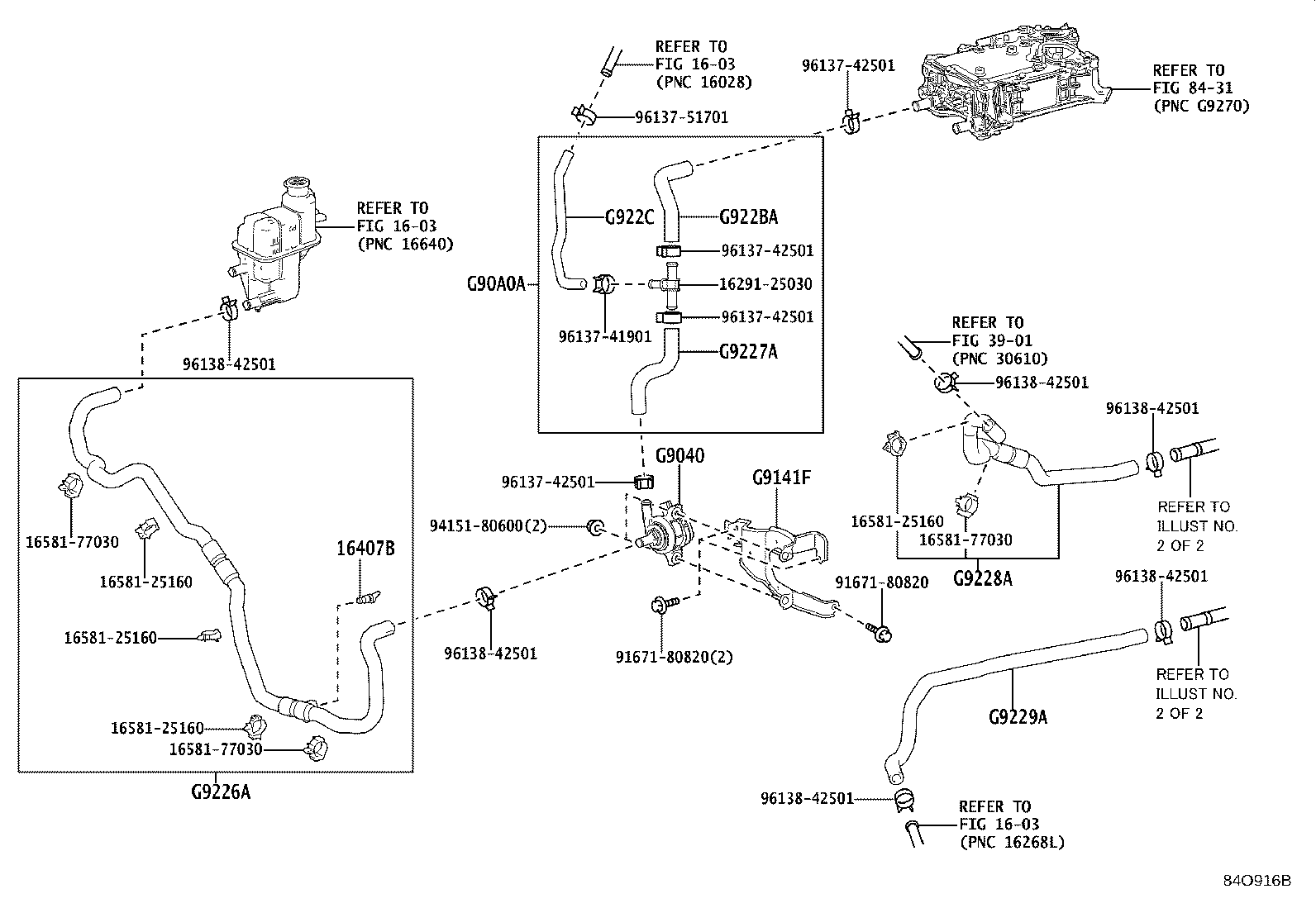

Figure 84O909A 84O909A 2023-01 → — Figure 84O916B 84O916B 2023-01 → — Figure 84O917A 84O917A 2023-01 → —

Part groups

PNCDescription
16407B Cock Sub-assy, Radiator Drain
16475 Cap, Reserve Tank
G9040 Inverter Water Pump Assy(W/MOTOR)
G90A0A Hose Assy, Inverter Cooling, NO.1
G90B0 Hose Assy, Inverter Cooling, NO.2
G90D0A Hose Assy, Inverter Cooling, NO.4
G910GB Tank Sub-assy, Inverter Reserve W/O Cap
G9141F Bracket, HV Water Pump
G9170 Pipe Assy, Inverter Cooling NO.1
G9171A Pipe, Inverter Cooling, NO.1
G9171B Pipe, Inverter Cooling, NO.3
G9181A Pipe, Inverter Cooling, NO.2
G921A Bracket, Inverter Reserve Tank, NO.1
G9225A Hose, Inverter Cooling, NO.7
G9225B Hose, Inverter Cooling, NO.8
G9225C Hose, Inverter Cooling, NO.9
G9225D Hose, Inverter Cooling, NO.10
G9225E Hose, Inverter Cooling, NO.11
G9225F Hose, Inverter Cooling, NO.12
G9225K Hose, Inverter Cooling, NO.1
G9226A Hose, Inverter Cooling, NO.2
G9227A Hose, Inverter Cooling, NO.3
G9228A Hose, Inverter Cooling, NO.4
G9229A Hose, Inverter Cooling, NO.5
G922BA Hose, Inverter Cooling Inlet, NO.2
G922C Hose, Inverter Cooling Outlet, NO.1
G922KA Connector, Hybrid Water Hose, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
