Toyota Crown

2022-12 → present · chassis AZSH35,TZSH35 · catalogue 3314F0 · United States

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

15 part groups · 2 illustrations

Illustrations

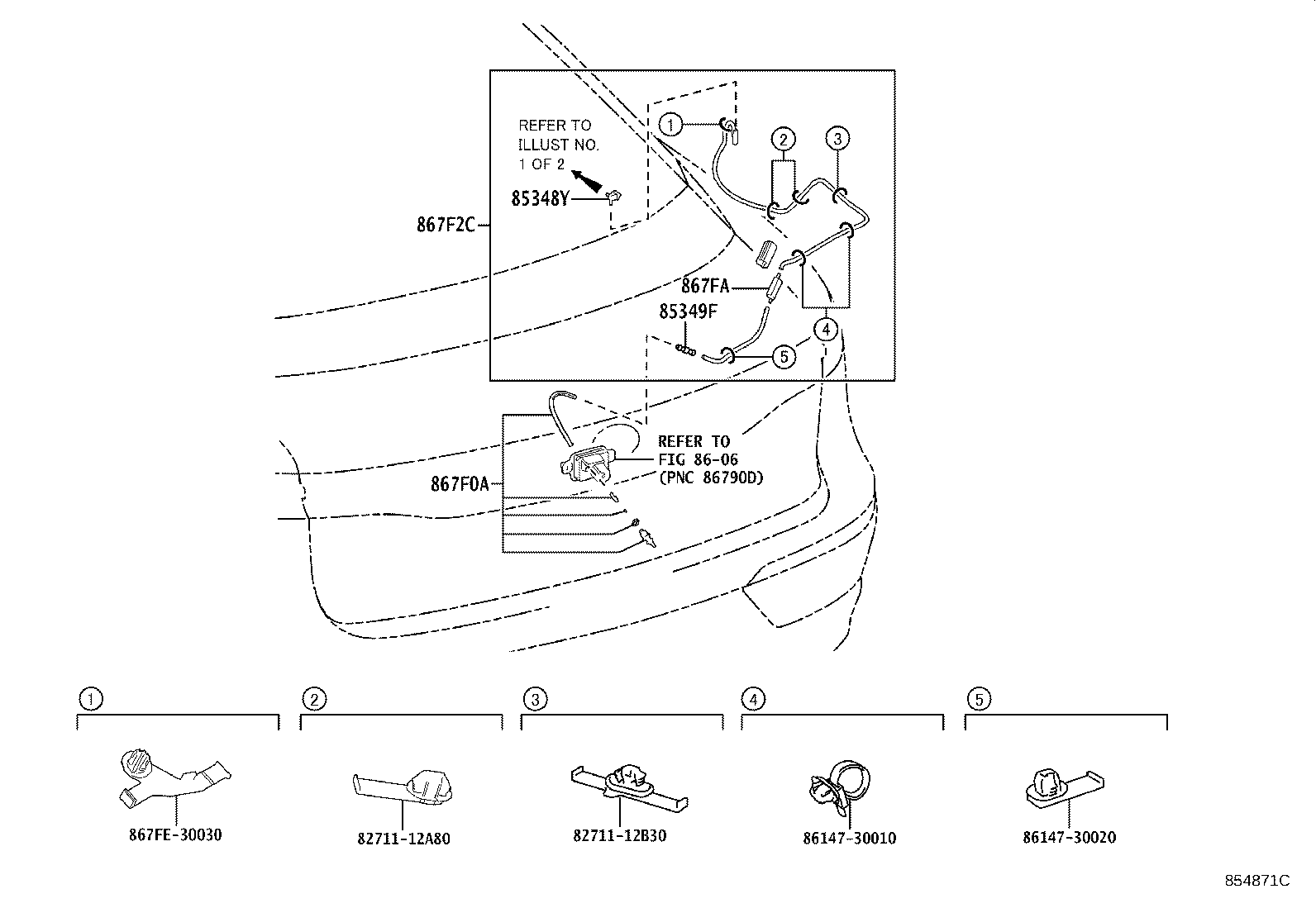

Figure 854869B 854869B 2023-01 → — Figure 854871C 854871C 2023-01 → —

Part groups

PNCDescription
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85348U Joint, Rear Washer Hose, NO.3
85348V Joint, Rear Washer Hose, NO.4
85348Y Joint, Rear Washer Hose, NO.5
85349F Joint, Rear Washer Hose, NO.1
85349K Joint, Rear Washer Elbow, NO.2
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85379B Grommet, Washer, A
867F0A Nozzle Assy, Camera Cleaner, NO.1
867F2A Hose Assy, Camera Cleaner
867F2C Hose, Camera Cleaner, NO.2
867F2D Hose, Camera Cleaner, NO.3
867FA Filter, Cleaner Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
