Toyota Lexus GS300
1993-01 → 1997-08 · chassis JZS147 · catalogue 332480 · United States
Discontinued model
Data version 1998-01

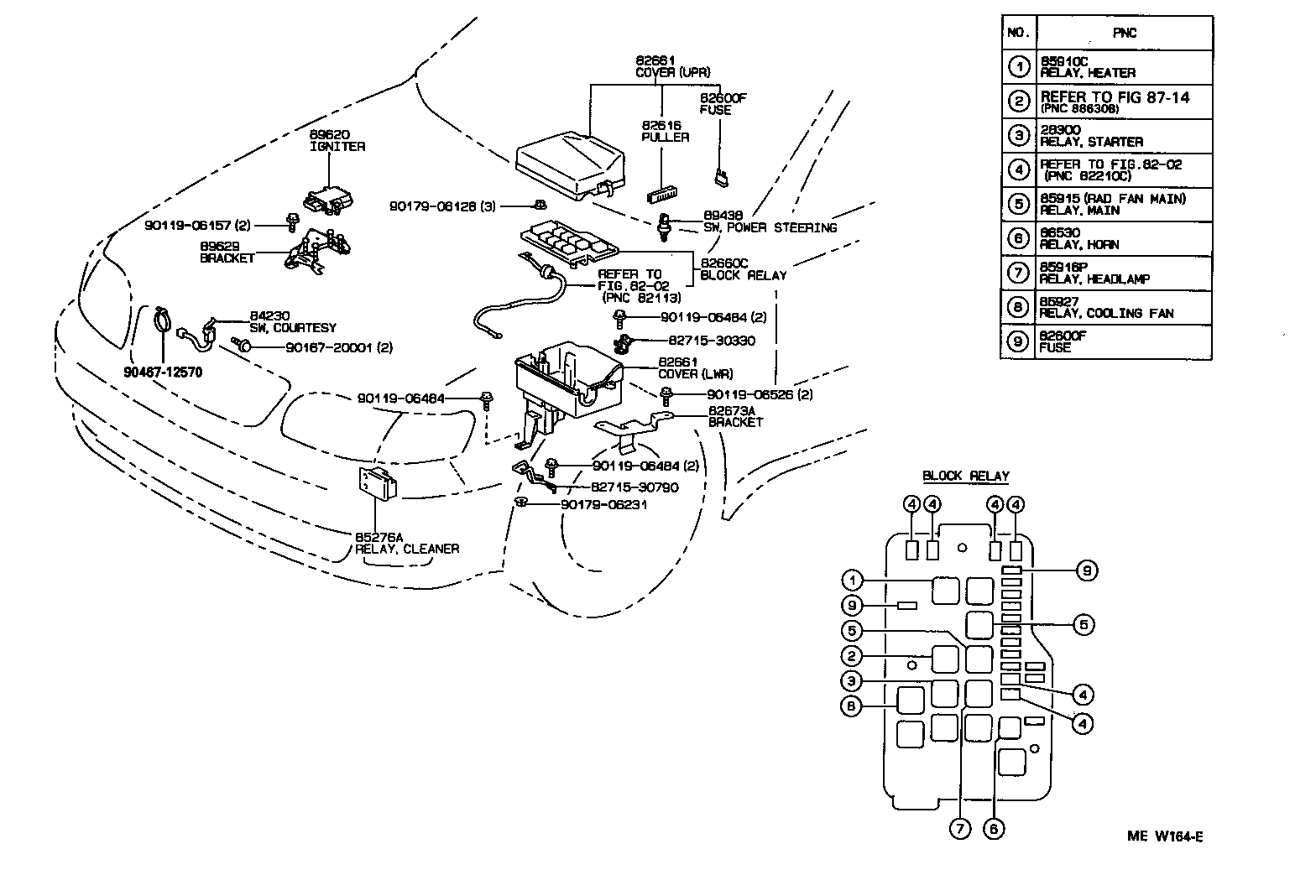

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28300 — Relay Assy, Starter | ||||
| 28300-16010 |
Relay Assy, Starter
1993-01 → 1997-08
ended
|
2JZGE JZS147 | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90080-82012 note |
Fuse, Fuse Block
1995-01 → 1997-08
ended
|
JZS147 | — | |
| 90080-82013 note |
Fuse, Fuse Block
1995-01 → 1997-08
ended
|
JZS147 | — | |
| 90080-82014 note |
Fuse, Fuse Block
1995-01 → 1997-08
ended
|
JZS147 | — | |
| 90080-82015 note |
Fuse, Fuse Block
1995-01 → 1997-08
ended
|
JZS147 | — | |
| 90982-07011 note |
Fuse, Fuse Block
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1993-01 → 1994-08
ended
|
JZS147 CND | — | |
| 90982-09002 note |
Fuse, Fuse Block
1994-08 → 1997-08
ended
|
JZS147 CND | — | |
| 90982-09002 note |
Fuse, Fuse Block
1993-01 → 1997-08
ended
|
JZS147 USA | — | |
| 90982-09002 note |
Fuse, Fuse Block
1993-01 → 1997-08
ended
|
JZS147 USA | — | |
| 90982-09002 note |
Fuse, Fuse Block
1993-01 → 1994-08
ended
|
JZS147 CND | — | |
| 90982-09002 note |
Fuse, Fuse Block
1993-01 → 1995-01
ended
|
JZS147 CND | — | |
| 90982-09002 note |
Fuse, Fuse Block
1993-01 → 1995-01
ended
|
JZS147 USA | — | |
| 90982-09003 note |
Fuse, Fuse Block
1993-01 → 1995-08
ended
|
JZS147 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1993-01 → 1995-01
ended
|
JZS147 USA | — | |
| 90982-09003 note |
Fuse, Fuse Block
1993-01 → 1995-01
ended
|
JZS147 CND | — | |
| 90982-09003 note |
Fuse, Fuse Block
1993-01 → 1997-08
ended
|
JZS147 CND | — | |
| 90982-09003 note |
Fuse, Fuse Block
1993-01 → 1997-08
ended
|
JZS147 USA | — | |
| 90982-09004 note |
Fuse, Fuse Block
1993-01 → 1995-01
ended
|
JZS147 USA | — | |
| 90982-09004 note |
Fuse, Fuse Block
1993-01 → 1994-08
ended
|
JZS147 USA | — | |
| 90982-09004 note |
Fuse, Fuse Block
1993-01 → 1995-01
ended
|
JZS147 CND | — | |
| 90982-09004 note |
Fuse, Fuse Block
1993-01 → 1994-08
ended
|
JZS147 CND | — | |
| 90982-09004 note |
Fuse, Fuse Block
1994-08 → 1997-08
ended
|
JZS147 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1993-01 → 1997-08
ended
|
JZS147 4FC CND;JZS147 5FC +1 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1995-01 → 1997-08
ended
|
JZS147 5FC CND | — | |
| 90982-09005 note |
Fuse, Fuse Block
1993-01 → 1995-08
ended
|
JZS147 USA | — | |
| 90982-09005 note |
Fuse, Fuse Block
1993-01 → 1995-08
ended
|
JZS147 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1993-01 → 1995-01
ended
|
JZS147 USA | — | |
| 90982-09005 note |
Fuse, Fuse Block
1993-01 → 1995-01
ended
|
JZS147 CND | — | |
| 90982-09006 note |
Fuse, Fuse Block
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 82616 — Puller, Fuse | ||||
| 82616-12020 |
Puller, Fuse
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 82660C — Block Assy, Relay | ||||
| 82660-30810 |
Block Assy, Relay
1993-01 → 1995-08
ended
|
JZS147 USA | — | |
| 82660-30811 |
Block Assy, Relay
1995-08 → 1997-08
ended
|
JZS147 USA | — | |
| 82660-30820 note |
Block Assy, Relay
1993-01 → 1995-08
ended
|
JZS147 USA | — | |
| 82660-30821 note |
Block Assy, Relay
1995-08 → 1997-08
ended
|
JZS147 USA | — | |
| 82660-30830 |
Block Assy, Relay
1993-01 → 1994-08
ended
|
JZS147 CND | — | |
| 82660-30840 |
Block Assy, Relay
1994-08 → 1995-08
ended
|
JZS147 CND | — | |
| 82660-30840 note |
Block Assy, Relay
1993-01 → 1994-08
ended
|
JZS147 CND | — | |
| 82660-30841 |
Block Assy, Relay
1995-08 → 1997-08
ended
|
JZS147 CND | — | |
| 82661 — Cover, Relay Block, NO.1 | ||||
| 82662-30260 note |
Cover, Relay Block, NO.1
1993-01 → 1995-08
ended
|
JZS147 USA | — | |
| 82662-30270 note |
Cover, Relay Block, NO.1
1993-01 → 1995-08
ended
|
JZS147 CND | — | |
| 82662-30350 note |
Cover, Relay Block, NO.1
1995-08 → 1997-08
ended
|
JZS147 | — | |
| 82663-30090 note |
Cover, Relay Block, NO.1
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 82673A — Bracket, Junction Block, NO.1 | ||||
| 82673-30010 |
Bracket, Junction Block, NO.1
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 84230 — Switch Assy, Courtesy Lamp (FOR ENGINE ROOM) | ||||
| 84231-33030 |
Switch Assy, Courtesy Lamp (FOR ENGINE ROOM)
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 85276A — Relay, Cleaner Control | ||||
| 85942-33010 |
Relay, Cleaner Control
1993-01 → 1997-08
ended
|
JZS147 CND | — | |
| 85910C — Relay Assy (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
Relay Assy (FOR HEATER BLOWER MOTOR)
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 85915 — Relay, Main | ||||
| 90987-02009 note |
Relay, Main
1993-01 → 1993-03
ended
|
JZS147 | — | |
| 90987-02009 note |
Relay, Main
1993-08 → 1997-08
ended
|
JZS147 | — | |
| 90987-02010 note |
Relay, Main
1993-03 → 1993-08
ended
|
JZS147 | — | |
| 90987-04002 note |
Relay, Main
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 85916P — Relay, Headlamp | ||||
| 90987-02006 |
Relay, Headlamp
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 85927 — Relay, Cooling Fan | ||||
| 90987-03003 |
Relay, Cooling Fan
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 86530 — Relay Assy, Horn | ||||
| 86530-20070 |
Relay Assy, Horn
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 89438 — Switch, Power Steering Oil Pressure | ||||
| 89438-30020 |
Switch, Power Steering Oil Pressure
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 89620 — Igniter Assy | ||||
| 89621-33010 |
Igniter Assy
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 89629 — Bracket, Igniter Assy | ||||
| 89629-30180 |
Bracket, Igniter Assy
1993-01 → 1997-08
ended
|
JZS147 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
