Toyota Lexus GS300

1993-01 → 1997-08 · chassis JZS147 · catalogue 332480 · United States

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

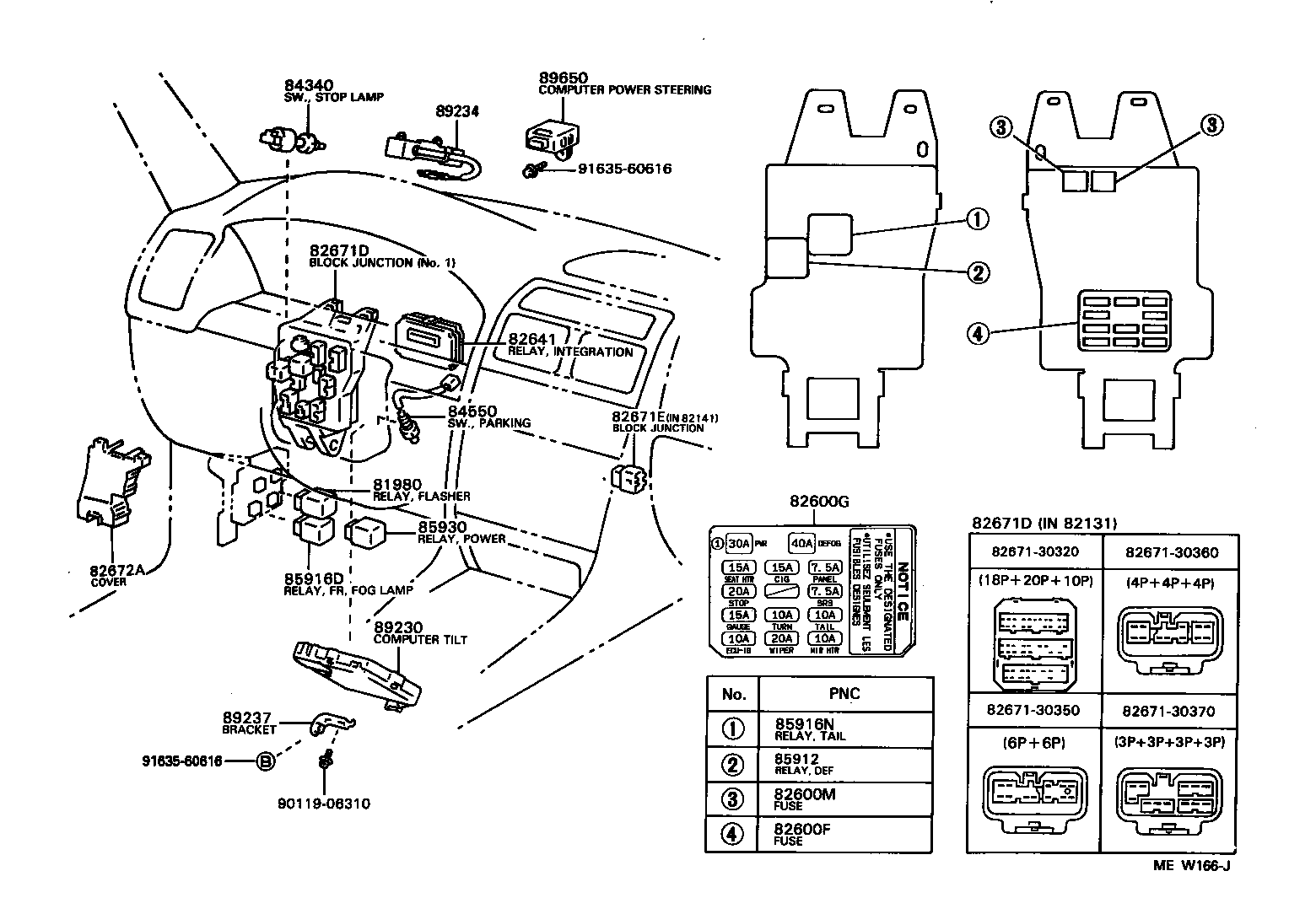

Exploded illustration MEW166J 89650 — COMPUTER ASSY, POWER STEERING (1 parts) 84340 — SWITCH ASSY, STOP LAMP (1 parts) 89234 — SENSOR, TELESCOPIC POSITION (1 parts) 9163560616 — not listed in this catalogue 82671D — BLOCK, JUNCTION (5 parts) 82641 — RELAY, INTEGRATION NO.1 (2 parts) 84550 — SWITCH ASSY, PARKING BRAKE (1 parts) 82671E — BLOCK, JUNCTION (1 parts) 81980 — FLASHER ASSY, TURN SIGNAL (1 parts) 82600G — PLATE, CAUTION(FOR FUSE) (3 parts) 82671D — BLOCK, JUNCTION (5 parts) 85930 — RELAY ASSY, POWER WINDOW (3 parts) 8267130320 — not listed in this catalogue 8267130360 — not listed in this catalogue 82672A — COVER, JUNCTION BLOCK (1 parts) 85916D — RELAY, FOG LAMP (3 parts) 89230 — COMPUTER ASSY, TILT STEERING (2 parts) 8267130350 — not listed in this catalogue 8267130370 — not listed in this catalogue 89237 — BRACKET, COMPUTER UNIT (1 parts) 85916N — RELAY, TAILLAMP (3 parts) 85912 — RELAY, DEFOGGER (3 parts) 9163560616 — not listed in this catalogue 82600M — FUSE, MEDIUM CURRENT (3 parts) 9011906310 — not listed in this catalogue 82600F — FUSE, FUSE BLOCK (29 parts)
MEW166J · 19 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
81980 — Flasher Assy, Turn Signal
81980-12070 Flasher Assy, Turn Signal
1993-01 → 1997-08 ended
JZS147 —
82600F — Fuse, Fuse Block
90080-82012 note Fuse, Fuse Block
1995-01 → 1997-08 ended
JZS147 —
90080-82013 note Fuse, Fuse Block
1995-01 → 1997-08 ended
JZS147 —
90080-82014 note Fuse, Fuse Block
1995-01 → 1997-08 ended
JZS147 —
90080-82015 note Fuse, Fuse Block
1995-01 → 1997-08 ended
JZS147 —
90982-07011 note Fuse, Fuse Block
1993-01 → 1997-08 ended
JZS147 —
90982-09002 note Fuse, Fuse Block
1993-01 → 1994-08 ended
JZS147 CND —
90982-09002 note Fuse, Fuse Block
1993-01 → 1994-08 ended
JZS147 CND —
90982-09002 note Fuse, Fuse Block
1993-01 → 1995-01 ended
JZS147 CND —
90982-09002 note Fuse, Fuse Block
1994-08 → 1997-08 ended
JZS147 CND —
90982-09002 note Fuse, Fuse Block
1993-01 → 1995-01 ended
JZS147 USA —
90982-09002 note Fuse, Fuse Block
1993-01 → 1997-08 ended
JZS147 USA —
90982-09002 note Fuse, Fuse Block
1993-01 → 1997-08 ended
JZS147 USA —
90982-09003 note Fuse, Fuse Block
1993-01 → 1997-08 ended
JZS147 CND —
90982-09003 note Fuse, Fuse Block
1993-01 → 1997-08 ended
JZS147 USA —
90982-09003 note Fuse, Fuse Block
1993-01 → 1995-01 ended
JZS147 CND —
90982-09003 note Fuse, Fuse Block
1993-01 → 1995-01 ended
JZS147 USA —
90982-09003 note Fuse, Fuse Block
1993-01 → 1995-08 ended
JZS147 —
90982-09004 note Fuse, Fuse Block
1994-08 → 1997-08 ended
JZS147 —
90982-09004 note Fuse, Fuse Block
1993-01 → 1994-08 ended
JZS147 USA —
90982-09004 note Fuse, Fuse Block
1993-01 → 1994-08 ended
JZS147 CND —
90982-09004 note Fuse, Fuse Block
1993-01 → 1995-01 ended
JZS147 CND —
90982-09004 note Fuse, Fuse Block
1993-01 → 1995-01 ended
JZS147 USA —
90982-09005 note Fuse, Fuse Block
1993-01 → 1995-08 ended
JZS147 USA —
90982-09005 note Fuse, Fuse Block
1993-01 → 1997-08 ended
JZS147 4FC CND;JZS147 5FC +1 —
90982-09005 note Fuse, Fuse Block
1993-01 → 1995-01 ended
JZS147 CND —
90982-09005 note Fuse, Fuse Block
1993-01 → 1995-01 ended
JZS147 USA —
90982-09005 note Fuse, Fuse Block
1993-01 → 1995-08 ended
JZS147 —
90982-09005 note Fuse, Fuse Block
1995-01 → 1997-08 ended
JZS147 5FC CND —
90982-09006 note Fuse, Fuse Block
1993-01 → 1997-08 ended
JZS147 —
82600G — Plate, Caution(FOR FUSE)
82683-30110 Plate, Caution(FOR FUSE)
1993-05 → 1997-08 ended
JZS147 —
82683-30180 Plate, Caution(FOR FUSE)
1995-08 → 1997-08 ended
JZS147 USA —
82683-30190 Plate, Caution(FOR FUSE)
1995-08 → 1997-08 ended
JZS147 CND —
82600M — Fuse, Medium Current
90982-10001 note Fuse, Medium Current
1993-01 → 1995-01 ended
JZS147 USA —
90982-10001 note Fuse, Medium Current
1995-01 → 1997-08 ended
JZS147 —
90982-10001 note Fuse, Medium Current
1993-01 → 1995-01 ended
JZS147 CND —
82641 — Relay, Integration NO.1
82641-24070 Relay, Integration NO.1
1993-01 → 1995-08 ended
JZS147 —
82641-24080 Relay, Integration NO.1
1995-08 → 1997-08 ended
JZS147 —
82671D — Block, Junction
82671-30320 note Block, Junction
1993-01 → 1997-08 ended
JZS147 —
82671-30350 note Block, Junction
1993-01 → 1997-08 ended
JZS147 —
82671-30360 note Block, Junction
1993-01 → 1997-08 ended
JZS147 —
82671-30370 note Block, Junction
1993-01 → 1997-08 ended
JZS147 —
82671-30390 note Block, Junction
1993-01 → 1997-08 ended
JZS147 —
82671E — Block, Junction
82671-30360 Block, Junction
1993-01 → 1997-08 ended
JZS147 —
82672A — Cover, Junction Block
82672-30040 Cover, Junction Block
1993-01 → 1997-08 ended
JZS147 —
84340 — Switch Assy, Stop Lamp
84340-32110 Switch Assy, Stop Lamp
1993-01 → 1997-08 ended
JZS147 —
84550 — Switch Assy, Parking Brake
84550-50010 Switch Assy, Parking Brake
1993-01 → 1997-08 ended
JZS147 —
85912 — Relay, Defogger
90987-02009 Relay, Defogger
1993-01 → 1993-03 ended
JZS147 —
90987-02009 Relay, Defogger
1993-08 → 1997-08 ended
JZS147 —
90987-02010 Relay, Defogger
1993-03 → 1993-08 ended
JZS147 —
85916D — Relay, Fog Lamp
90987-02009 Relay, Fog Lamp
1993-01 → 1993-03 ended
JZS147 —
90987-02009 Relay, Fog Lamp
1993-08 → 1997-08 ended
JZS147 —
90987-02010 Relay, Fog Lamp
1993-03 → 1993-08 ended
JZS147 —
85916N — Relay, Taillamp
90987-02009 Relay, Taillamp
1993-01 → 1993-03 ended
JZS147 —
90987-02009 Relay, Taillamp
1993-08 → 1997-08 ended
JZS147 —
90987-02010 Relay, Taillamp
1993-03 → 1993-08 ended
JZS147 —
85930 — Relay Assy, Power Window
90987-02009 Relay Assy, Power Window
1993-01 → 1993-03 ended
JZS147 —
90987-02009 Relay Assy, Power Window
1993-08 → 1997-08 ended
JZS147 —
90987-02010 Relay Assy, Power Window
1993-03 → 1993-08 ended
JZS147 —
89230 — Computer Assy, Tilt Steering
89230-30110 Computer Assy, Tilt Steering
1993-01 → 1996-11 ended
JZS147 —
89230-30111 Computer Assy, Tilt Steering
1996-11 → 1997-08 ended
JZS147 —
89234 — Sensor, Telescopic Position
89234-30040 Sensor, Telescopic Position
1993-01 → 1997-08 ended
JZS147 —
89237 — Bracket, Computer Unit
89237-30030 Bracket, Computer Unit
1993-01 → 1997-08 ended
JZS147 —
89650 — Computer Assy, Power Steering
89650-30450 Computer Assy, Power Steering
1993-01 → 1997-08 ended
JZS147 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
