Toyota Lexus GS300
1993-01 → 1997-08 · chassis JZS147 · catalogue 332480 · United States
Discontinued model
Data version 1998-01

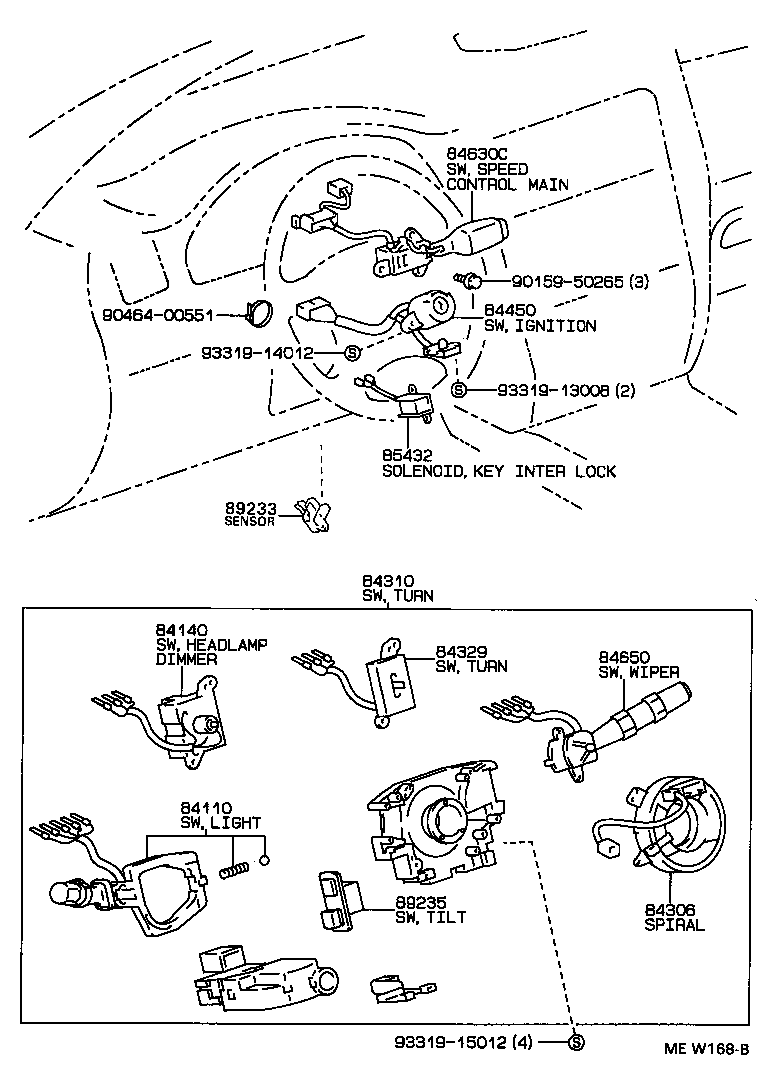

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84110 — Switch Assy, Light Control, NO.1 | ||||
| 84112-30510 |
Switch Assy, Light Control, NO.1
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-30180 |
Switch Assy, Headlamp Dimmer
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-30060 |
Cable Sub-assy, Spiral
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 84310 — Switch Assy, Turn Signal | ||||
| 84310-3A490 |
Switch Assy, Turn Signal
1993-01 → 1994-08
ended
|
JZS147 USA | — | |
| 84310-3A500 |
Switch Assy, Turn Signal
1993-01 → 1994-08
ended
|
JZS147 CND | — | |
| 84310-3A590 |
Switch Assy, Turn Signal
1994-08 → 1997-08
ended
|
JZS147 USA | — | |
| 84310-3A600 |
Switch Assy, Turn Signal
1994-08 → 1997-08
ended
|
JZS147 CND | — | |
| 84329 — Switch, Turn Signal | ||||
| 84329-30060 |
Switch, Turn Signal
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-30240 |
Switch Assy, Ignition OR Starter
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 84630C — Switch Assy, Speed Control Main | ||||
| 84630-30150 |
Switch Assy, Speed Control Main
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-30400 |
Switch Assy, Windshield Wiper
1993-01 → 1997-08
ended
|
JZS147 USA | — | |
| 84652-30410 |
Switch Assy, Windshield Wiper
1993-01 → 1997-08
ended
|
JZS147 CND | — | |
| 85432 — Solenoid, Key Interlock | ||||
| 85432-50010 |
Solenoid, Key Interlock
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 89233 — Sensor, Tilt Position | ||||
| 89233-30030 |
Sensor, Tilt Position
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 89235 — Switch, Tilt Steering | ||||
| 89235-30080 |
Switch, Tilt Steering
1993-01 → 1994-08
ended
|
JZS147 | — | |
| 89235-30090 |
Switch, Tilt Steering
1994-08 → 1997-08
ended
|
JZS147 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
