Toyota Lexus GS300
1993-01 → 1997-08 · chassis JZS147 · catalogue 332480 · United States
Discontinued model
Data version 1998-01

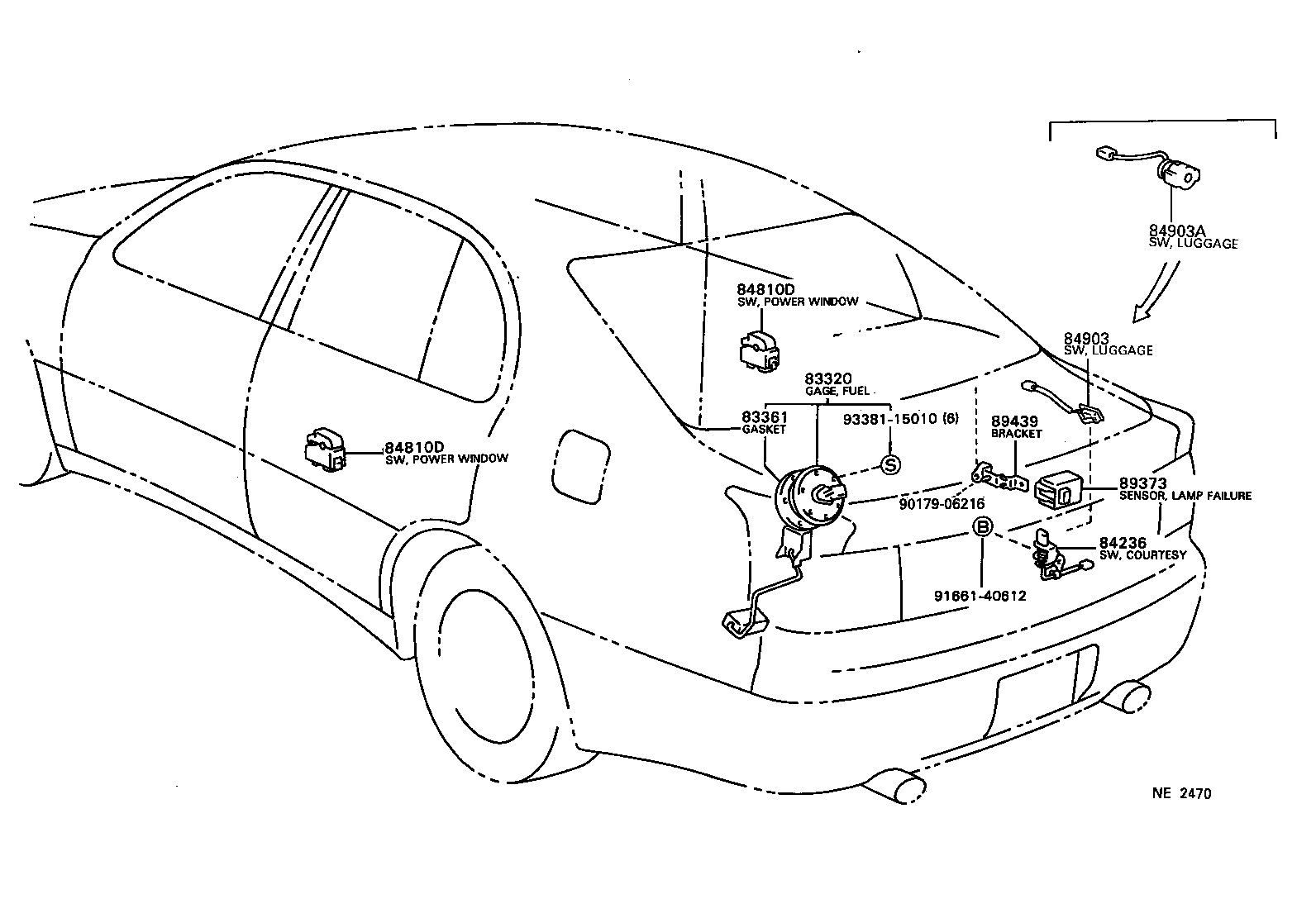

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-80266 |
Gage Assy, Fuel Sender
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 83361 — Gasket, Fuel Sender Gage | ||||
| 83361-30020 |
Gasket, Fuel Sender Gage
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 84236 — Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84231-30140 |
Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-30210 |
Switch Assy, Power Window Regulator, Rear
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 84903 — Switch Sub-assy, Door Un-lock | ||||
| 84903-30020 note |
Switch Sub-assy, Door Un-lock
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 84903-30040 note |
Switch Sub-assy, Door Un-lock
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 84903-50040 note |
Switch Sub-assy, Door Un-lock
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 84903A — Switch Sub-assy, Door Unlock | ||||
| 84903-30051 |
Switch Sub-assy, Door Unlock
1993-01 → 1997-08
ended
|
JZS147 | — | |
| 89373 — Sensor, Lamp Failure Indicator | ||||
| 89373-14070 |
Sensor, Lamp Failure Indicator
1995-08 → 1997-08
ended
|
JZS147 | — | |
| 89373-30200 |
Sensor, Lamp Failure Indicator
1993-01 → 1995-08
ended
|
JZS147 | — | |
| 89439 — Bracket, Sensor | ||||
| 89439-30020 |
Bracket, Sensor
1993-01 → 1997-08
ended
|
JZS147 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
