Toyota Lexus GS300

1993-01 → 1997-08 · chassis JZS147 · catalogue 332480 · United States

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

13 part groups · 2 illustrations

Illustrations

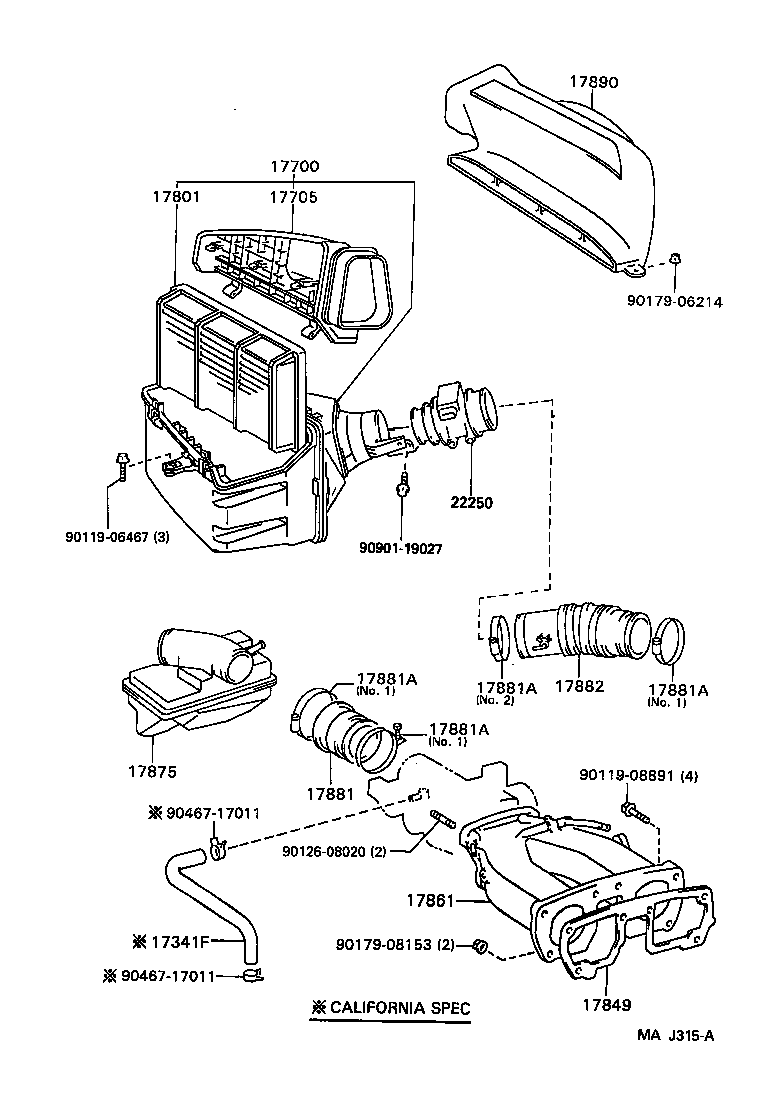

Figure MAG311D MAG311D 1993-01 → 1995-08 Figure MAJ315A MAJ315A 1995-08 → 1997-08

Part groups

PNCDescription
17341F Hose, Air, NO.1
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17849 Gasket, Intake Air Connector
17861 Connector, Intake Air
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17890 Hose Assy, Air Cleaner, NO.2
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
