Toyota Lexus GS300

1993-01 → 1997-08 · chassis JZS147 · catalogue 332480 · United States

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

15 part groups · 3 illustrations

Illustrations

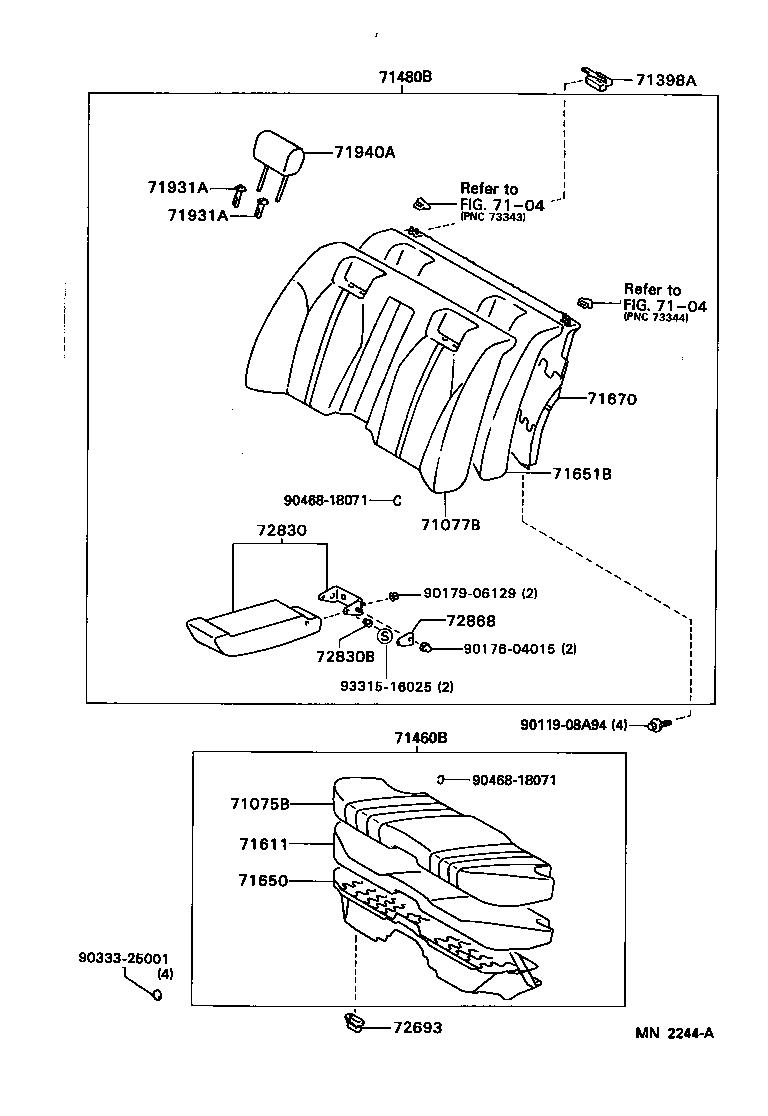

Figure NB1691 NB1691 1993-01 → 1996-08 Figure MN2244A MN2244A 1993-01 → — Figure 676743 676743 1993-01 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71398A Holder, Rear Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71611 Pad, Rear Seat Cushion
71650 Spring Assy, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72693 Hook, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72868 Cover, Center Armrest Hinge, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
