Toyota Lexus GS300

1993-01 → 1997-08 · chassis JZS147 · catalogue 332480 · United States

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 2 illustrations

Illustrations

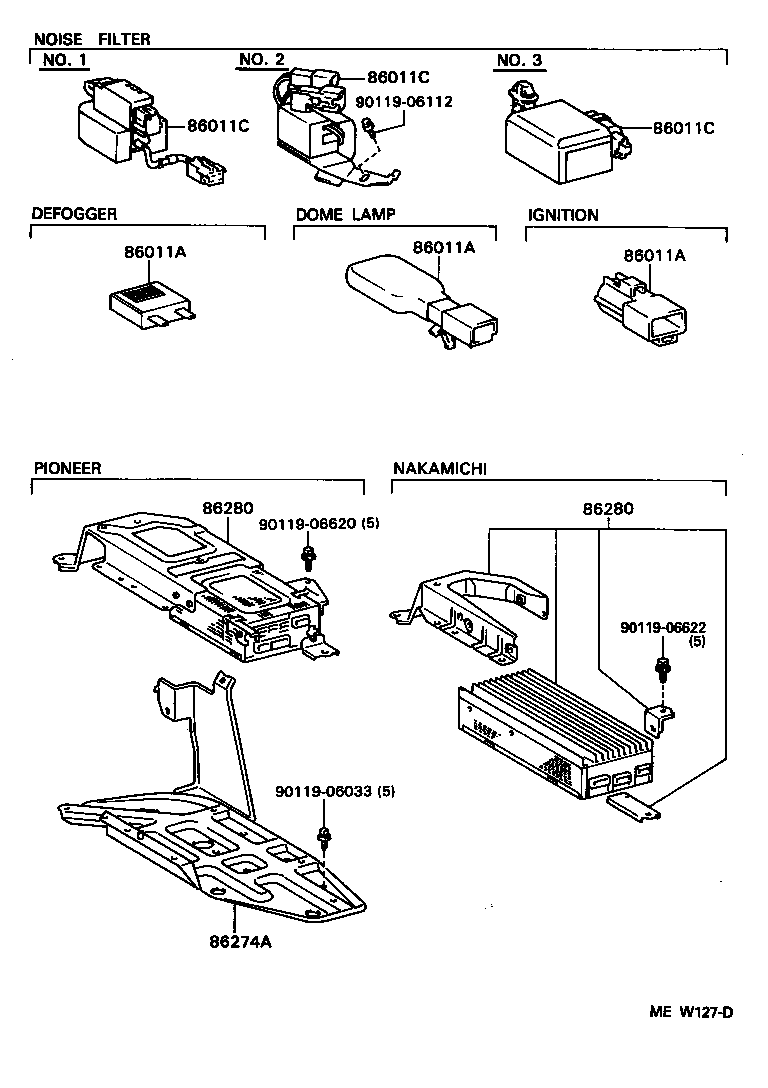

Figure MEW126D MEW126D 1993-01 → 1997-08 Figure MEW127D MEW127D 1993-01 → 1997-08

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120F Knob, Radio Receiver Sub Volume
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86273 Magazine, Disc Player
86274A Bracket, Disc Player
86275A Changer, Disc Player
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
