Toyota Lexus GS300

1993-01 → 1997-08 · chassis JZS147 · catalogue 332480 · United States

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 3 illustrations

Illustrations

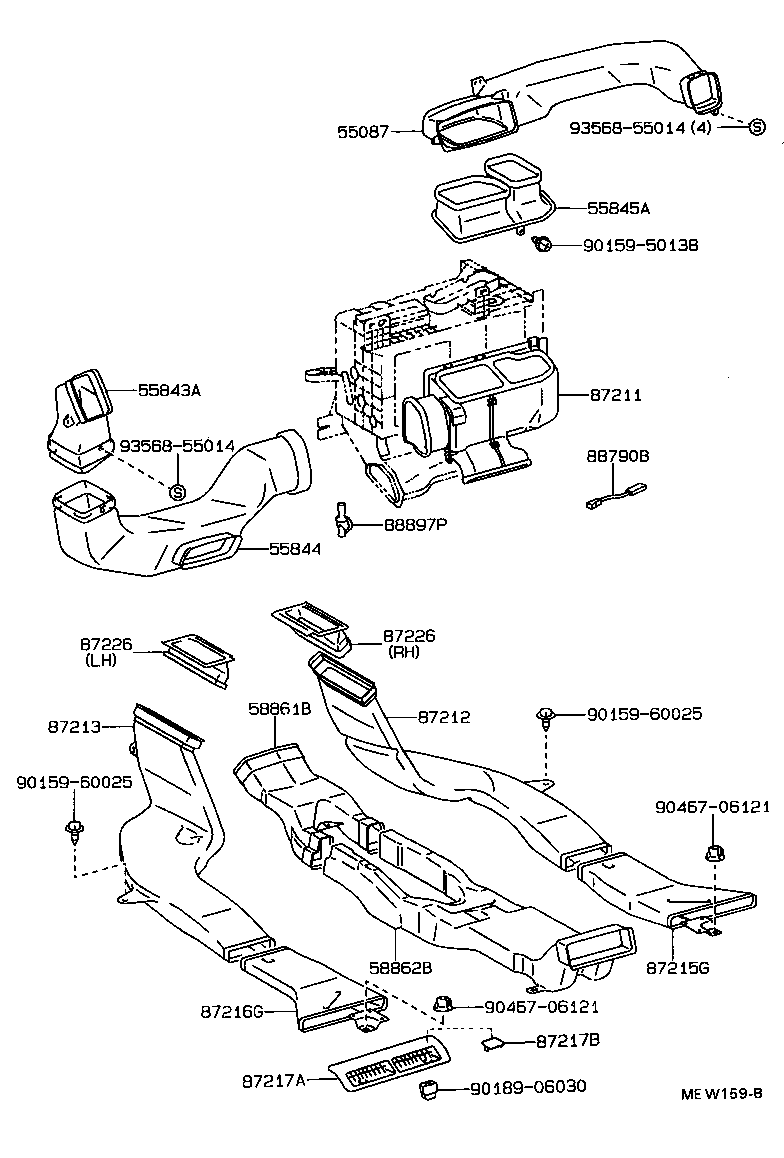

Figure NE2471 NE2471 1993-01 → 1997-08 Figure MEW159B MEW159B 1993-01 → 1997-08 Figure MEW160C MEW160C 1993-01 → 1997-08

Part groups

PNCDescription
55087 Duct Sub-assy, Heater TO Register, NO.4
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215G Guide, Air Duct, Rear RH
87216G Guide, Air Duct, Rear LH
87217A Duct, Air, Rear NO.6
87217B Plug, Air Duct
87226 Adapter, Air Duct
88484 Wire, Cooler, NO.1
88625C Thermistor, Cooler
88650M Computer Assy, Air Conditioner
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
