Toyota Lexus GS300/400/430
1997-08 → 2005-01 · chassis JZS160,UZS16# · catalogue 332490 · United States
Discontinued model
Data version 2005-07

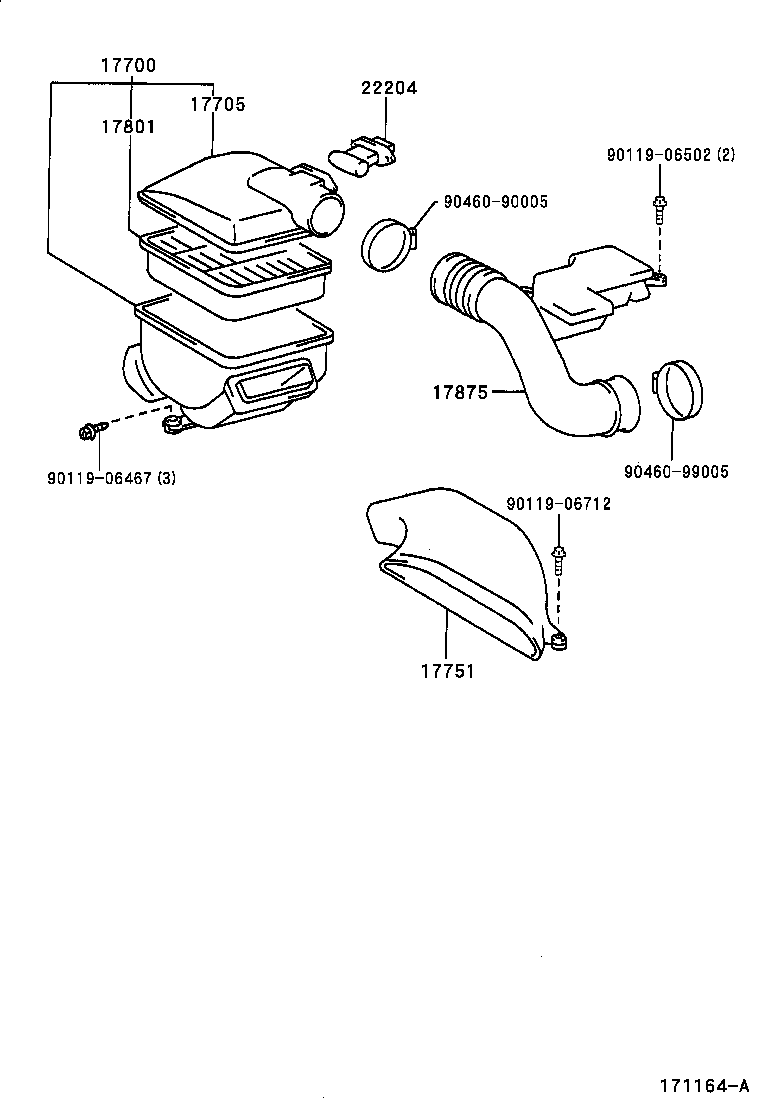

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-46320 |
Cleaner Assy, Air
1997-08 → 2000-07
ended
|
2JZGE JZS160 | — | |
| 17700-46321 |
Cleaner Assy, Air
2000-07 → 2005-01
ended
|
2JZGE JZS160 | — | |
| 17700-50150 |
Cleaner Assy, Air
1997-08 → 2000-07
ended
|
1UZFE UZS160 | — | |
| 17700-50240 |
Cleaner Assy, Air
2000-07 → 2002-05
ended
|
3UZFE UZS161 | — | |
| 17700-50241 |
Cleaner Assy, Air
2002-05 → 2005-01
ended
|
3UZFE UZS161 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-46110 |
Cap Sub-assy, Air Cleaner
1997-08 → —
|
2JZGE JZS160 | — | |
| 17705-50100 |
Cap Sub-assy, Air Cleaner
1997-08 → 2000-07
ended
|
1UZFE UZS160 | — | |
| 17705-50150 |
Cap Sub-assy, Air Cleaner
2000-07 → 2002-05
ended
|
3UZFE UZS161 | — | |
| 17705-50151 |
Cap Sub-assy, Air Cleaner
2002-05 → —
|
3UZFE UZS161 | — | |
| 17751 — Inlet, Air Cleaner, NO.1 | ||||
| 17751-46110 |
Inlet, Air Cleaner, NO.1
1997-08 → —
|
2JZGE JZS160 | — | |
| 17751-50060 |
Inlet, Air Cleaner, NO.1
1997-08 → 2000-07
ended
|
1UZFE UZS160 | — | |
| 17751-50090 |
Inlet, Air Cleaner, NO.1
2000-07 → —
|
3UZFE UZS161 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-46080 |
Element Sub-assy, Air Cleaner Filter
1997-08 → 2005-01
ended
|
2JZGE JZS160 | — | |
| 17801-50030 |
Element Sub-assy, Air Cleaner Filter
1997-08 → 2000-07
ended
|
1UZFE UZS160 | — | |
| 17801-50060 |
Element Sub-assy, Air Cleaner Filter
2000-07 → —
|
3UZFE UZS161 | — | |
| 17875 — Pipe, Intake Air Connector | ||||
| 17875-50170 |
Pipe, Intake Air Connector
1997-08 → 2000-07
ended
|
1UZFE UZS160 | — | |
| 17875-50250 |
Pipe, Intake Air Connector
2000-07 → —
|
3UZFE UZS161 | — | |
| 22204 — Meter Sub-assy, Intake Air Flow | ||||
| 22204-15010 |
Meter Sub-assy, Intake Air Flow
2000-07 → —
|
3UZFE UZS161 | — | |
| 22204-20010 |
Meter Sub-assy, Intake Air Flow
1997-08 → 2000-07
ended
|
2JZGE JZS160 | — | |
| 22204-20010 |
Meter Sub-assy, Intake Air Flow
1997-08 → 2000-07
ended
|
1UZFE UZS160 | — | |
| 22204-22010 |
Meter Sub-assy, Intake Air Flow
2000-07 → —
|
2JZGE JZS160 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
