Toyota Lexus GS300/400/430
1997-08 → 2005-01 · chassis JZS160,UZS16# · catalogue 332490 · United States
Discontinued model
Data version 2005-07

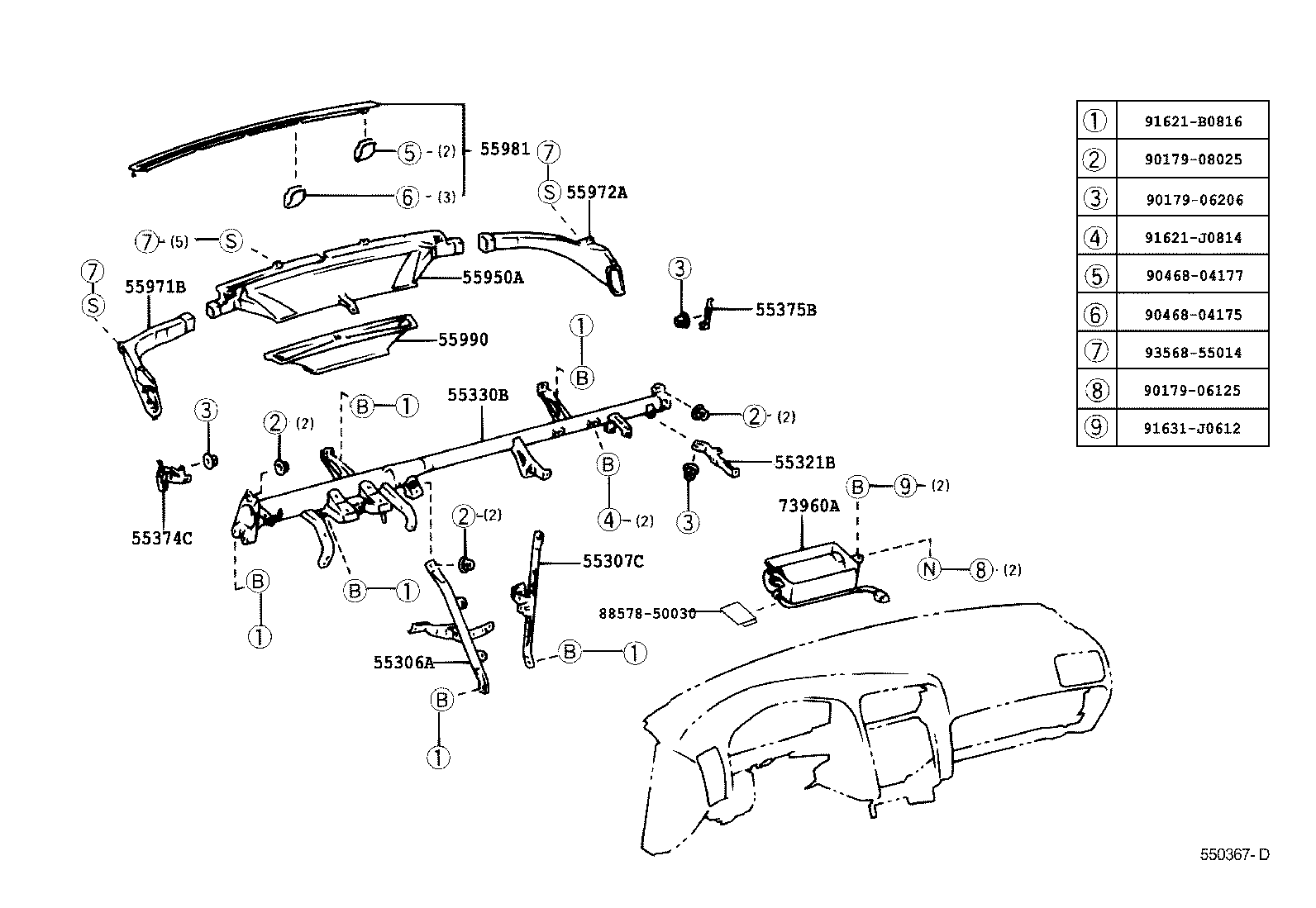

Instrument Panel & Glove Compartment
45 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55321B | Bracket, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55368A | Bracket, Radio Mounting, NO.2 |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55384C | Bracket, Finish Panel Mounting, NO.4 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55402D | Pad Sub-assy, Instrument Panel Safety, NO.1 |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55407D | Pad Sub-assy, Instrument Panel, End |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55445B | Plate, Instrument Panel Finish |
| 55445C | Plate, Instrument Panel Box |
| 55446A | Base, Switch Hole, NO.1 |
| 55450B | Box Assy, Coin |
| 55458D | Cover, Instrument Lower, RH |
| 55489B | Lens, Front Foot Lamp, NO.2 |
| 55509C | Panel Sub-assy, Glove Compartment |
| 55510 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55565 | Handle, Glove Compartment Door Lock |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55990 | Nozzle Assy, Center Defroster |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
