Toyota Lexus GS300/400/430
1997-08 → 2005-01 · chassis JZS160,UZS16# · catalogue 332490 · United States
Discontinued model
Data version 2005-07

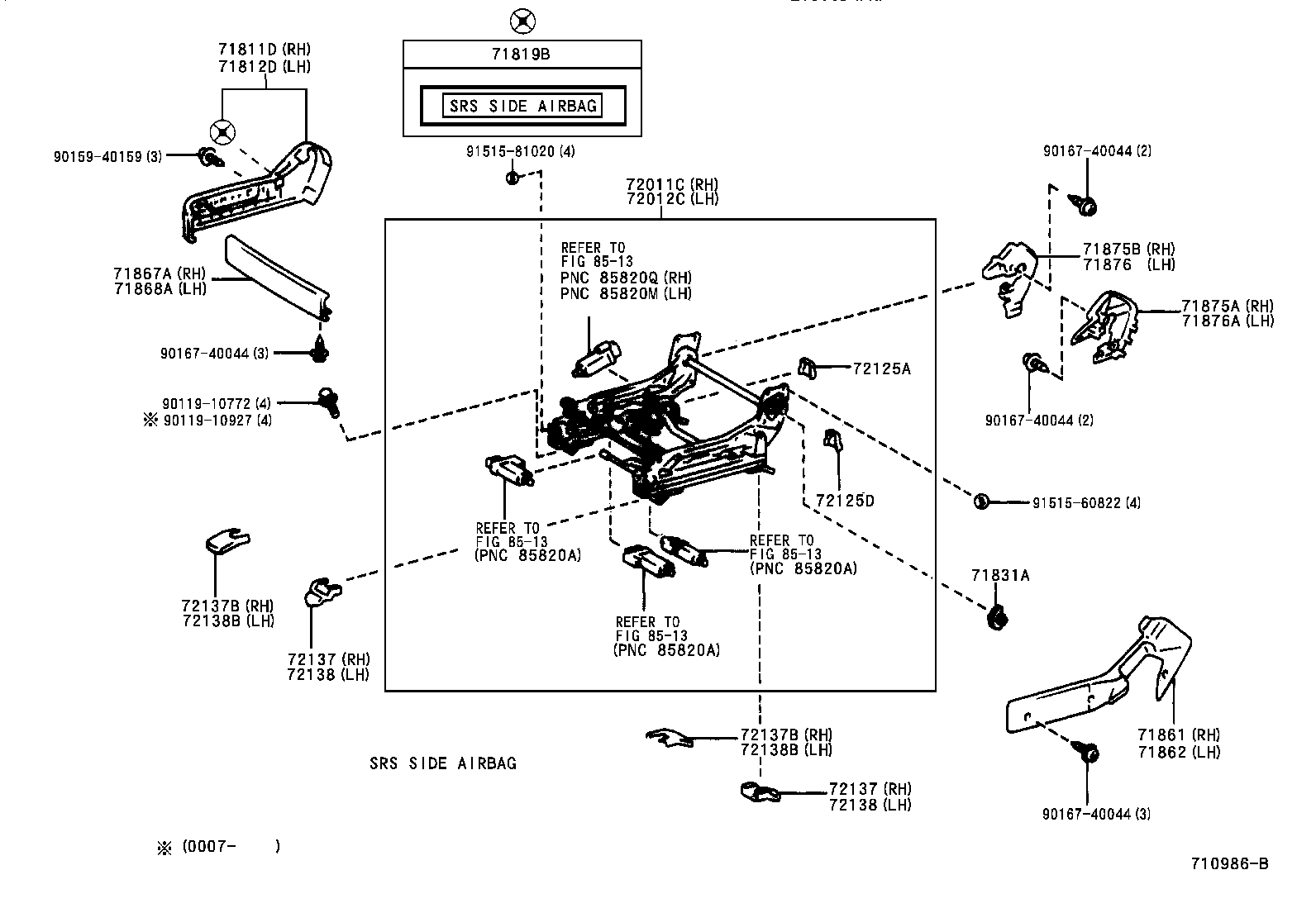

Front Seat & Seat Track
39 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71819B | Label, Side Airbag Name |
| 71831A | Cover, Front Seat Hinge |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72011C | Adjuster Sub-assy, Front Seat, RH |
| 72012C | Adjuster Sub-assy, Front Seat, LH |
| 72125A | Cover, Seat Track, Upper Rear |
| 72125D | Cover, Seat Track, Upper Rear NO.2 |
| 72137 | Cover, Seat Track, Outer RH |
| 72137B | Cover, Seat Track, RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72138B | Cover, Seat Track, LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 72797 | Spacer, Lumbar Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
