Toyota Lexus GS300/400/430
1997-08 → 2005-01 · chassis JZS160,UZS16# · catalogue 332490 · United States
Discontinued model
Data version 2005-07

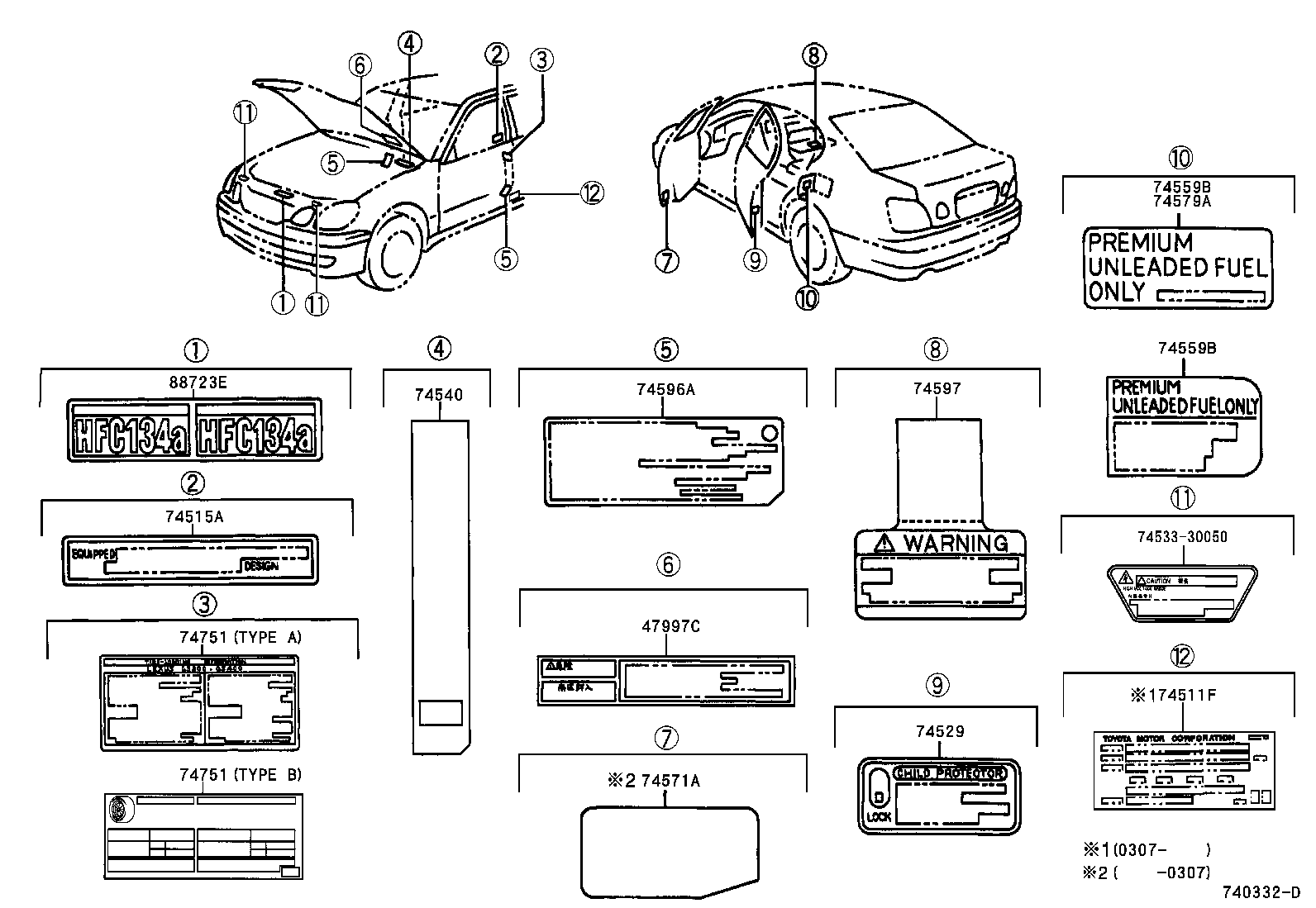

Caution Plate (EXTERIOR & INTERIOR)
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11277A | Plate, Engine Specification, NO.2 |
| 11286B | Plate, Engine Specification |
| 11289B | Label, Spark Plug Notice |
| 11291B | Plate, Engine Name |
| 11296C | Label, Engine Service Information |
| 11297C | Label, Engine Service Information, NO.2 |
| 11298B | Label, Emission Control Information |
| 13564 | Label, Timing Belt Replacement Information |
| 17792C | Label, Engine Vacuum Hose Information |
| 47997C | Label, Accumulator Caution, NO.1 |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515A | Plate, Theft Warning |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74540 | Plate, Fuse Block Caution |
| 74559B | Label, Fuel Information |
| 74571A | Film, Label Cover |
| 74579A | Label, Unleaded Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74597 | Label, Driver & Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 88723E | Label, Cooler Service Caution |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
