Toyota Lexus GS300/400/430

1997-08 → 2005-01 · chassis JZS160,UZS16# · catalogue 332490 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

17 part groups · 2 illustrations

Illustrations

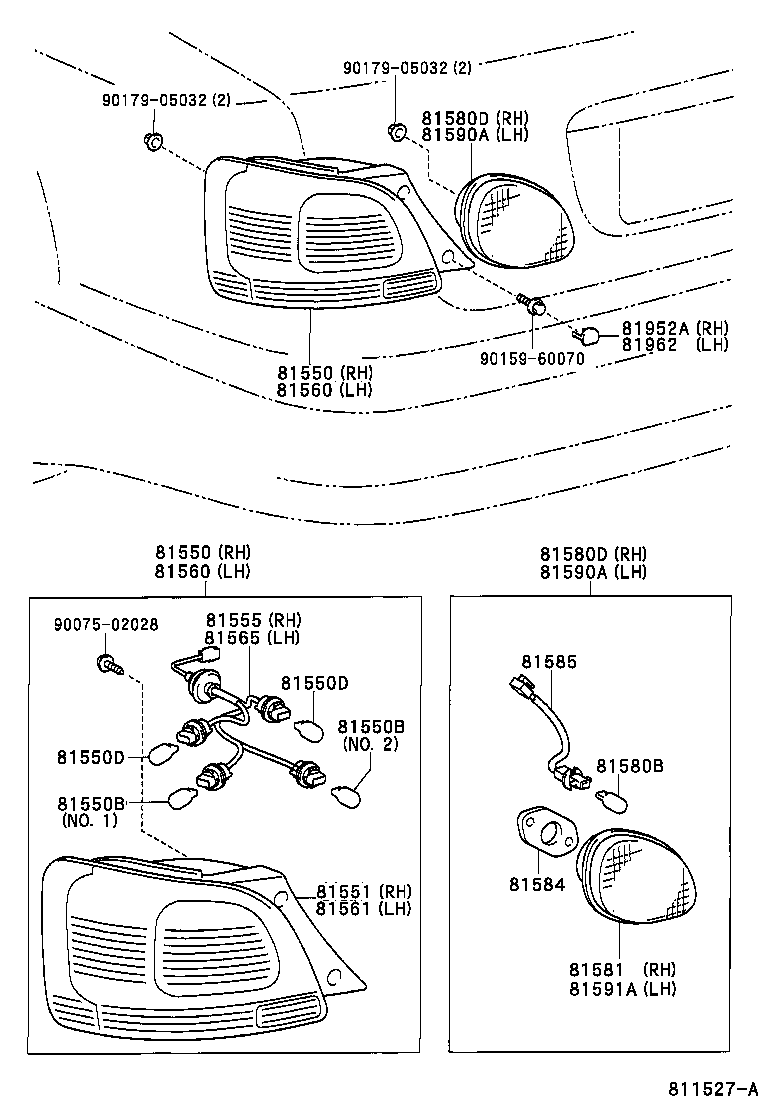

Figure 810631 810631 1997-08 → 2000-07 Figure 811527A 811527A 2000-07 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81550D Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580B Bulb (FOR REAR LAMP)
81580D Lamp Assy, Rear, RH
81581 Lens, Rear Lamp
81584 Packing, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81590A Lamp Assy, Rear, LH
81591A Lens Rear Lamp
81952A Cover, Rear Lamp, RH
81962 Cover, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
