Toyota Lexus GS300/400/430
1997-08 → 2005-01 · chassis JZS160,UZS16# · catalogue 332490 · United States
Discontinued model
Data version 2005-07
Electronic Fuel Injection System

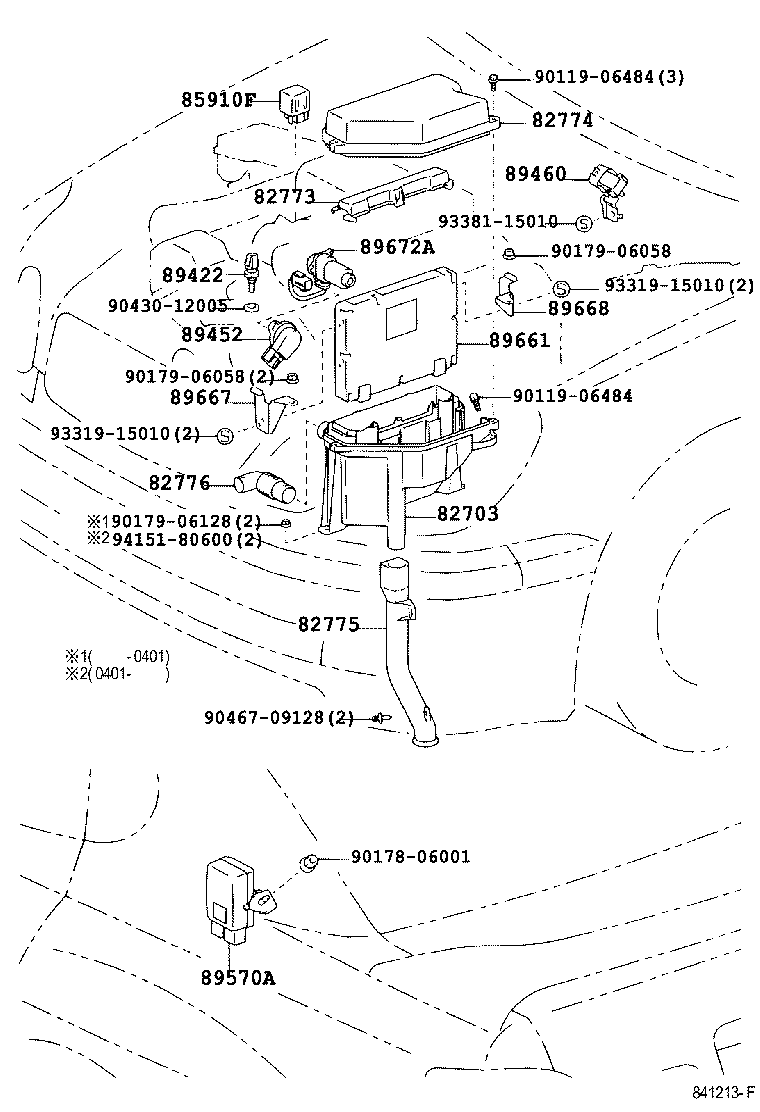

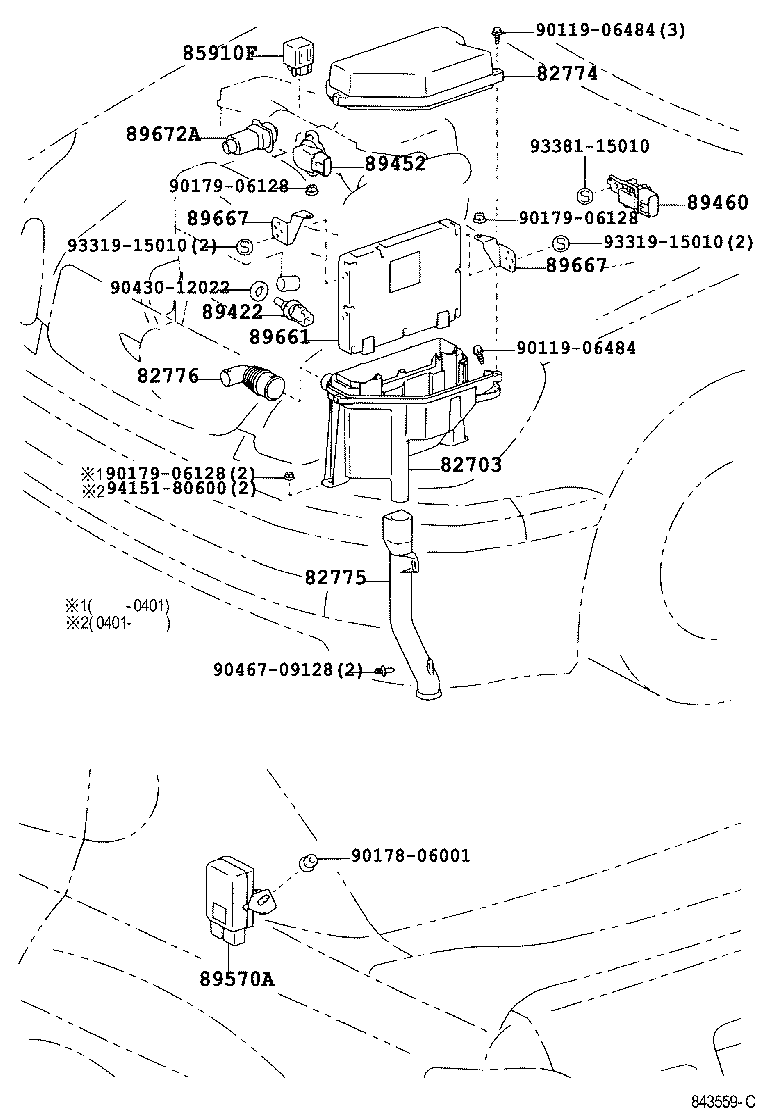

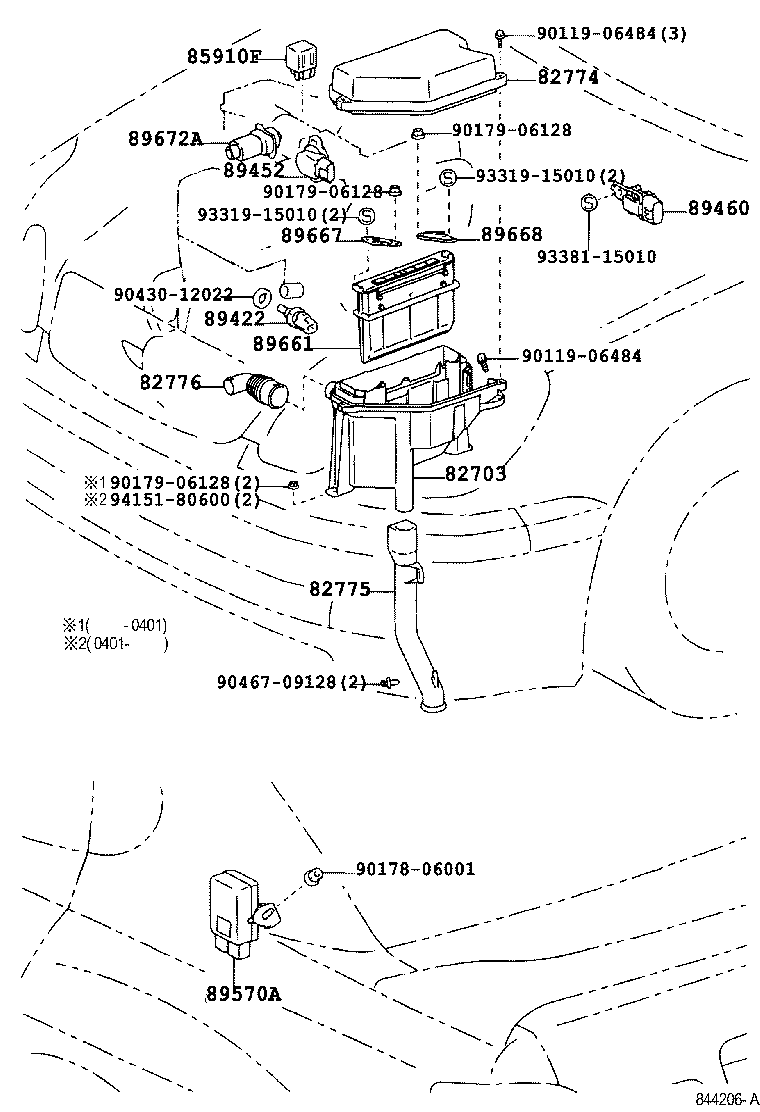

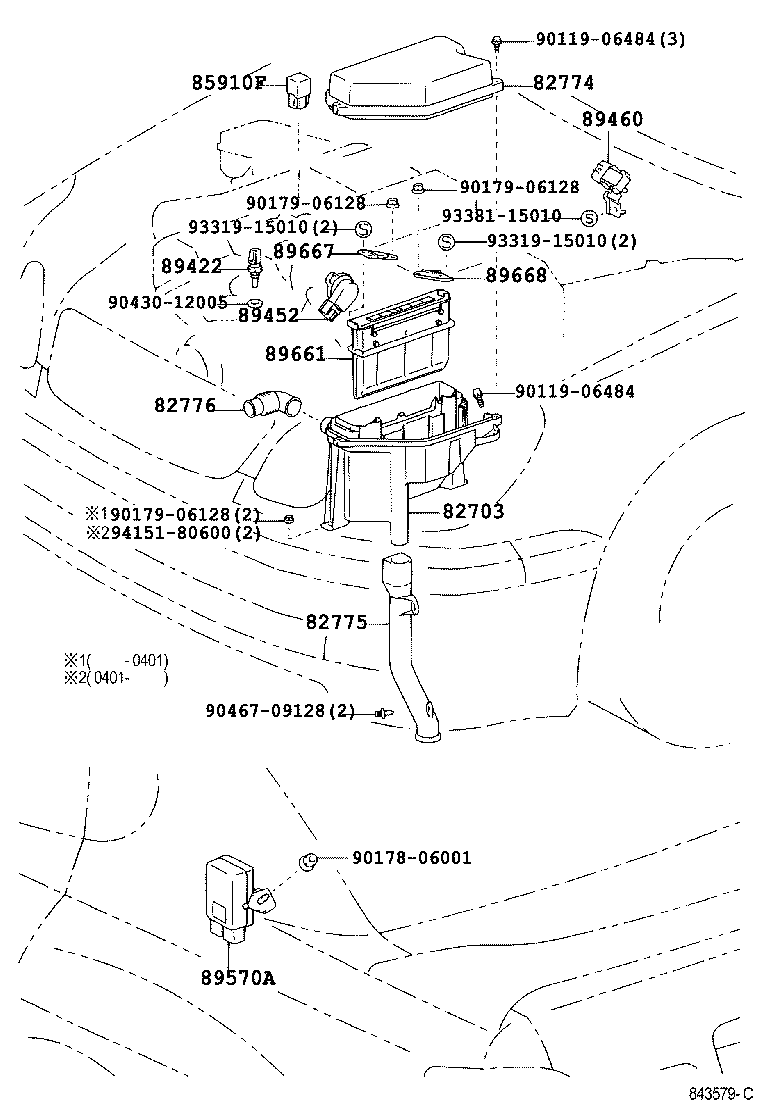

14 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 82703 | Box Sub-assy, Engine Room Ecu |
| 82773 | Hood, Engine Room Ecu |
| 82774 | Cover, Engine Room Ecu |
| 82775 | Duct, Engine Room Ecu Inlet |
| 82776 | Duct, Engine Room Ecu Outlet |
| 85910F | Relay, Computer (FOR EFI) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89460 | Sensor Assy, Vapor Pressure |
| 89570A | Computer Assy, Fuel Pump Control |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
| 89672A | Motor, Throttle Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
