Toyota Lexus GS300/400/430

1997-08 → 2005-01 · chassis JZS160,UZS16# · catalogue 332490 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

8 part groups · 2 illustrations

Illustrations

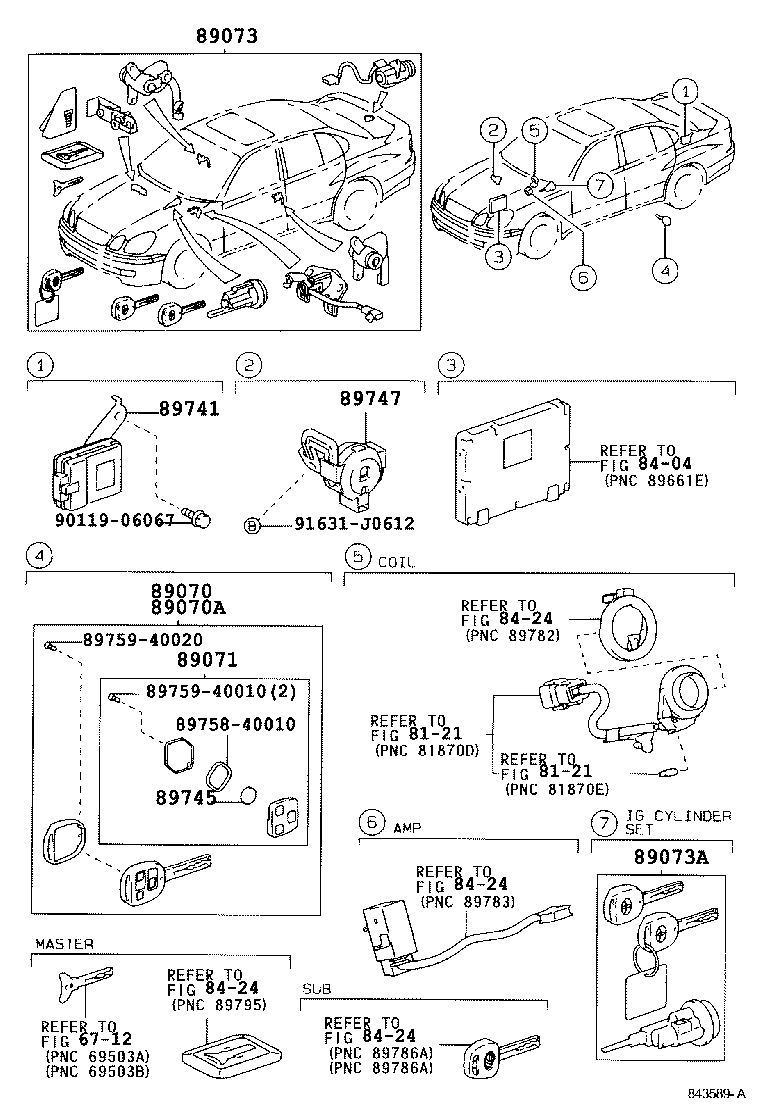

Figure 841904C 841904C 1997-08 → 2000-07 Figure 843589A 843589A 2000-07 → —

Part groups

PNCDescription
89070 Transmitter Assy, Door Control
89070A Transmitter, Door Control (CUT KEY)
89071 Module Set, Transmitter Sub-assy, Door Control
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89741 Receiver, Door Control
89745 Battery, Transmitter
89747 Buzzer, Wireless Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
