Toyota Lexus GS300/400/430

1997-08 → 2005-01 · chassis JZS160,UZS16# · catalogue 332490 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

14 part groups · 3 illustrations

Illustrations

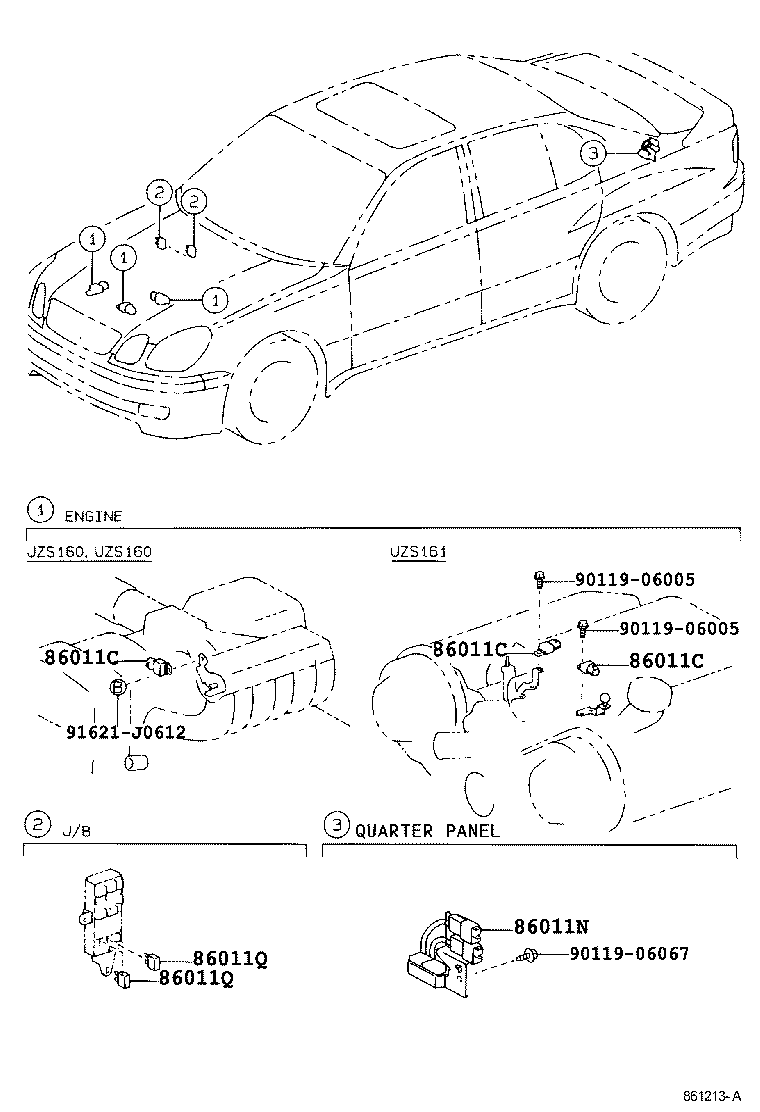

Figure 860666E 860666E 1997-08 → — Figure 860429H 860429H 1997-08 → — Figure 861213A 861213A 1997-08 → —

Part groups

PNCDescription
86011C Filter, Noise
86011N Filter, Noise
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86240 Equalizer Assy,Stereo Component
86273 Magazine, Disc Player
86274A Bracket, Disc Player
86275A Changer, Disc Player
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
