Toyota Lexus GS300/400/430

1997-08 → 2005-01 · chassis JZS160,UZS16# · catalogue 332490 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

13 part groups · 2 illustrations

Illustrations

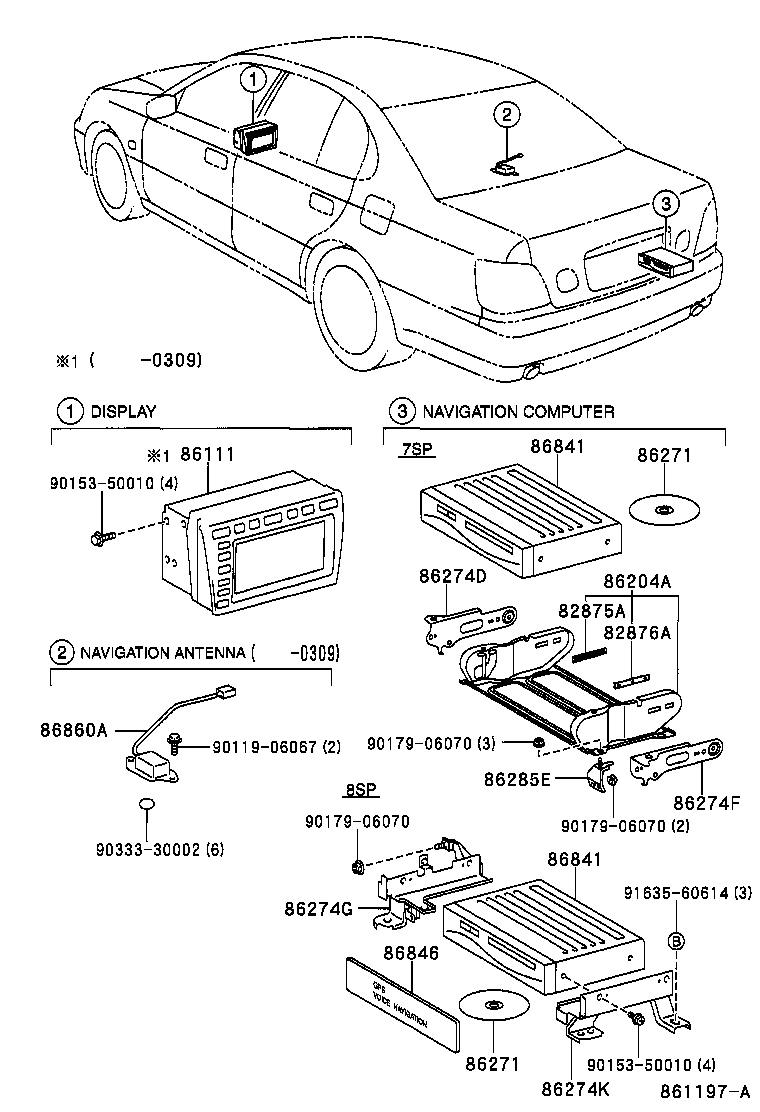

Figure 860491B 860491B 1997-08 → 2000-07 Figure 861197A 861197A 2000-07 → —

Part groups

PNCDescription
82875A Guide, Computer Integration Bracket, NO.5
82876A Guide, Computer Integration Bracket, NO.6
86111 Multi-display
86204A Bracket Sub-assy, Disc Player
86271 Disc, Disc Player
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86274G Bracket, Disc Player, NO.3
86274K Bracket, Disc Player, NO.4
86285E Bracket, Amplifier, NO.1
86841 Computer, Navigation
86846 Plate, Navigation Computer
86860A Antenna, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
