Toyota Lexus GS300/400/430

1997-08 → 2005-01 · chassis JZS160,UZS16# · catalogue 332490 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

9 part groups · 2 illustrations

Illustrations

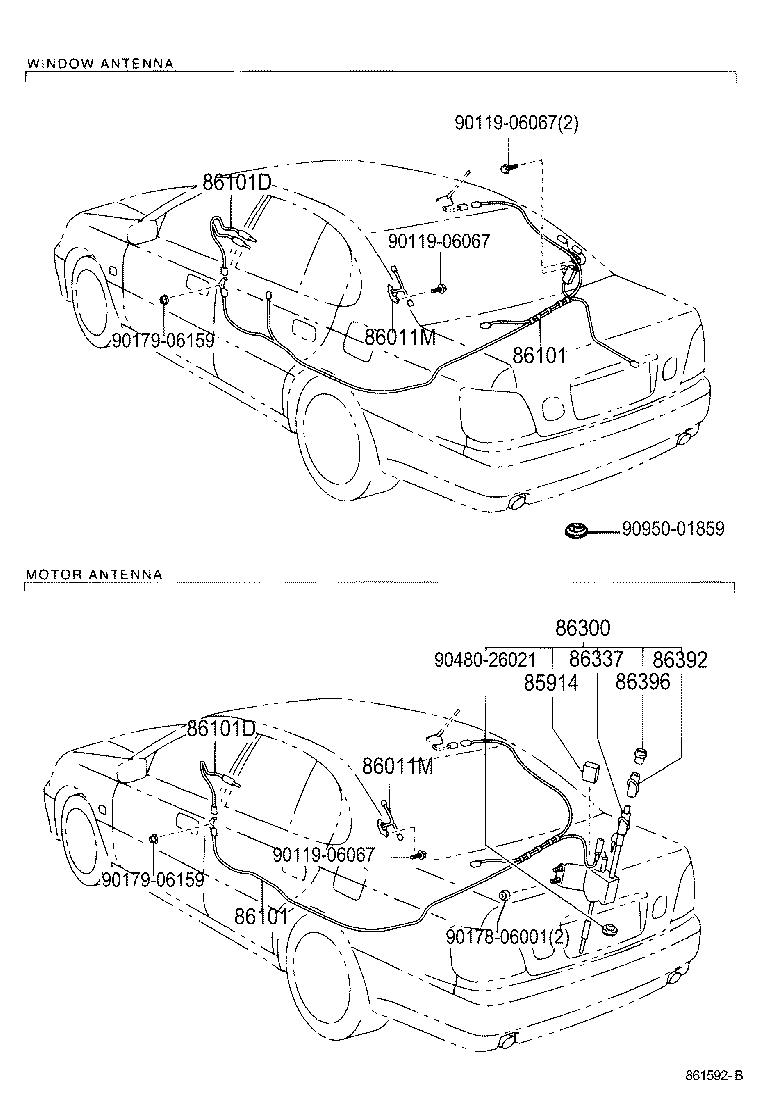

Figure 860470D 860470D 1997-08 → 2001-10 Figure 861592B 861592B 2001-10 → 2005-01

Part groups

PNCDescription
85914 Relay, Motor Antenna Control
86011M Filter, Noise
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86300 Antenna Assy, W/Holder
86337 Rod & Pipe, Sealed W/Cable
86392 Ornament, Antenna
86396 Nut, Antenna
86705A Cord Sub-assy, Telephone Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
