Toyota Lexus GS300/400/430
1997-08 → 2005-01 · chassis JZS160,UZS16# · catalogue 332490 · United States
Discontinued model
Data version 2005-07
Telephone & Mayday

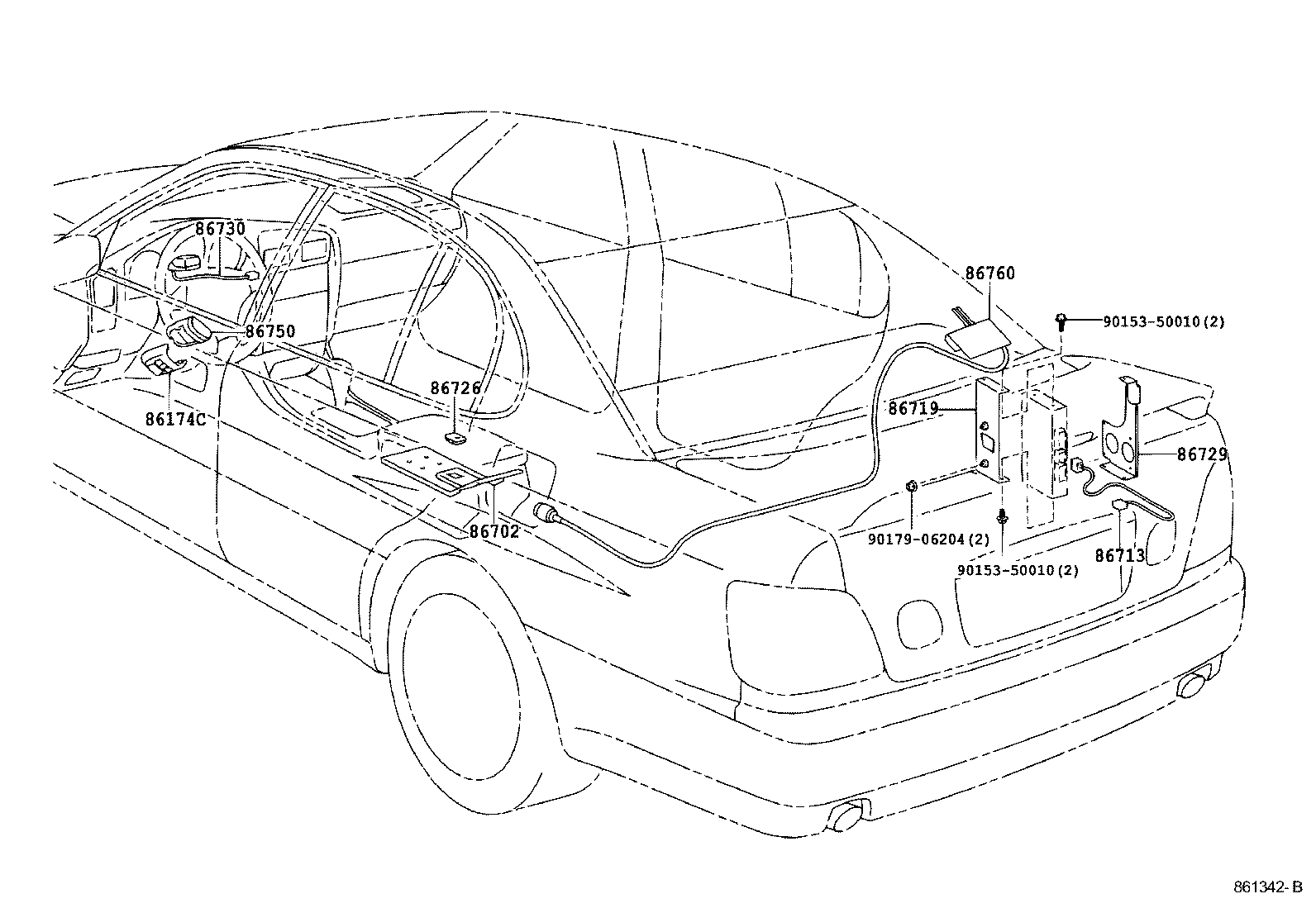

18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82817R | Protector, Wiring Harness, NO.16 |
| 86011L | Filter, Noise |
| 86070 | Mobilephone & Accessory Assy |
| 86174C | Case, Switch & Volume |
| 86702 | Bracket Set, Telephone |
| 86713 | Wire, Telephone Computer |
| 86719 | Bracket, Telephone |
| 86719A | Bracket, Telephone NO.1 |
| 86723 | Wire, Mobilephone |
| 86724 | Guide, Curl Cord |
| 86726 | Cover, Mobilephone |
| 86729 | Bracket, Mobilephone |
| 86730 | Microphone Assy, Telephone |
| 86750 | Switch Assy, Telephone |
| 86760 | Antenna Assy, Telephone |
| 86761 | Rod, Telephone Antenna |
| 86762 | Base, Telephone Antenna |
| 87268E | Protector, Telephone Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
