Toyota Lexus GS Series

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3324A0 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

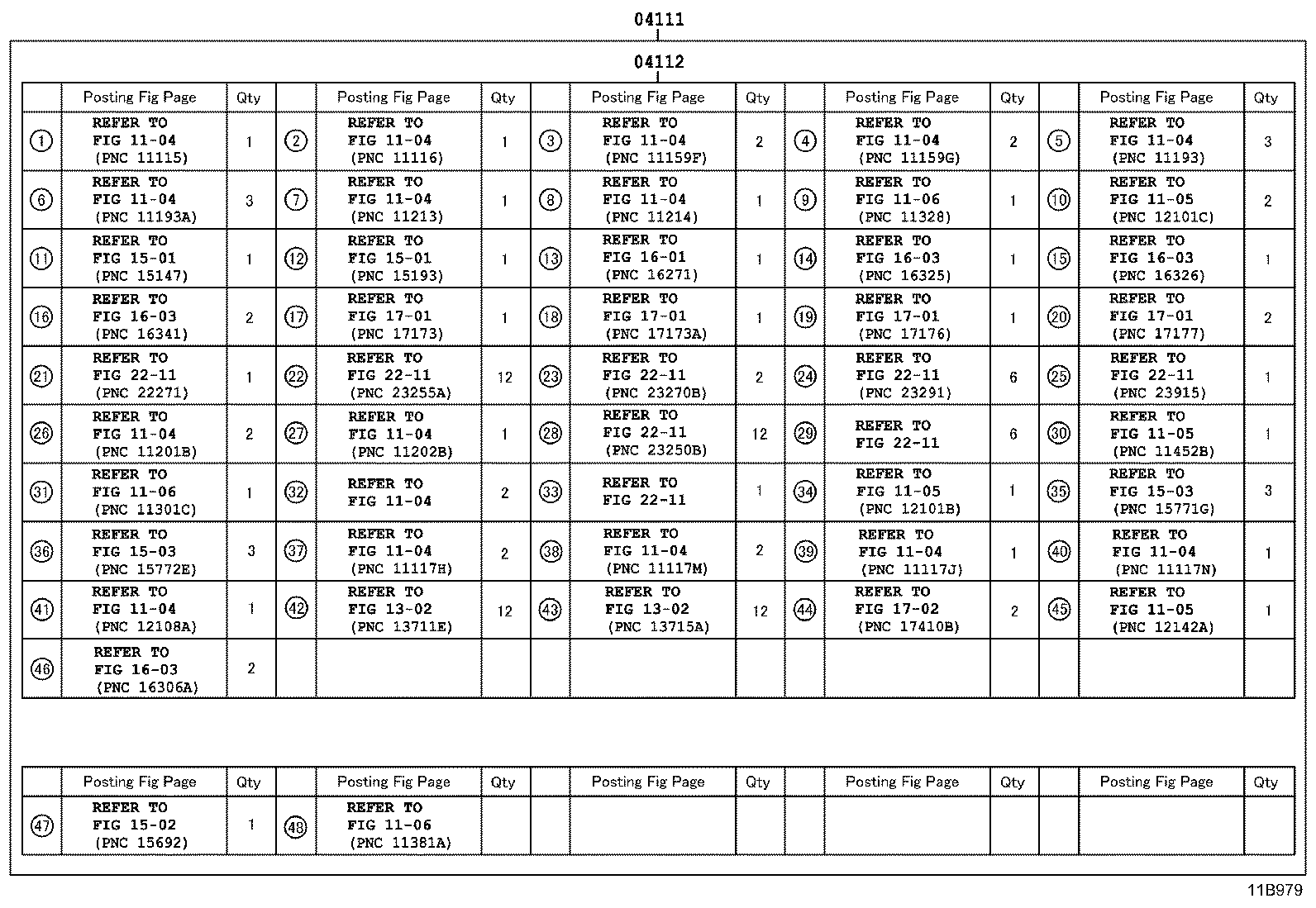

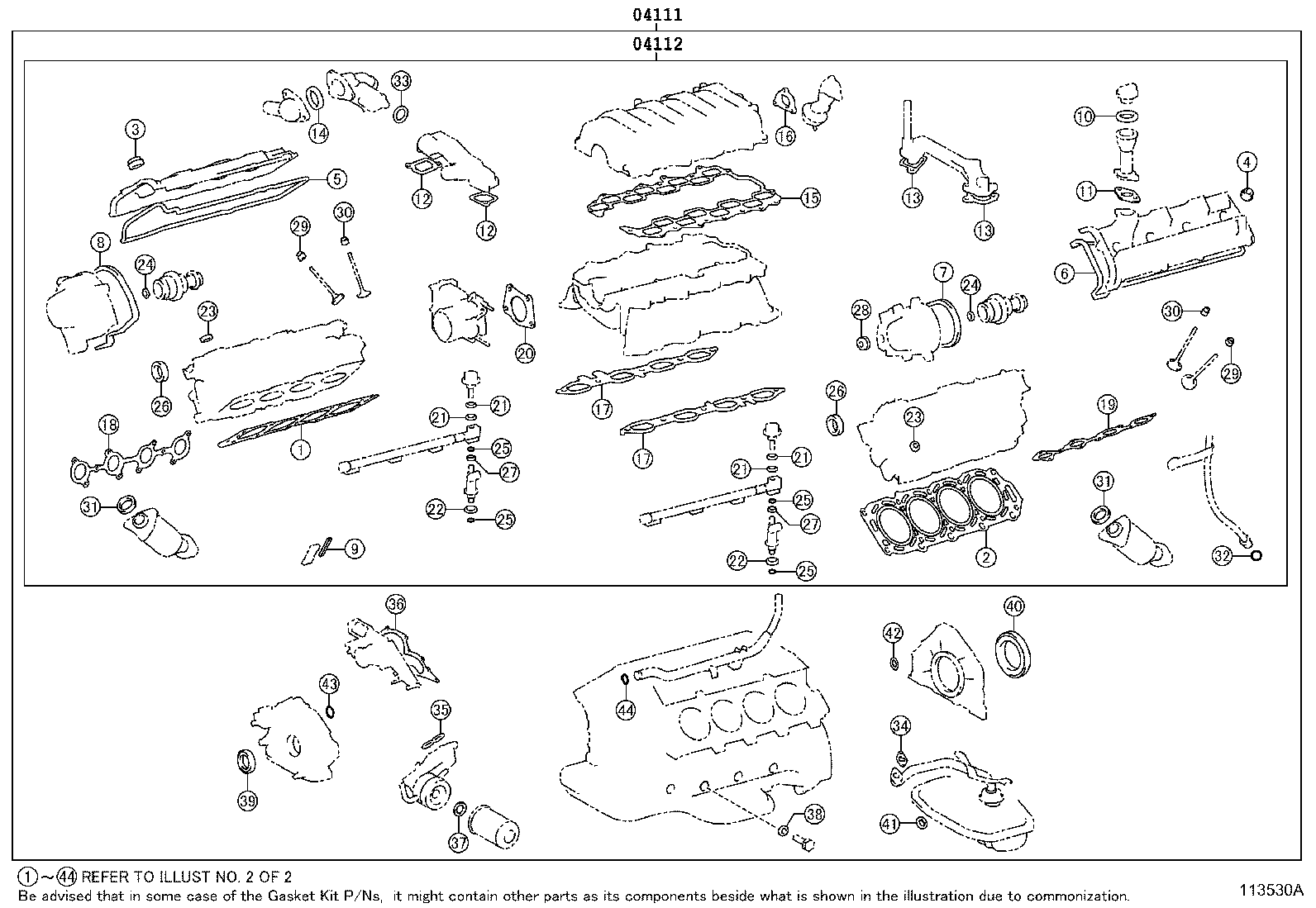

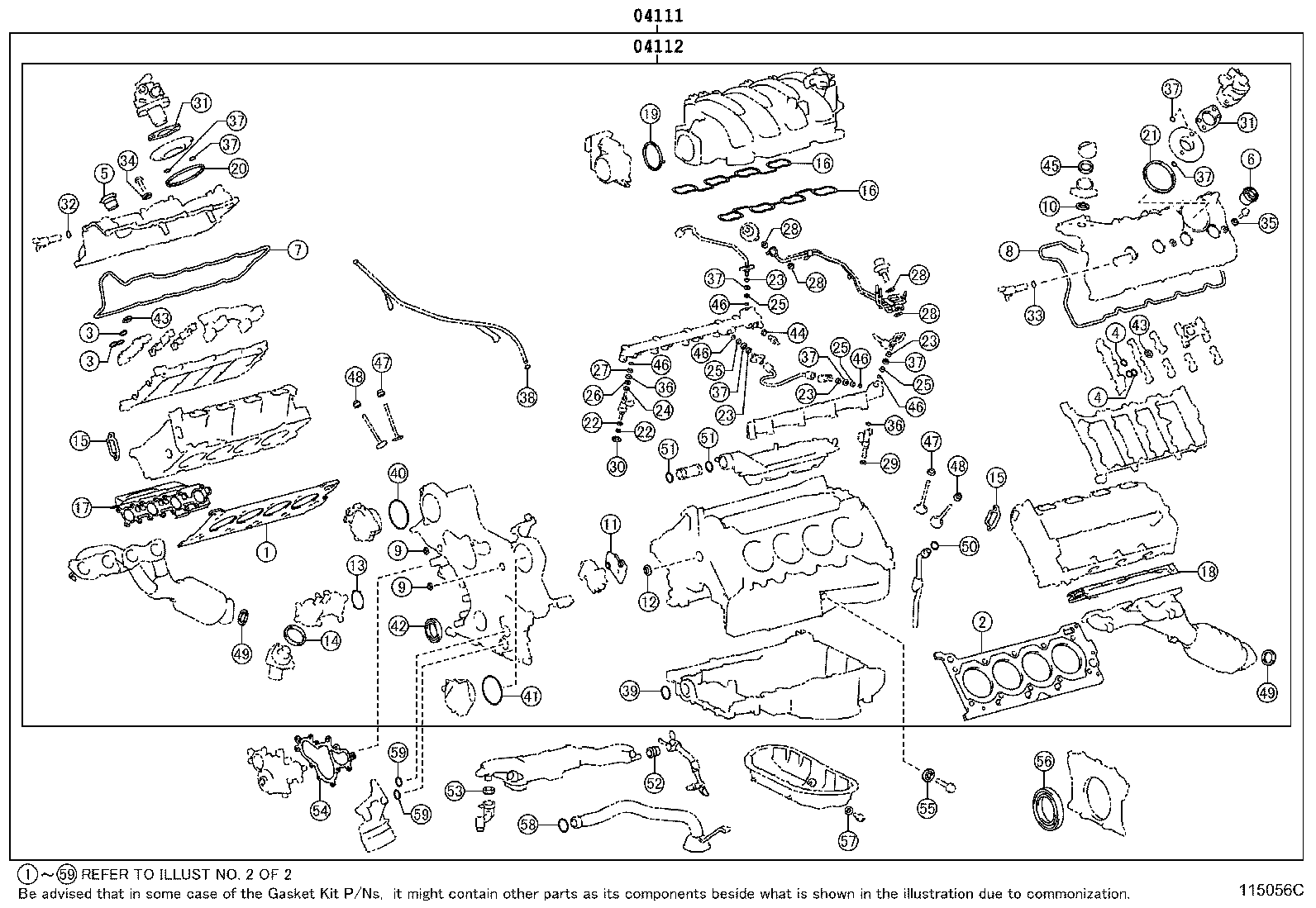

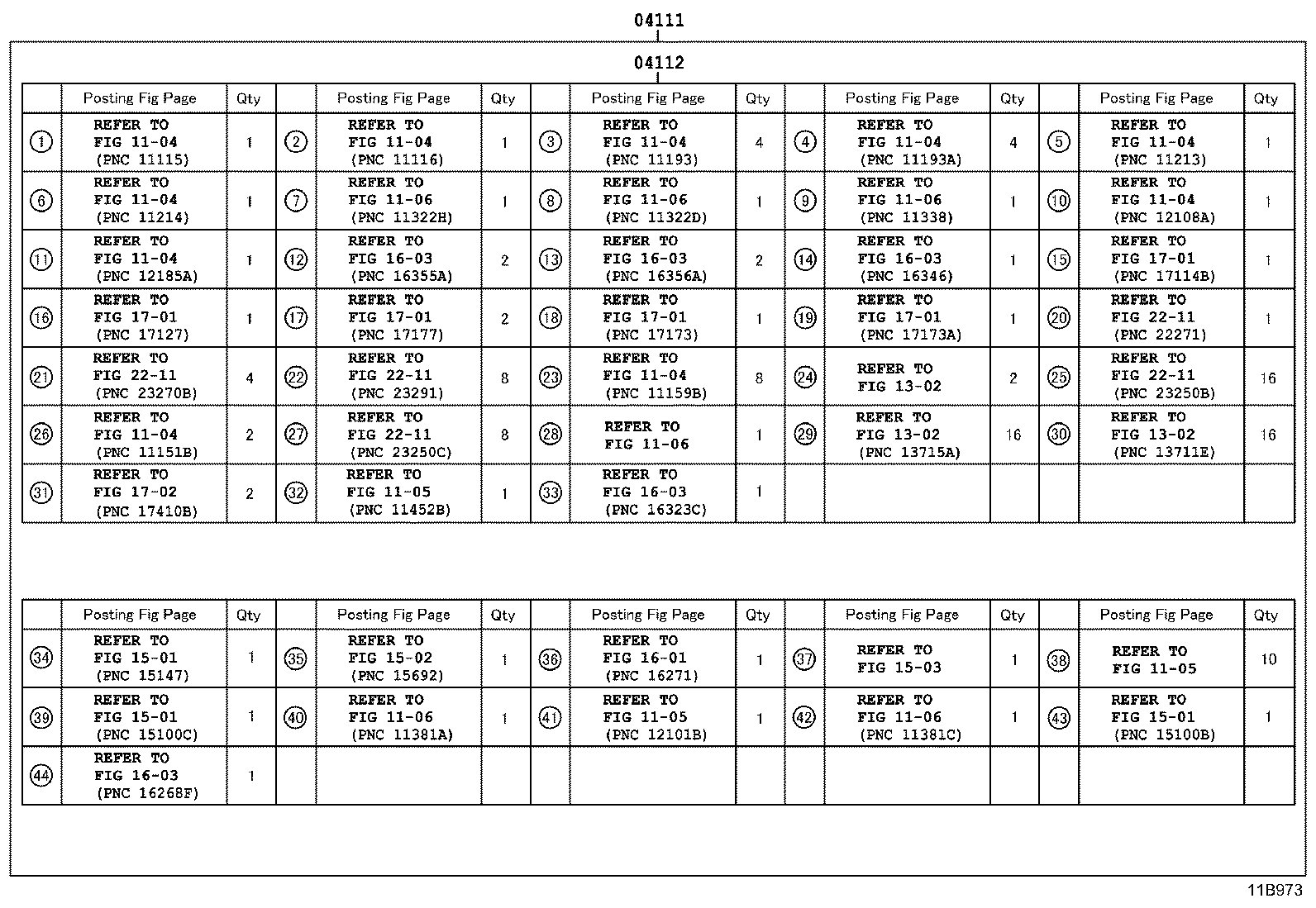

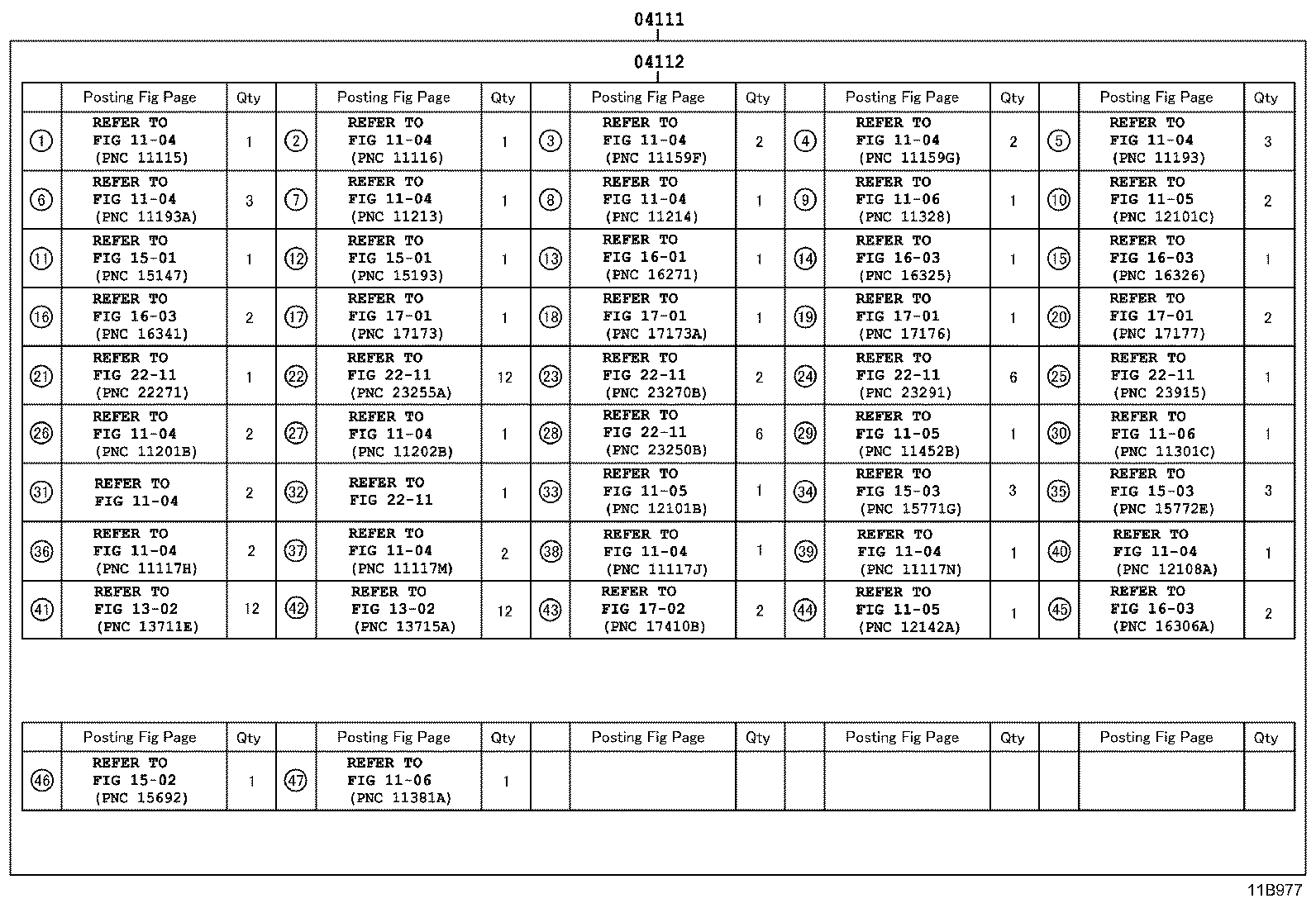

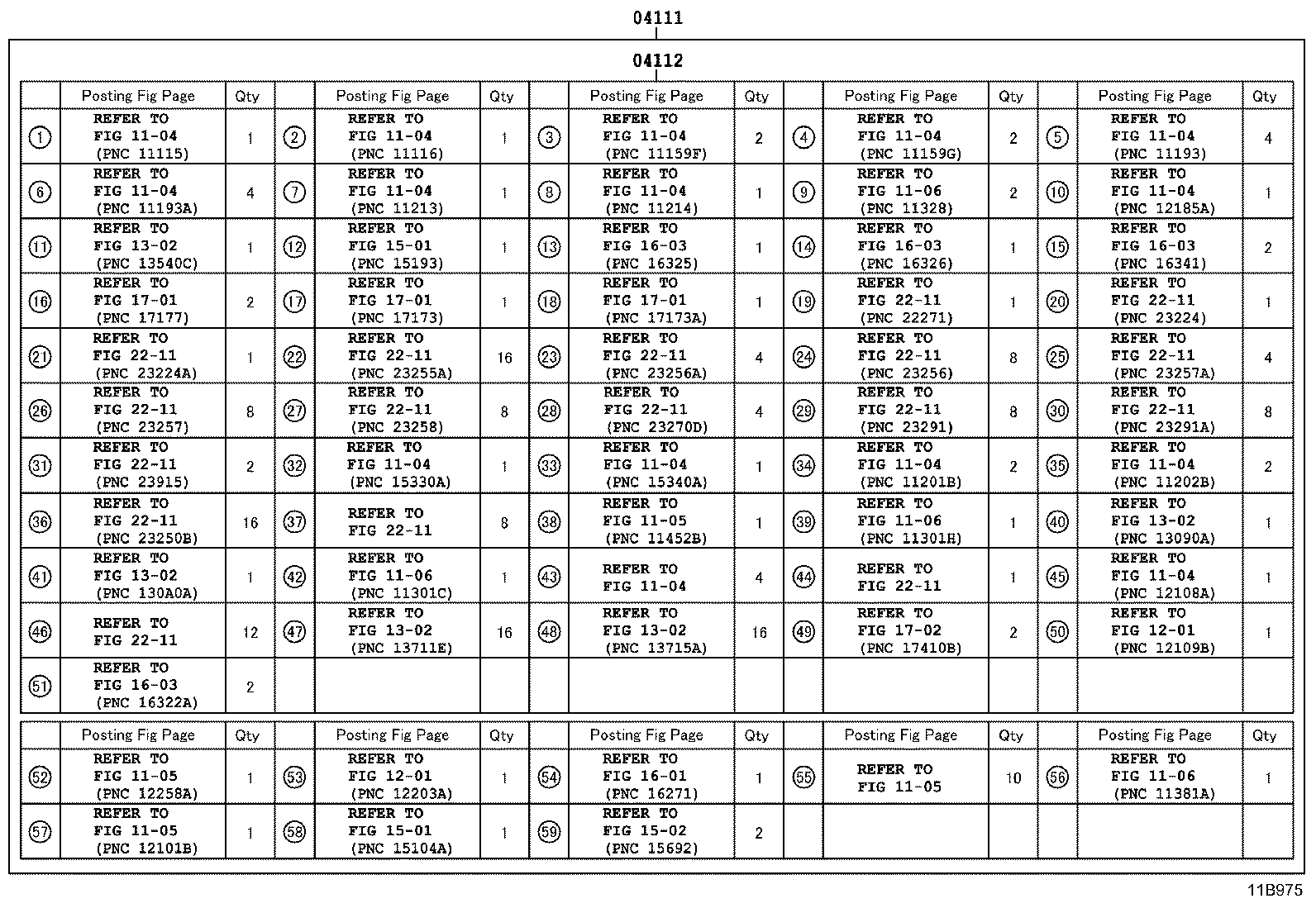

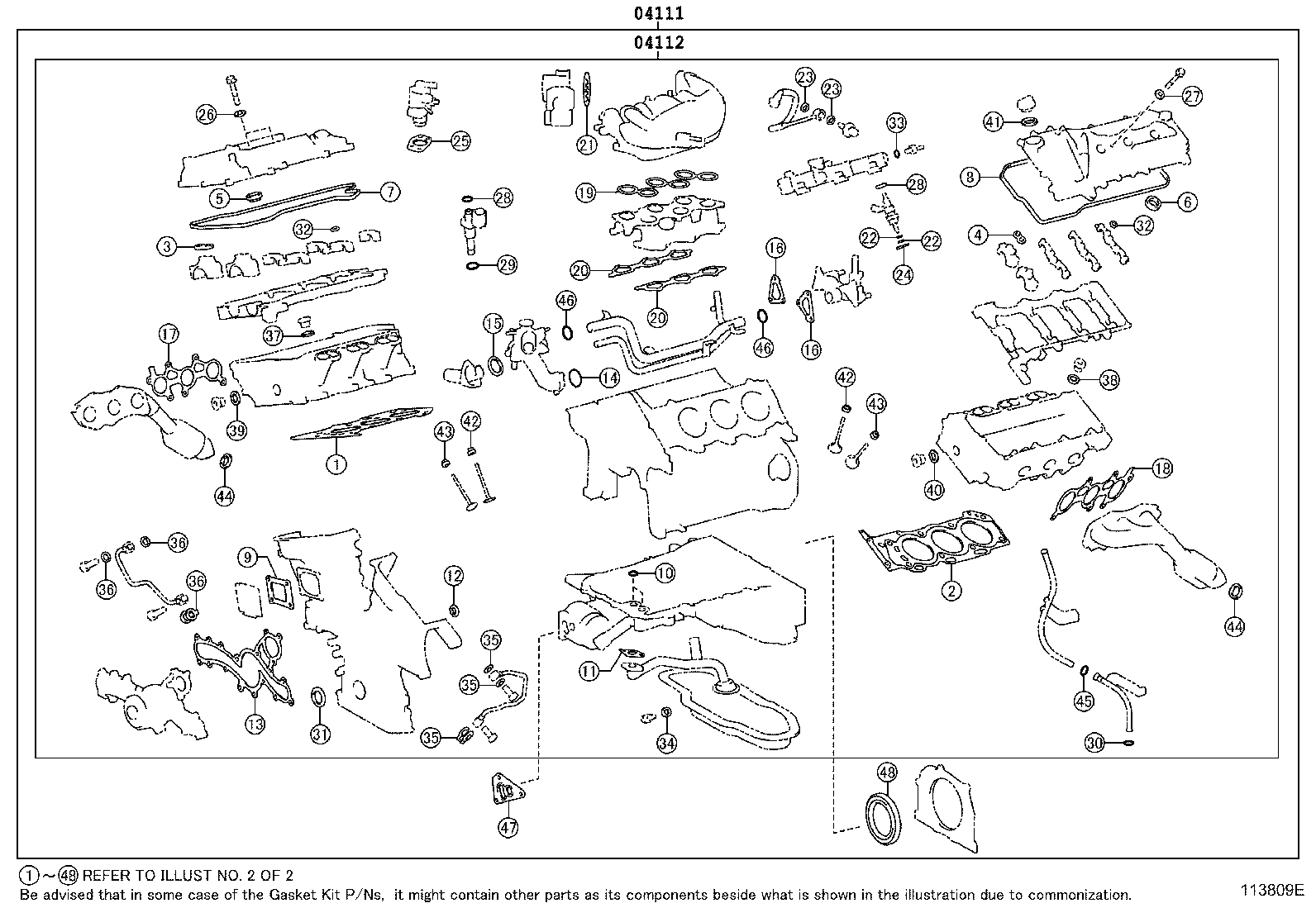

Figure 113566C 113566C 2005-01 → 2006-07 Figure 11B977 11B977 2005-01 → 2006-07 Figure 113809E 113809E 2006-07 → — Figure 11B979 11B979 2006-07 → — Figure 113530A 113530A 2005-01 → 2007-09 Figure 11B973 11B973 2005-01 → 2007-09 Figure 115056C 115056C 2007-09 → — Figure 11B975 11B975 2007-09 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
